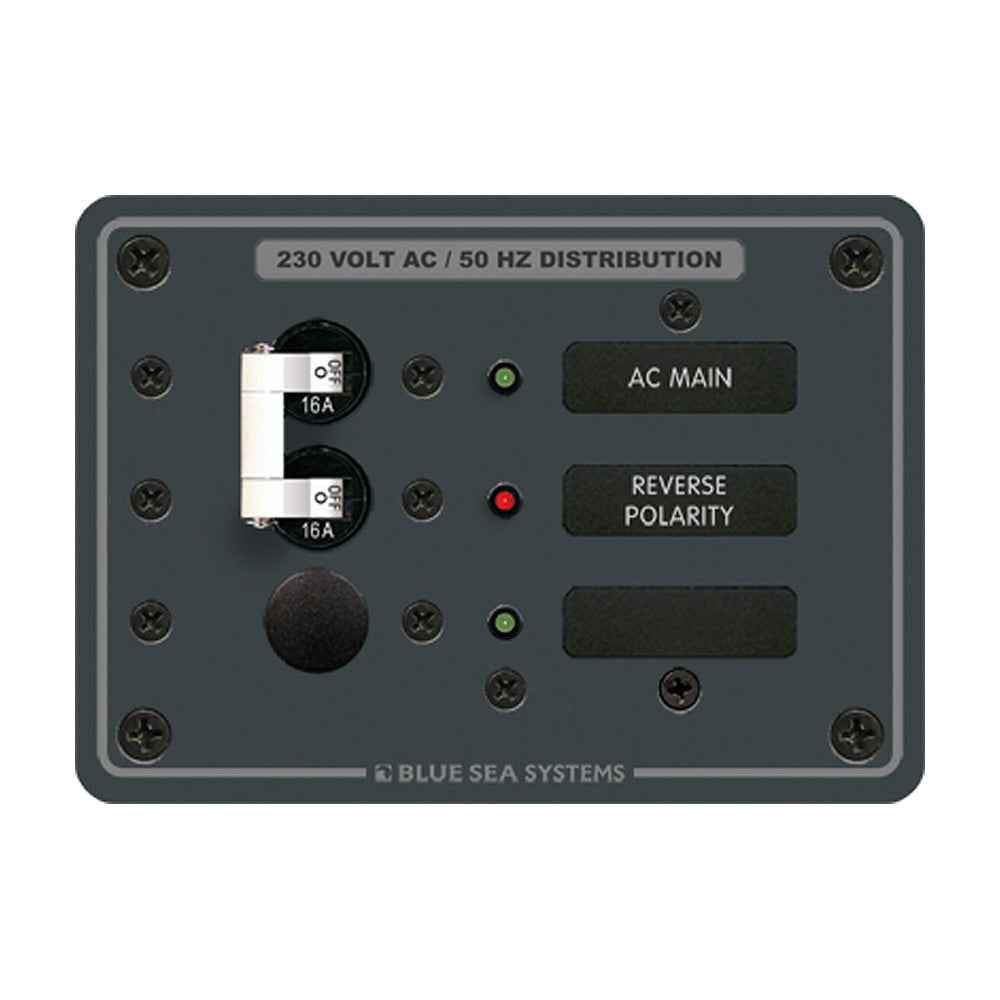

Blue Sea Systems 8129 230V AC Main + Branch A-Series Toggle Circuit Breaker Panel

• 230V

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8129 AC Main + Branch A-Series Toggle Circuit Breaker Panel provides reliable circuit protection and convenient control for 230V AC electrical systems. This pre-wired panel includes one installed 16-amp double-pole circuit breaker and features white toggle switches for clear, straightforward operation in marine and other demanding applications.

Designed for efficient installation, the panel includes hot, neutral, and safety-ground buses that are fully installed and pre-wired. Red reverse-polarity indication and illuminated “ON” LEDs help users monitor system status, while backlit circuit-label positions make circuit identification easier in low-light conditions. The panel supports a maximum amperage of 50 amps and includes a set of 30 common large-format labels, with more than 500 individual label options available for customized circuit identification.

Built from heavy 1/8-inch 5052 aluminum alloy, the Blue Sea Systems 8129 is protected with MIL-C-5541C or equivalent immersion undercoating for long-term corrosion resistance. Its two-part polyurethane slate-gray finish provides a durable, professional appearance. Industry-standard panel sizing, countersunk mounting holes, detailed installation instructions, and a cutout template simplify installation. Refer to the included documentation for application, wiring, and installation requirements. This product includes a California Proposition 65 warning regarding exposure to di(2-ethylhexyl)phthalate (DEHP). For more information, visit P65Warnings.ca.gov.

Features:

• 230V AC operation
• One installed 16-amp double-pole circuit breaker
• White toggle switches
• Red reverse-polarity indicating LED
• Fully pre-wired hot, neutral, and safety-ground buses
• Backlit circuit-label positions
• Illuminated “ON” indicators in all circuit positions
• Maximum panel amperage of 50 amps
• MIL-C-5541C or equivalent immersion undercoating
• Two-part polyurethane slate-gray finish
• Heavy 1/8-inch 5052 aluminum alloy construction
• Industry-standard panel height and width
• Countersunk mounting holes
• Installation instructions and cutout template included
• Includes 30 common large-format labels
• More than 500 individual labels available
