SKU:14578

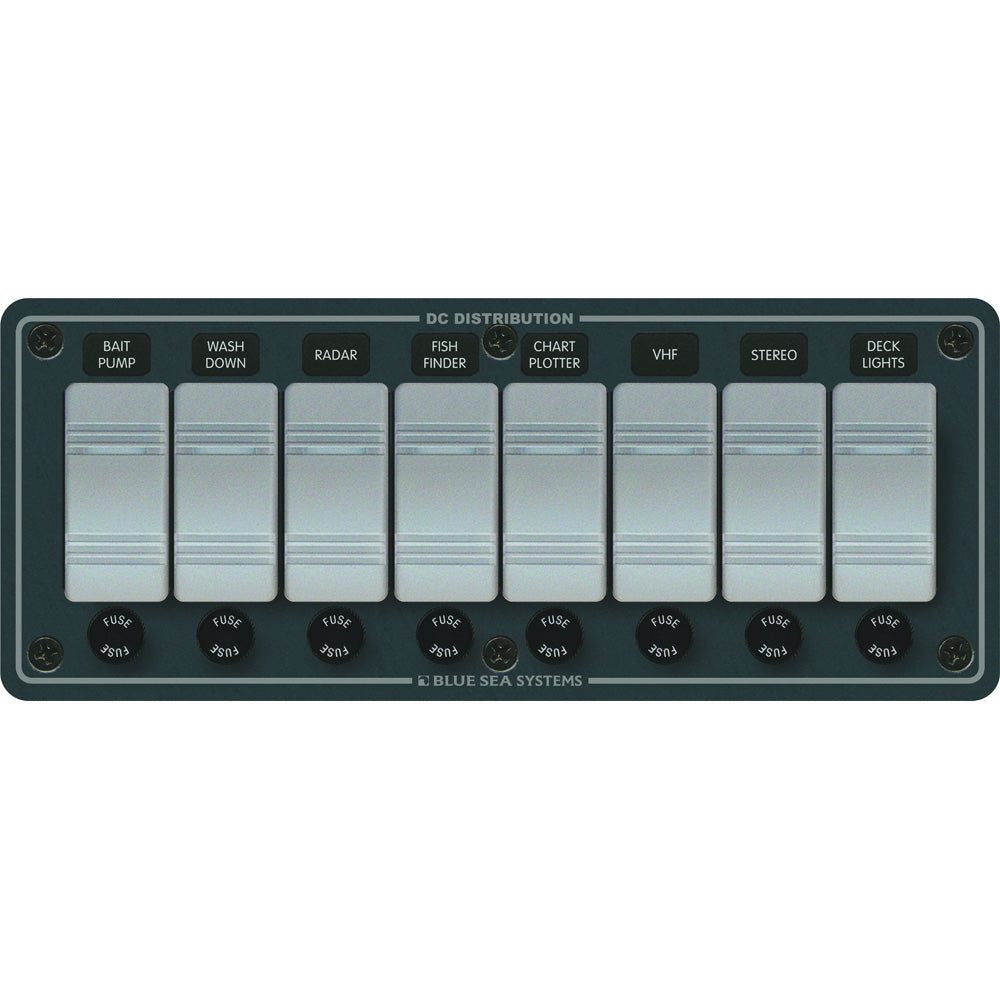

Blue Sea Systems 8261 Waterproof 8-Position Panel with Contura Switches and Slate Grey Finish

Blue Sea Systems 8261 Waterproof 8-Position Panel with Contura Switches and Slate Grey Finish

Regular price $205.99 USD
Sale price $205.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.

8261 Waterproof Panel 8 Position - Slate Grey

Features:

  • Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
  • Designed for flybridge and open cockpit applications
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switches
  • Watertight mounting gasket included
  • Countersunk mounting holes throughout
  • Two-part polyurethane slate gray finish
  • Industry standard height and width
  • Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
  • Completely wired and ready to install

Specifications:

  • Weatherproof: Water Resistant
  • Positions: 8
  • Nominal Voltage: 12v / 24v
  • Panel Cumulative Rating: 90A
  • Switch Rating: 20A @ 12v DC / 15A @ 24v DC
  • Height: 3.75"
  • Width: 9.37"
  • Depth: 3"

Included:

  • (8) 5021 Panel Mount AGC/MDL Fuse Holder
  • (1) 8214 Black 60 Label Set
  • (8) 8230 Contura Switch SPST Gray - Off-On

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8261 waterproof panel is engineered for reliable performance in above deck marine applications such as flybridges and open cockpits. Constructed with industry-standard dimensions, this panel features eight switch positions equipped with ON-OFF Contura switches that include embedded LED indicators for clear status visibility. Its two-part polyurethane slate gray finish offers durability and corrosion resistance, making it suitable for harsh marine environments. The panel is fully wired and ready for installation, with countersunk mounting holes and a waterproof gasket included to ensure a secure, watertight fit. Designed to withstand common water exposures like salt spray, rain, hose washdowns, and brief immersions, the panel provides dependable operation in challenging conditions. It is rated for a total capacity of 90 amps with switch ratings of 20 amps at 12 volts DC and 15 amps at 24 volts DC, supporting various electrical setups with ease. The panel's compact height of 3.75 inches and width of 9.37 inches make it ideal for tight spaces on boats without compromising functionality. Included accessories comprise eight 5021 fuse holders, a set of black labels, and eight Gray Contura switches, making installation straightforward. Certified for marine use, the panel is treated with Mil-Spec chemical immersion protection against corrosion, ensuring longevity and consistent performance over time. This unit is an excellent choice for boat owners seeking a durable, easy-to-install panel that combines industry-standard sizing, water resistance, and advanced features for demanding marine environments.

Features:

  • Waterproof design withstands salt spray, rain, hose washdowns, and brief immersions
  • Suitable for flybridge and open cockpit applications
  • Includes ON-OFF Contura switches with embedded LEDs for clear indication
  • Watertight mounting gasket ensures secure installation
  • Countersunk mounting holes facilitate easy installation
  • Durable two-part polyurethane slate gray finish resists corrosion
  • Industry standard height and width for compatibility
  • Chemical-treated for corrosion resistance via Mil-Spec immersion process
  • Completely wired and ready to install for convenience

Only 4 piece in stock!
