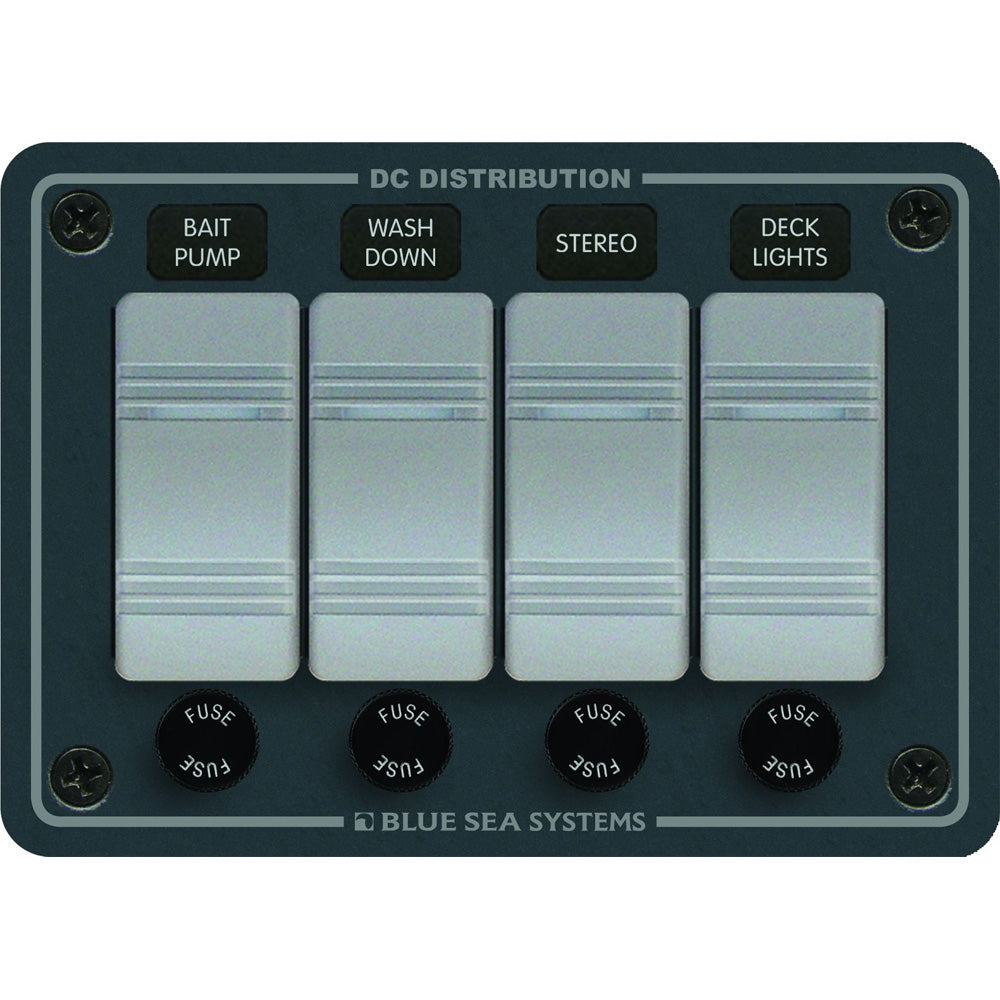

Blue Sea Systems 8262 Waterproof 4-Position Panel with Contura Switches and Slate Grey Finish

8262 Waterproof Panel 4 Position - Slate Grey

Features:

• Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
• Designed for flybridge and open cockpit applications
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switches
• Watertight mounting gasket included
• Countersunk mounting holes throughout
• Two-part polyurethane slate gray finish
• Industry standard height and width
• Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
• Completely wired and ready to install

Specifications:

• Weatherproof: Water Resistant
• Positions: 4
• Nominal Voltage: 12v / 24v
• Panel Cumulative Rating: 45A
• Switch Rating: 20A @ 12v DC / 15A @ 24v DC
• Height: 3.75"
• Width: 5.25"
• Depth: 3"

Included:

• (4) 5021 Panel Mount AGC/MDL Fuse Holder
• (1) 8214 Black 60 Label Set
• (4) 8230 Contura Switch SPST Gray - Off-On

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8262 Waterproof Panel is designed for reliable performance in demanding marine environments. Built with a durable two-part polyurethane slate gray finish, this panel withstands typical water exposures encountered above deck, including salt spray, rain, hose washdowns, and brief immersions. Its industry-standard height and width make it a versatile addition to flybridge and open cockpit applications, providing a secure and weatherproof solution for your electrical needs. The panel features four ON-OFF Contura switches with embedded LEDs for clear power indication and countersunk mounting holes for easy installation. It comes fully wired and ready to install, ensuring a straightforward setup process. The waterproof mounting gasket included guarantees a tight seal against moisture and water ingress, maintaining the integrity of your electrical system. The panel's design incorporates Mil-Spec chemical treatment on all surfaces, providing corrosion resistance even in harsh conditions. With a 45A cumulative rating and 20A switch rating at 12V DC (15A at 24V DC), this panel is suitable for a variety of 12V and 24V systems. The included accessories consist of four fuse holders, a set of black labels, and four gray switch covers, completing a comprehensive package for your installation needs. Whether powering navigation lights, bilge pumps, or other essential systems, the Blue Sea 8262 panel offers durability, ease of use, and peace of mind for marine electrical setups.

Features:

• Will withstand water exposures typical in above-deck applications such as salt spray, rain, hose washdowns, and brief immersions

• Designed specifically for flybridge and open cockpit use

• Includes ON-OFF Contura switches with embedded LEDs for easy status monitoring

• Watertight mounting gasket ensures a secure, moisture-resistant installation

• Countersunk mounting holes facilitate flush installation

• Finished with industry-standard height and width, compatible with various marine setups

• Protected with Mil-Spec chemical treatment to prevent corrosion

• Fully wired and ready for installation

• Suitable for 12V and 24V electrical systems with a total capacity of 45A
