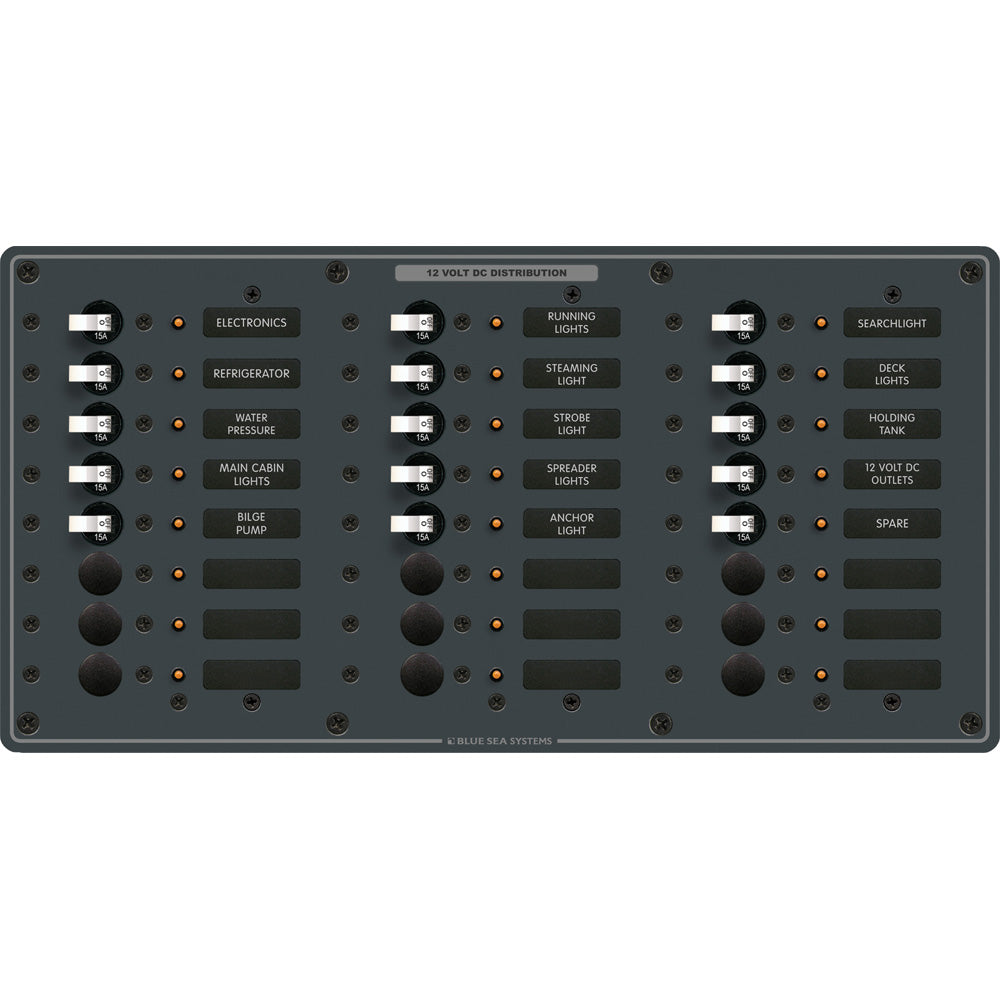

Blue Sea Systems 8264 Traditional Metal DC Panel with 24 Positions for 12V/24V Systems

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Positions: 24

• Nominal Voltage: 12 VDC/24 VDC

• Maximum Amperage: 100A per bus

• Height: 7.50" (190.5 mm)

• Width: 14.75" (374.65 mm)

• Weight: 7.45lb. (3.38 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8264 Traditional Metal DC Panel provides a reliable and efficient power management solution for 12V and 24V DC systems. Designed with convenience in mind, this panel features 24 pre-wired positive, negative, and grounding buses, allowing for straightforward installation and maintenance. The inclusion of analog meters with owner-upgradable options to 24 volts ensures versatility across various electrical setups. All circuit label positions are backlit on standard panels, eliminating the need for additional kits, and each circuit position is equipped with 'ON' indicator LEDs for quick status recognition. The panel's compact dimensions make it suitable for a variety of applications, providing a maximum continuous current of 100 amps per bus for dependable power distribution. An optional toggle switch allows mounting up to three battery banks, enhancing system flexibility. Crafted from durable metal, the panel measures approximately 14.75 inches wide by 7.5 inches high, weighing about 7.45 pounds, making it sturdy yet manageable for installation in marine, RV, or industrial environments. This product is compliant with safety standards but contains chemicals like DEHP, which are recognized by California for potential health risks; please review the safety warnings at P65Warnings.ca.gov. For detailed installation guidance and maintenance instructions, refer to the owner’s manual available at this link.

Features:

• All positive, negative, and grounding buses installed and fully pre-wired

• Includes toggle switch for mounting up to 3 battery banks (for panels with meters)

• Analog meters are owner upgradable to 24 volts with compatible modules (8240 or 8243)

• Backlit circuit label positions for easy identification without additional kits

• 'ON' indicating LEDs installed in all circuit positions for quick status check
