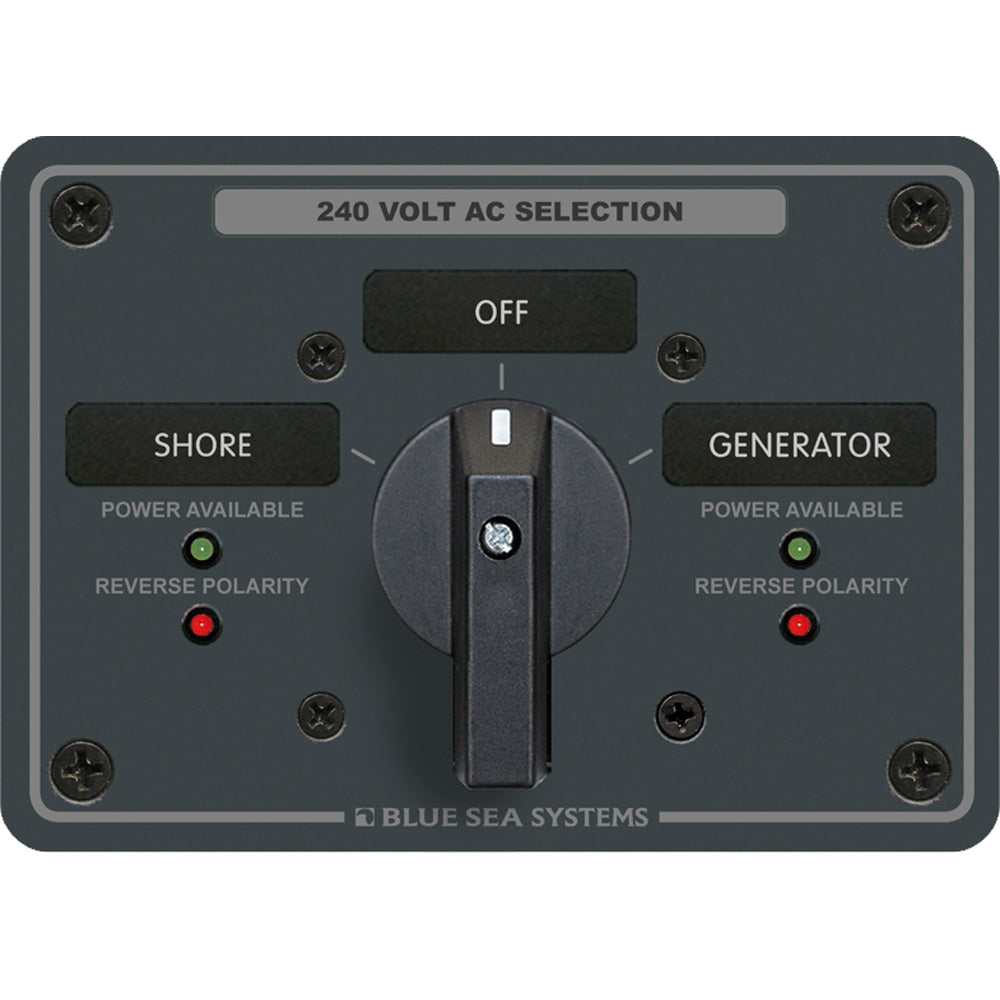

Blue Sea Systems 8363 AC Rotary Switch Panel - 65 Amp, 3 Pole, 2 Positions + OFF

AC Rotary Switch Panel 65 Ampere 2 positions + OFF, 3 Pole

Poles: 3

Voltage: 120/240v

Amperage: 65

Positions: 2 + OFF

• Switches 3 - 230 Volt AC sources
• Includes 9019 heavy duty industrial rated switch
• Two-part polyurethane slate gray finish
• Heavy 1/8" aluminum 5052 alloy
• Red reverse polarity LED indicators
• Green power available LED indicators
• Compact solution when circuit protection is provided elsewhere



WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8363 AC Rotary Switch Panel offers a reliable solution for managing multiple power sources in industrial or marine applications. Designed with durability in mind, this switch panel features a heavy-duty construction utilizing 1/8-inch thick aluminum 5052 alloy with a two-part polyurethane slate gray finish, ensuring resistance to harsh environments. It is rated for 120/240V AC and can handle up to 65 amperes, making it suitable for high-current switching requirements. The switch panel includes a heavy-duty industrial rated switch, model 9019, which guarantees long-lasting performance. This panel allows for switching between three AC sources, with two positions plus an off setting, providing flexible power management. Red reverse polarity LED indicators and green power available LED indicators help users quickly assess system status and ensure safe operation. Compact in design, it is an ideal solution when circuit protection is managed separately, reducing installation space requirements and simplifying system integration. The panel’s design supports easy installation and reliable operation in demanding environments, making it suitable for marine vessels, RVs, or industrial equipment where space and durability are priorities.

Features:

• Poles: 3, supporting switching of three separate AC sources

• Voltage: 120/240 volts AC compatible with standard power systems

• Amperage: Designed to handle up to 65 amperes for high-current applications

• Positions: 2 switching positions plus an off setting for versatile power control

• Heavy-duty switch: Includes the industrial-rated 9019 switch for durability

• Construction: Made from 1/8" aluminum 5052 alloy with a polyurethane slate gray finish

• Indicators: Red reverse polarity LED and green power available LED for system status

• Compact design: Suitable for integration where circuit protection is provided separately
