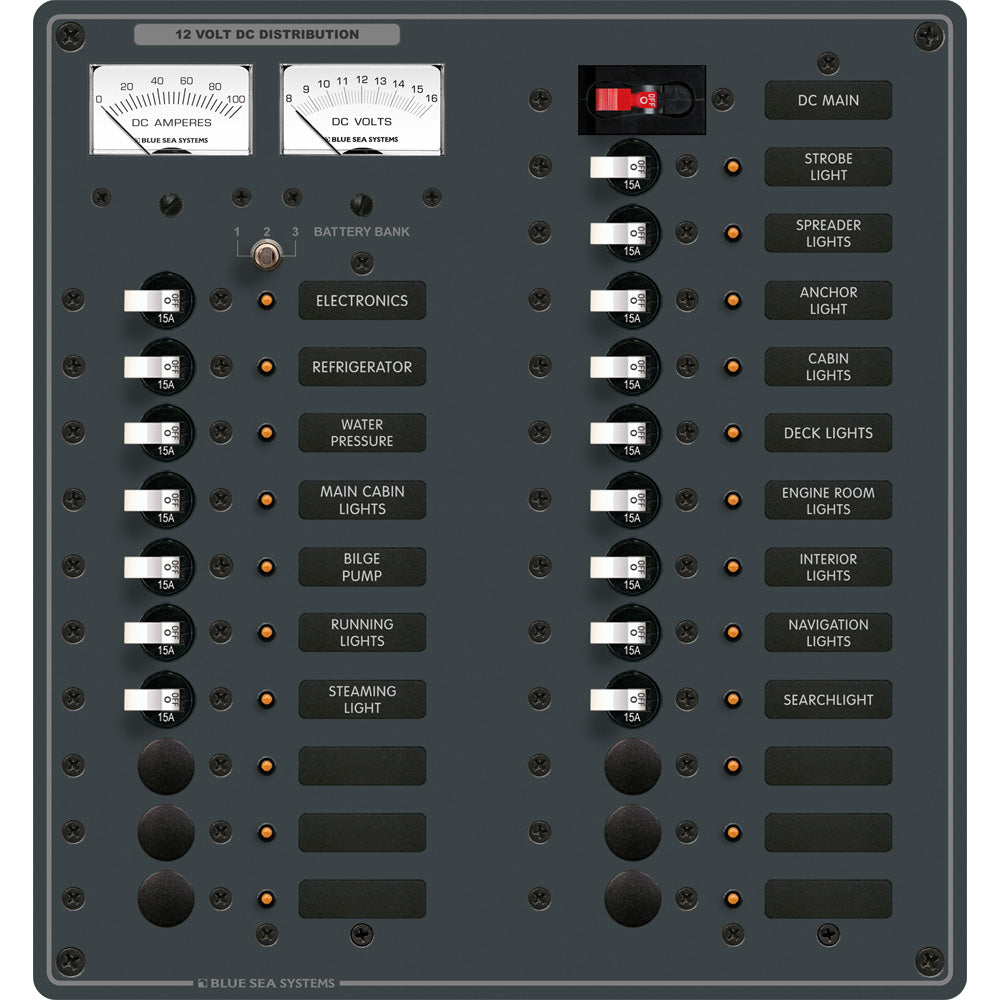

Blue Sea Systems 8380 DC Main Panel with 22 Positions and Battery Monitoring

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8380 DC Main Panel is a robust and versatile electrical distribution solution designed for marine, RV, and industrial applications. Constructed from heavy-duty 1/8-inch thick aluminum alloy with a durable polyurethane slate gray finish, this panel offers industry-standard height and width to ensure seamless installation in various settings. It features a main 100A C-Series circuit breaker along with sixteen 15A single-pole circuit breakers, providing comprehensive power management for multiple circuits. The panel is fully pre-wired with positive, negative, and grounding buses installed for quick setup and reliable operation. Included are integrated analog meters—a DC micro voltmeter and a micro ammeter—that are user-upgradable to 24V DC versions, offering flexibility to adapt to evolving power needs. Designed with convenience in mind, the panel features backlit circuit label positions, illuminated “ON” LEDs for each circuit, and a toggle switch capable of mounting up to three battery banks, simplifying battery management and system monitoring.

Features:

• Main and 22 circuit positions for comprehensive power distribution

• Heavy-duty 1/8-inch aluminum alloy construction with corrosion-resistant coating

• Pre-wired positive, negative, and grounding buses for quick installation

• Includes a 100A C-Series main circuit breaker and sixteen 15A single-pole breakers

• Integrated analog meters: 8028 DC Micro Voltmeter and 8250 DC Micro Ammeter, upgradable to 24V DC meters

• Backlit circuit label positions for clear identification, no additional kit required

• Illuminated 'ON' LEDs at all circuit positions for status indication

• Toggle switch capable of mounting up to three battery banks for efficient battery management

• Industry-standard dimensions with countersunk mounting holes for secure installation

• Detailed installation instructions and cutout template included

• Includes a set of 30 large format panel labels with over 500 available options for customization
