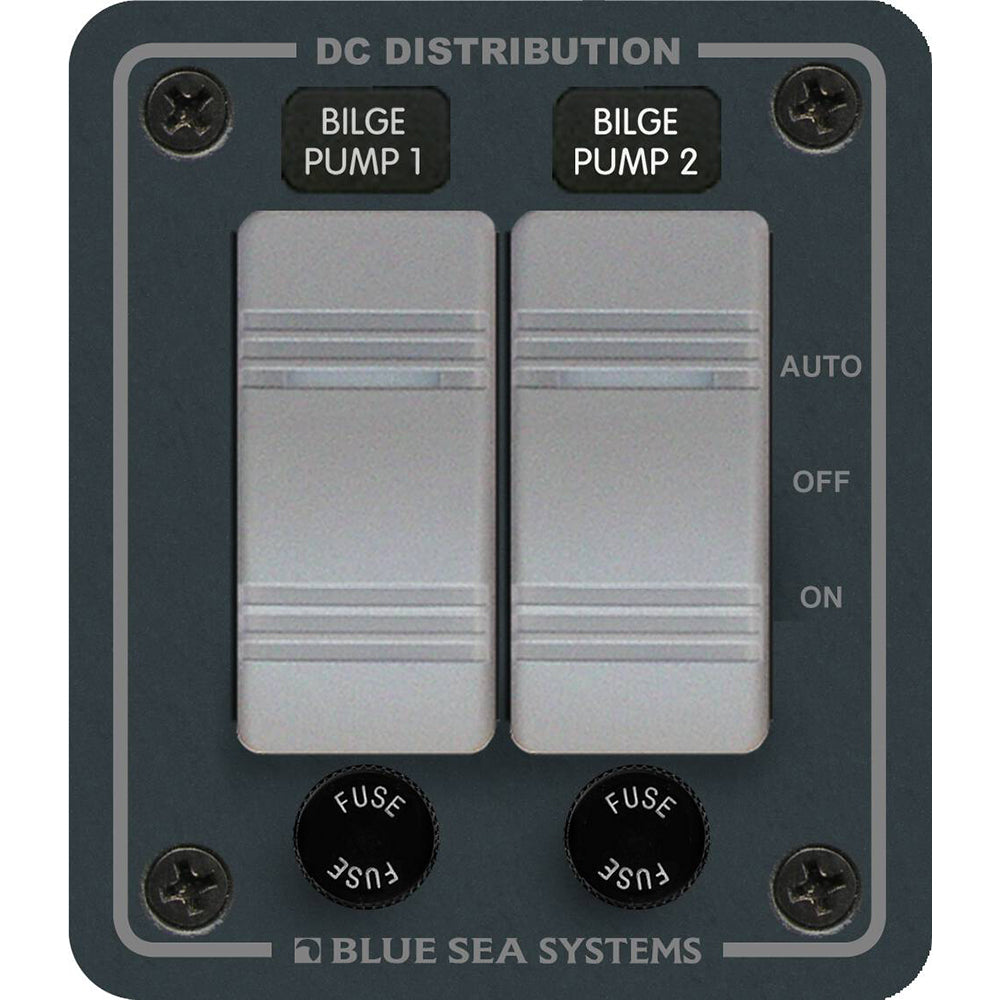

Blue Sea Systems 8664 Contura 2 Bilge Pump Control Panel – Water-Resistant 12/24V DC Marine Switch System

8664 Contura 2 Bilge Pump Control Panel

Blue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp

Features:

• Designed for 12 or 24V DC systems
• ON - OFF - AUTO Contura Switch
• Watertight mounting gasket
• Fuse holders accept commonly available AGC and MDL glass fuses
• "ON LED embedded in switch indicates the pump is running
• Completely wired and ready to install

Specifications:

• Weatherproof - Water Resistant
• No. of Bilge Pumps - two (2)
• Nominal Voltage - 12/24V
• Panel Cumulative Rating - 45A
• Switch Rating: 20A @ 12V DC / 15A @ 24V DC
• Dimensions (H x W x D) - 3.75" x 3.34" x 3"

In the Box:

• Panel Mount AGC/MDL Fuse Holder (P/N 5021) x two (2)
• Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) x two (2)
• Black 60 Label Set (P/N 8214)

*Sold as an Individual

The Blue Sea Systems 8664 Contura 2 Bilge Pump Control Panel offers a reliable and weatherproof solution for managing bilge pumps on boats and marine vessels. Designed to operate seamlessly within 12 or 24-volt DC systems, this control panel features a durable water-resistant construction with a watertight mounting gasket, ensuring robust performance in harsh marine environments. Equipped with a Contura rocker switch that provides ON, OFF, and AUTO modes, the panel allows for easy and intuitive pump control. An embedded LED indicator in the switch visually confirms when the pump is active, enhancing operational safety and awareness. The panel is fully wired and ready for installation, simplifying the setup process for marine electrical systems. It supports two bilge pumps with a cumulative rating of 45 amps, making it suitable for various boat sizes and applications. The fuse holders accept common AGC and MDL glass fuses up to 20 amps, providing added protection for your electrical components. Features include a switch rated at 20 amps at 12 volts DC and 15 amps at 24 volts DC, ensuring sufficient capacity for typical bilge pump loads. Compact and versatile, the panel measures approximately 3.75 inches high, 3.34 inches wide, and 3 inches deep, fitting neatly into confined spaces. The package includes two fuse holders and two Contura III SPDT switches, along with a black label set for customization. Designed to withstand marine conditions, this control panel combines durability, ease of use, and safety, making it an ideal choice for boat owners seeking a dependable bilge pump management solution.

Features:

• Designed for 12 or 24V DC systems for versatile marine use

• Contura rocker switch with ON, OFF, and AUTO modes for intuitive control

• Watertight mounting gasket ensures water resistance in harsh environments

• Fuse holders accept commonly available AGC and MDL glass fuses up to 20 amps

• Embedded LED indicator in the switch signals when the pump is active

• Pre-wired and ready to install for quick setup

• Supports two bilge pumps with a total rating of 45 amps

• Compact dimensions designed for space-saving installation
