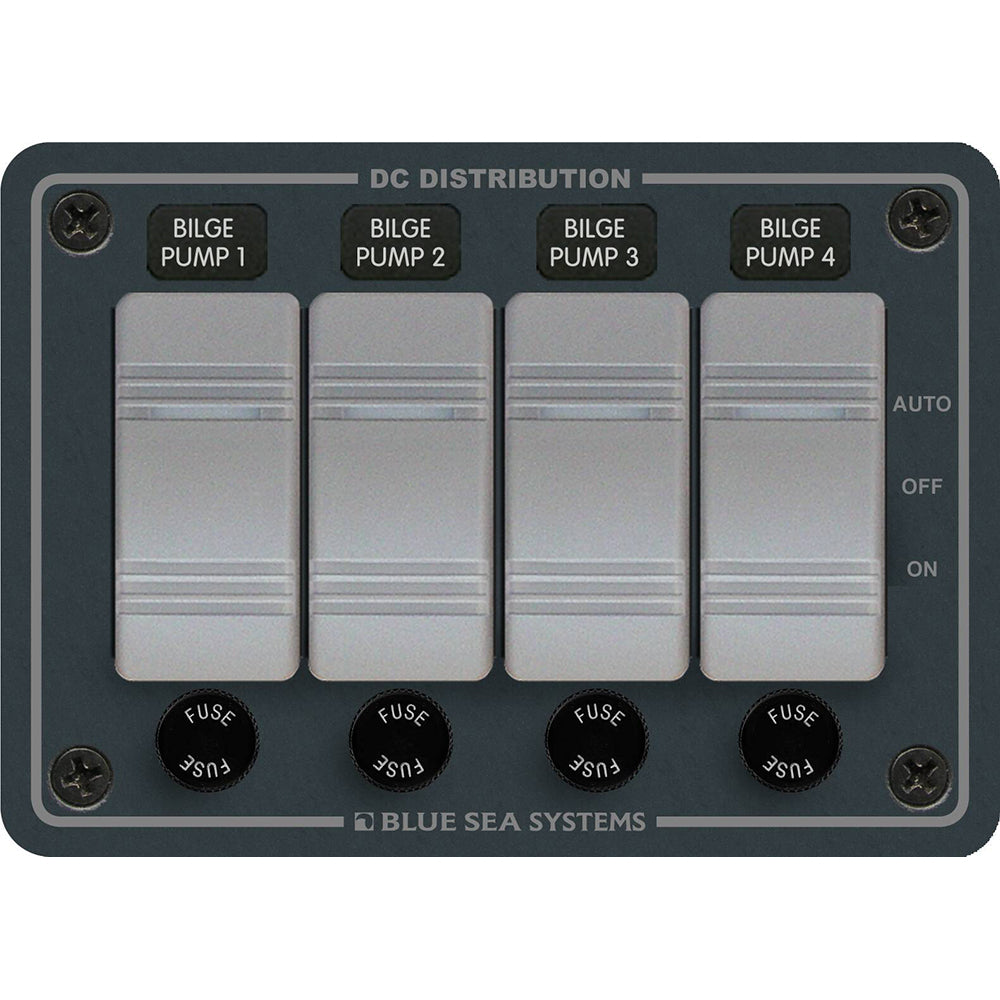

Blue Sea Systems 8666 Contura 4 Bilge Pump Control Panel - Water Resistant 12/24V DC Switch System

8666 Contura 4 Bilge Pump Control Panel

Blue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp

Features:

• Designed for 12 or 24V DC systems
• ON - OFF - AUTO Contura Switch
• Watertight mounting gasket
• Fuse holders accept commonly available AGC and MDL glass fuses
• "ON LED embedded in switch indicates the pump is running
• Completely wired and ready to install

Specifications:

• Weatherproof - Water Resistant
• No. of Bilge Pumps - four (4)
• Nominal Voltage - 12/24V
• Panel Cumulative Rating - 45A
• Switch Rating: 20A @ 12V DC / 15A @ 24V DC
• Dimensions (H x W x D) - 3.75" x 5.25" x 3"

In the Box:

• Panel Mount AGC/MDL Fuse Holder (P/N 5021) x four (4)
• Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) x four (4)
• Black 60 Label Set (P/N 8214)

*Sold as an Individual

The Blue Sea Systems 8666 Contura 4 Bilge Pump Control Panel is a reliable solution designed for marine applications requiring efficient bilge pump management. Crafted with water resistance in mind, this panel features a durable design suitable for 12 or 24V DC systems, ensuring consistent performance in challenging environments. The panel includes four Contura SPDT rocker switches with embedded LED indicators that clearly show when each pump is active, providing quick visual confirmation for operators. Each switch supports a maximum load of 20 amps, and fuse holders are integrated to accept standard AGC and MDL glass fuses up to 20 amps, offering protection against electrical faults. The watertight mounting gasket ensures a secure, sealed installation that prevents water ingress, making it ideal for bilge and marine use. The entire assembly is fully wired and ready for installation, simplifying setup and reducing installation time. With a total panel rating of 45 amps, it safely manages multiple bilge pumps simultaneously, making it suitable for larger vessels or boats with extensive bilge systems. The panel's compact dimensions allow for versatile mounting options without sacrificing functionality. Included in the package are four fuse holders, four Contura switches, and a set of black labels for easy customization. The panel's robust construction and straightforward operation make it a dependable choice for boat owners and marine technicians seeking a high-quality bilge pump control solution.

Features:

• Designed for 12 or 24V DC systems for versatile marine use

• Contura SPDT rocker switches with ON - OFF - AUTO positions for flexible control

• Embedded LED indicators in switches to show pump operation status

• Watertight mounting gasket for secure, water-resistant installation

• Fuse holders compatible with standard AGC and MDL glass fuses up to 20 amps

• Capable of controlling up to four bilge pumps simultaneously

• Total panel circuit rating of 45 amps for reliable power management

• Fully wired and ready to install for quick setup
