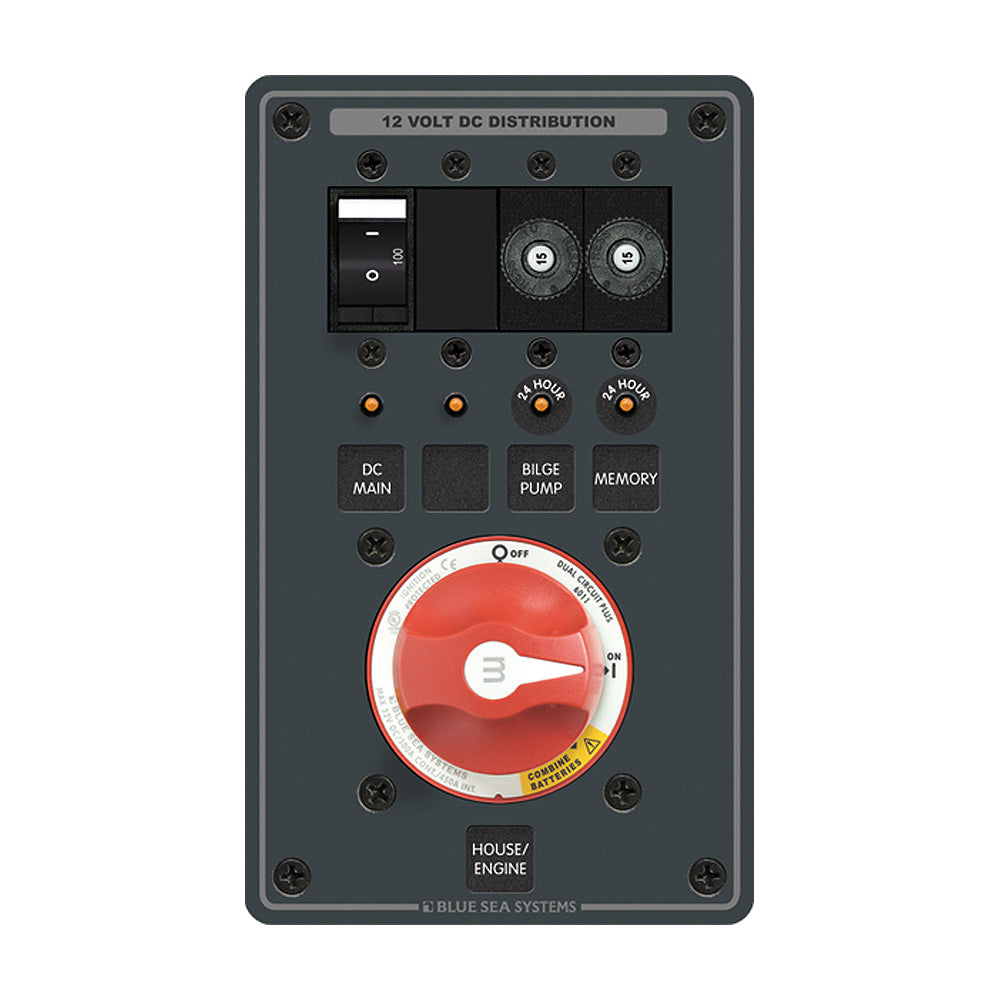

Blue Sea Systems 8686 m-Series Dual Circuit Plus Dual-Battery System for Twin Engines

m-Series Dual Circuit Plus PN 6011


(1) 100A C-Series Flat Rocker Circuit Breaker
(2) 15A Push Button Thermal Circuit Breakers

• Designed for twin engine configurations

• Provides 24 hour circuit protection

• Provides main DC circuit protection in addition to high ampere load protection

• Protects electronics from sags and spikes caused by engine cranking

• Allows emergency cross connect between isolated battery banks

• Isolates the Engine circuit from the House circuit

• Simplifies battery switch operation

• Allows independent battery discharge

• Addition of an Automatic Charging Relay automates charging both batteries

• Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8686 m-Series Dual Circuit Plus is a comprehensive dual-battery management system designed specifically for twin engine configurations. This setup offers robust circuit protection with a 100A C-Series Flat Rocker Circuit Breaker and two 15A Push Button Thermal Circuit Breakers, ensuring reliable operation and safety. The system is engineered to provide 24-hour circuit protection, safeguarding electronics from voltage sags and spikes caused by engine cranking. It also allows for emergency cross-connection between isolated battery banks, simplifying battery management and maintenance. Additionally, the system isolates engine and house circuits, preventing unintended discharge and enhancing operational control. An automatic charging relay is included to automate the charging process for both batteries, further optimizing power management and extending battery life. This system is ideal for boat owners and professionals seeking a reliable, easy-to-operate solution for dual battery setups, particularly in demanding marine environments.

Features:

• Designed for twin engine configurations for optimized power management

• Provides continuous 24-hour circuit protection for electronics and loads

• Main DC circuit protection combined with high-amperage load safeguarding

• Protects sensitive electronics from voltage sags and spikes during engine cranking

• Includes emergency cross connect feature for quick battery bank switching

• Isolates engine circuits from house circuits to prevent unwanted discharge

• Simplifies battery switch operation for ease of use

• Enables independent battery discharge to extend battery life

• Includes an automatic charging relay to automate dual battery charging

• Comes with labeling for easy identification and maintenance
