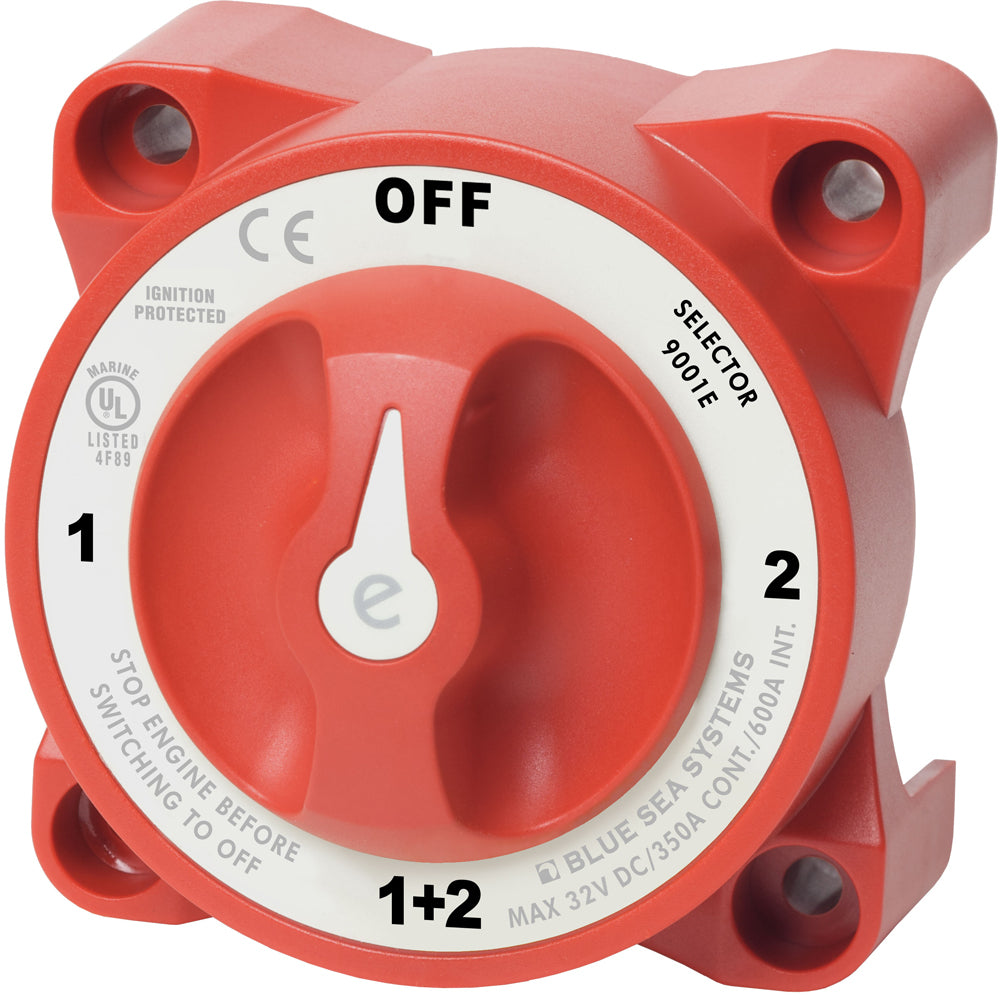

Blue Sea Systems 9001E e-Series Battery Switch Selector for Marine and RV Applications

9001e e-Series Battery Switch Selector

Features:

• Make-before-break contact design allows switching between battery banks without power interruption
• CE Marked
• Ignition protected - Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 9001E e-Series Battery Switch Selector is designed for reliable power management in marine, RV, and other mobile power systems. Featuring a make-before-break contact design, this switch allows seamless switching between battery banks without power interruption, ensuring continuous operation of essential systems. Its CE Marked certification and adherence to the American Boat and Yacht Council (ABYC) standards confirm its suitability for safe installation aboard gasoline-powered boats and similar environments. The switch's case is versatile, supporting both surface and rear panel mounting, providing flexible installation options to suit various vessel layouts.

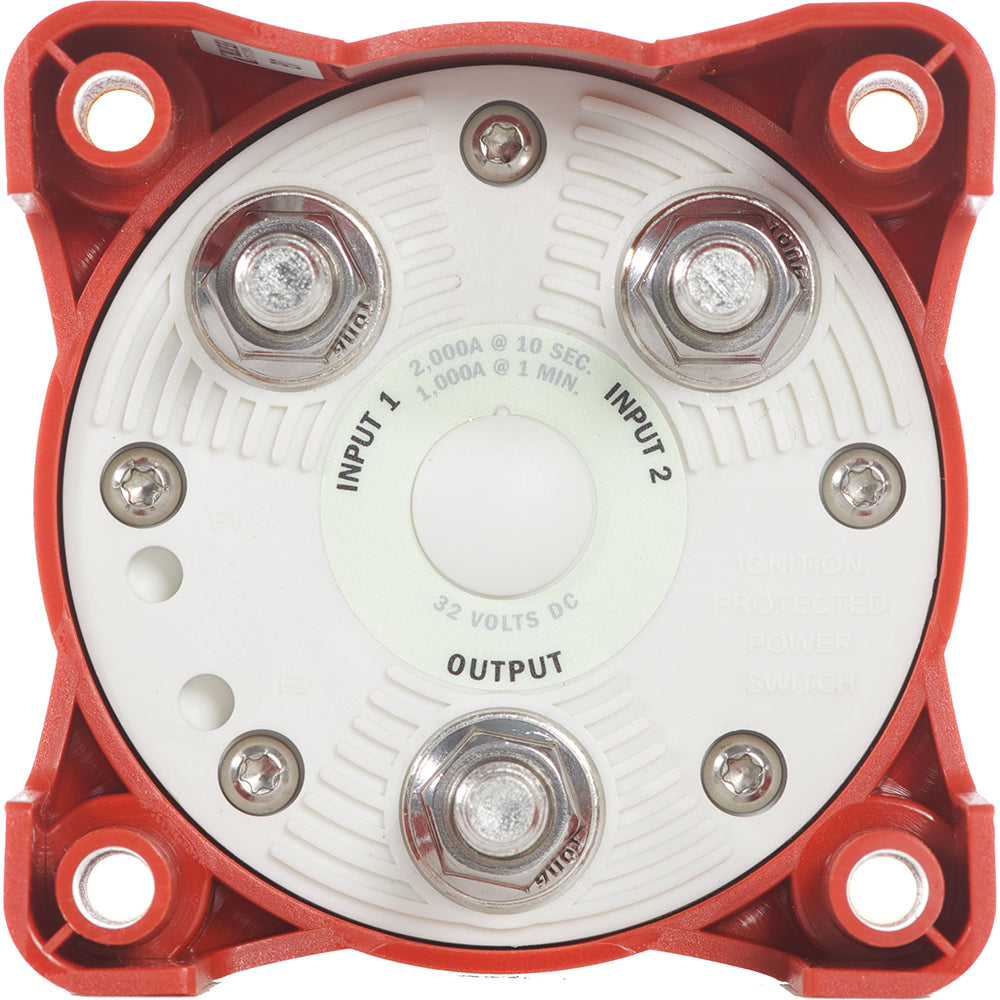

Constructed with durable 3/8"-16 tin-plated copper studs, the battery switch offers maximum conductivity and resistance to corrosion, facilitating secure connections with 3/8" or M10 ring terminals. The 7/8" (22.22mm) stud length accommodates multiple cable terminals, simplifying wiring configurations. Tactile textures on the switch knob provide easy, feel-only indication of the current position, ensuring quick and confident operation even in challenging conditions. This switch's compact yet robust design makes it an essential component for those seeking a reliable and compliant battery management solution.
For detailed installation instructions and safety information, refer to the owner’s manual available at the provided link. The Blue Sea 9001E e-Series Battery Switch Selector combines safety, durability, and ease of use, making it an ideal choice for marine vessels, RVs, and other mobile power systems that require dependable battery switching capabilities.

Features:

• Make-before-break contact design allows switching between battery banks without power interruption

• CE Marked for compliance and safety

• Ignition protected for safe installation aboard gasoline-powered boats

• Supports surface or rear panel mounting for flexible installation

• Meets ABYC requirements for battery switches

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, compatible with 3/8" and M10 ring terminals

• 7/8" (22.22mm) stud length to accept multiple cable terminals

• Tactile textures on knob indicate position by feel only
