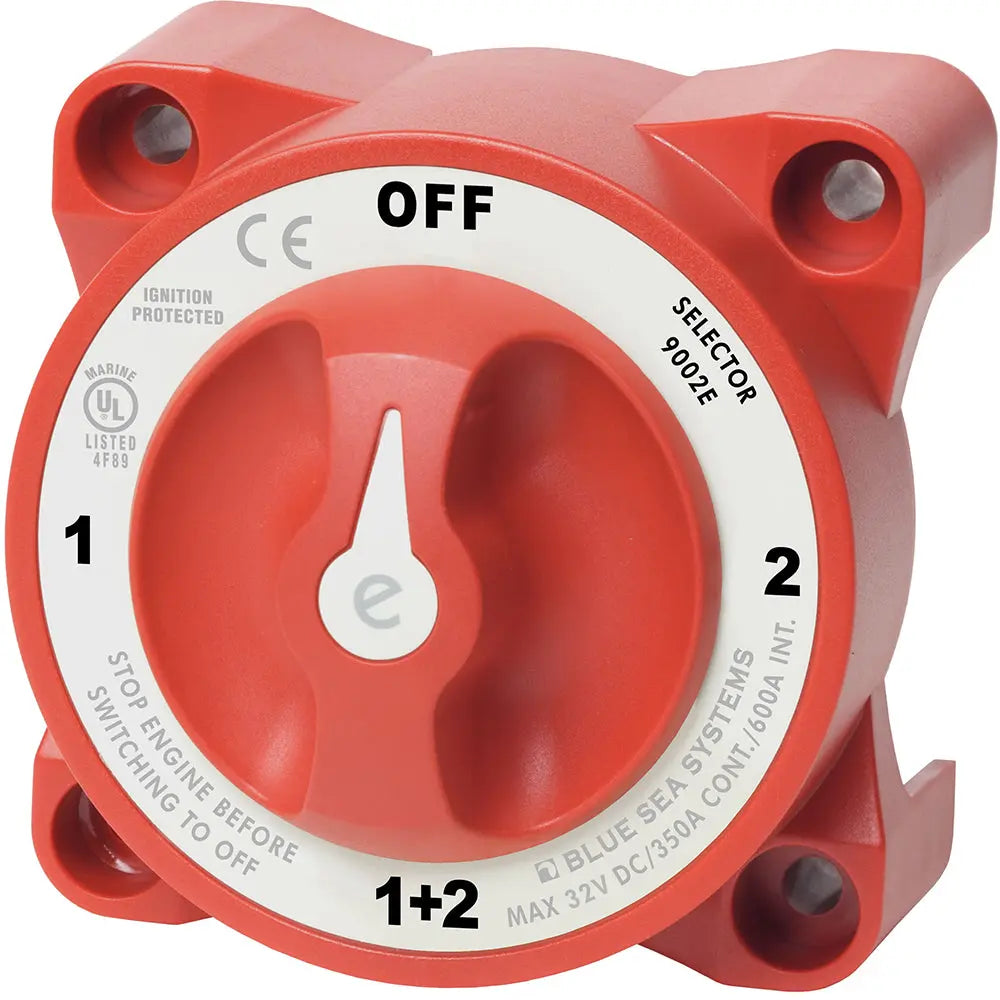

Blue Sea Systems 9002e e-Series Battery Switch Selector with Alternator Field Disconnect

9002e e-Series Battery Switch Selector with Alternator Field Disconnect

Features:

• Switches isolated battery banks to all loads or combines battery banks to all loads
• Includes AFD (Alternator Field Disconnect)
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protectedsafe for installation aboard gasoline powered boats

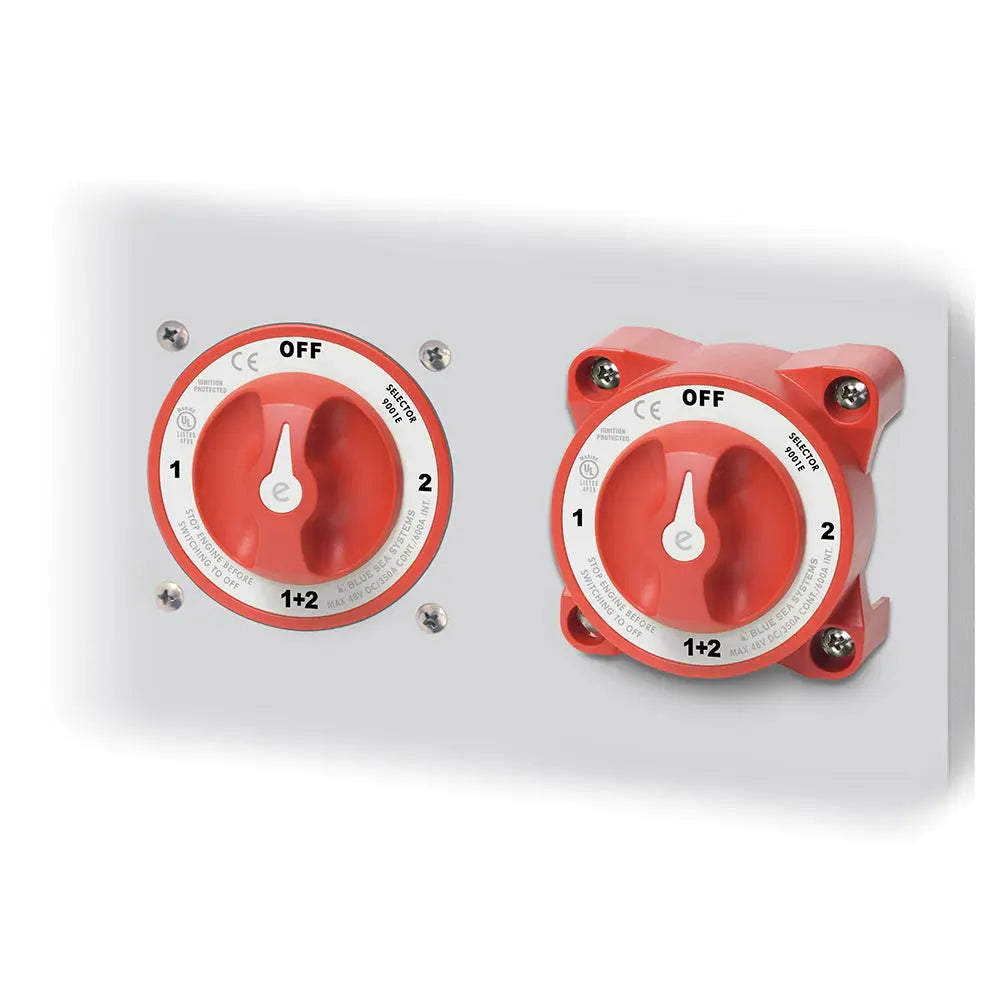

• Case design allows surface or rear panel mounting

Includes:

• AFD (Alternator Field Disconnect)
• CE Marked
• Ignition protected - Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches

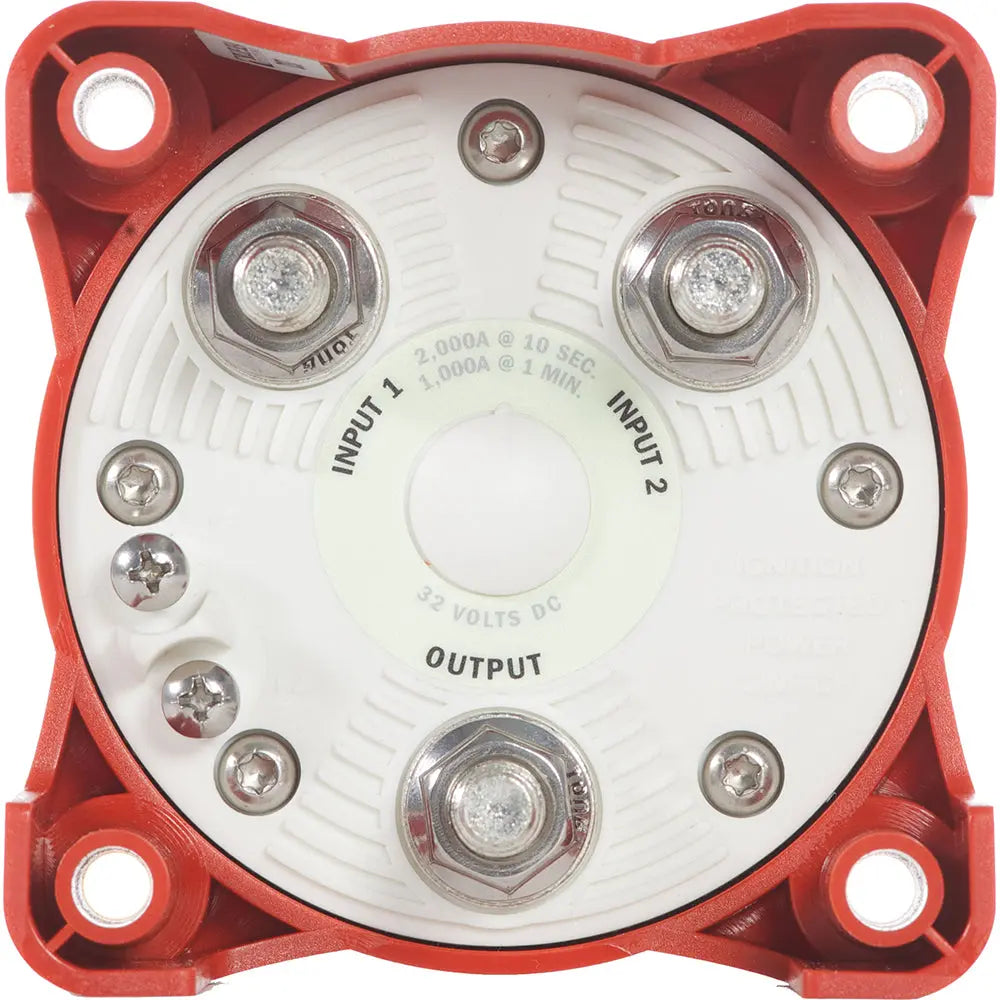

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 9002e e-Series Battery Switch Selector offers reliable and versatile control for marine electrical systems. Designed to manage battery banks efficiently, this switch allows you to isolate or combine battery banks to all loads, providing essential power management for boats. Its make-before-break contact design ensures seamless switching between battery banks without power interruption, which is critical during operational transitions or maintenance. The inclusion of the Alternator Field Disconnect (AFD) enhances system safety by allowing the alternator's field circuit to be disconnected, preventing potential electrical faults. The switch's ignition-protected construction makes it safe for installation aboard gasoline-powered vessels, meeting rigorous safety standards such as those set by the American Boat and Yacht Council (ABYC). The case design supports both surface and rear panel mounting, offering flexible installation options to fit various vessel layouts. Equipped with 3/8"-16 tin-plated copper studs, the switch ensures maximum conductivity and corrosion resistance, compatible with 3/8" and M10 ring terminals. The 7/8" (22.22mm) stud length accommodates multiple cable terminals, simplifying wiring connections. Tactile textures on the switch knob provide feel-only indication of position, allowing for safe and confident operation even in low visibility conditions. This product is CE marked and includes the AFD feature, making it a comprehensive solution for marine battery management. For detailed installation instructions, refer to the owner's manual available online. Built to meet industry standards, the Blue Sea 9002e is an essential component for ensuring reliable power control and safety on your boat.

Features:

• Switches isolated battery banks to all loads or combines battery banks to all loads

• Includes Alternator Field Disconnect (AFD) for enhanced system safety

• Make-before-break contact design allows switching without power interruption

• Ignition protected construction suitable for gasoline-powered boats

• Case design supports surface or rear panel mounting

• Accepts 3/8" and M10 ring terminals for versatile wiring

• Tactile knob textures provide feel-only position indication
