Ignition protected - safe for installation aboard gasoline powered boats
Activated by an ON-OFF switch mounted anywhere
Integrated coil control minimizes heating and amperage draw
450 Amp Class
Designed for 12 or 24 Volt systems
Ignition protected -- safe for installation aboard gasoline-powered boats
Activated by a low amperage ON-OFF switch mounted anywhere
Specifications:
Control Circuit Connection: 20 AWG Tinned Wire
Nominal Voltage: 12V DC / 24V DC
Coil Function: Normally Open
Mounting: #10
Operating Amperage Current: 3.6A when changing state
Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V
Terminal Stud Torque: 90 in-lb (10.17 Nm)
Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size
Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size
Cranking Rating 30 sec: 1,000A / 1000A DC
Contact Form: SPST-NO
Input Voltage: 9-36V DC
Inrush Rating: 0.25 sec (10 repeats): 2000A
Switching Cycles: 1,000,000
Terminal Stud: Serrated Flange Nut
Terminal Stud Length: 0.66 (16.76mm)
Terminal Stud Size: 5/16 (M8)
Weight: 1.00lb (0.45 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

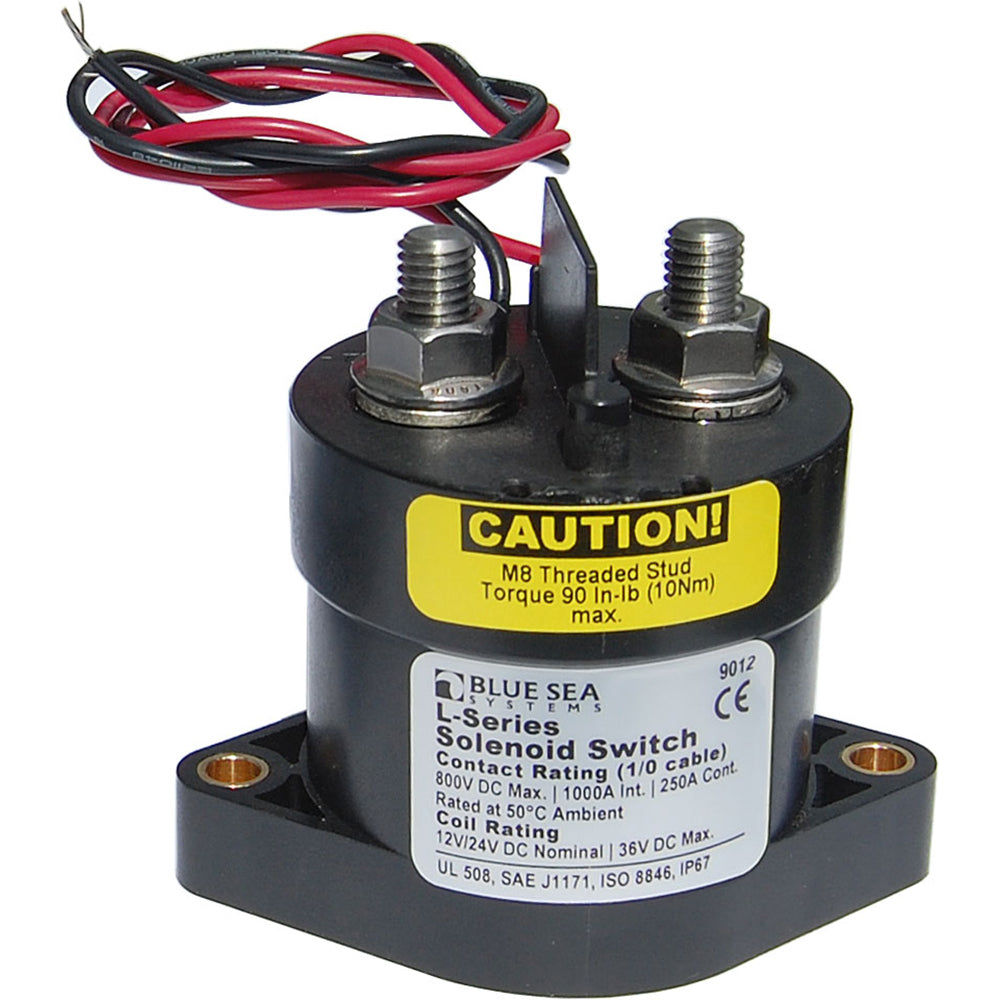

The Blue Sea Systems 9012L solenoid switch is engineered for reliable performance in marine applications, supporting 12 and 24-volt electrical systems. Designed with hermetically sealed contacts and vapor-proof construction, this switch ensures safe and efficient operation even in harsh marine environments. Its ignition-protected design makes it suitable for installation aboard gasoline-powered boats, reducing the risk of sparks or electrical faults. The switch can be activated by an ON-OFF switch mounted remotely, providing flexible control options for your vessel's electrical systems. Integrated coil control minimizes heating and amperage draw, enhancing durability and energy efficiency for long-term use.
This solenoid switch features a SPST-NO contact form with a continuous current rating of 250 amps, capable of handling up to 450 amps with appropriate wire sizing. It supports high inrush currents, with a rating of 2000 amps for 0.25 seconds, and withstands up to 1,000 amps during cranking for 30 seconds, making it suitable for starting large engines or other high-current devices. The device's control circuit connects via 20 AWG tinned wire, and its terminal stud is a M8 size with a serrated flange nut for secure installation. The switch is rated for over one million switching cycles, ensuring long-lasting performance. With a weight of just under half a pound, this relay is a compact yet robust solution for demanding marine electrical needs.
Features:
Hermetically sealed contacts / vapor-proof construction for reliable marine operation
