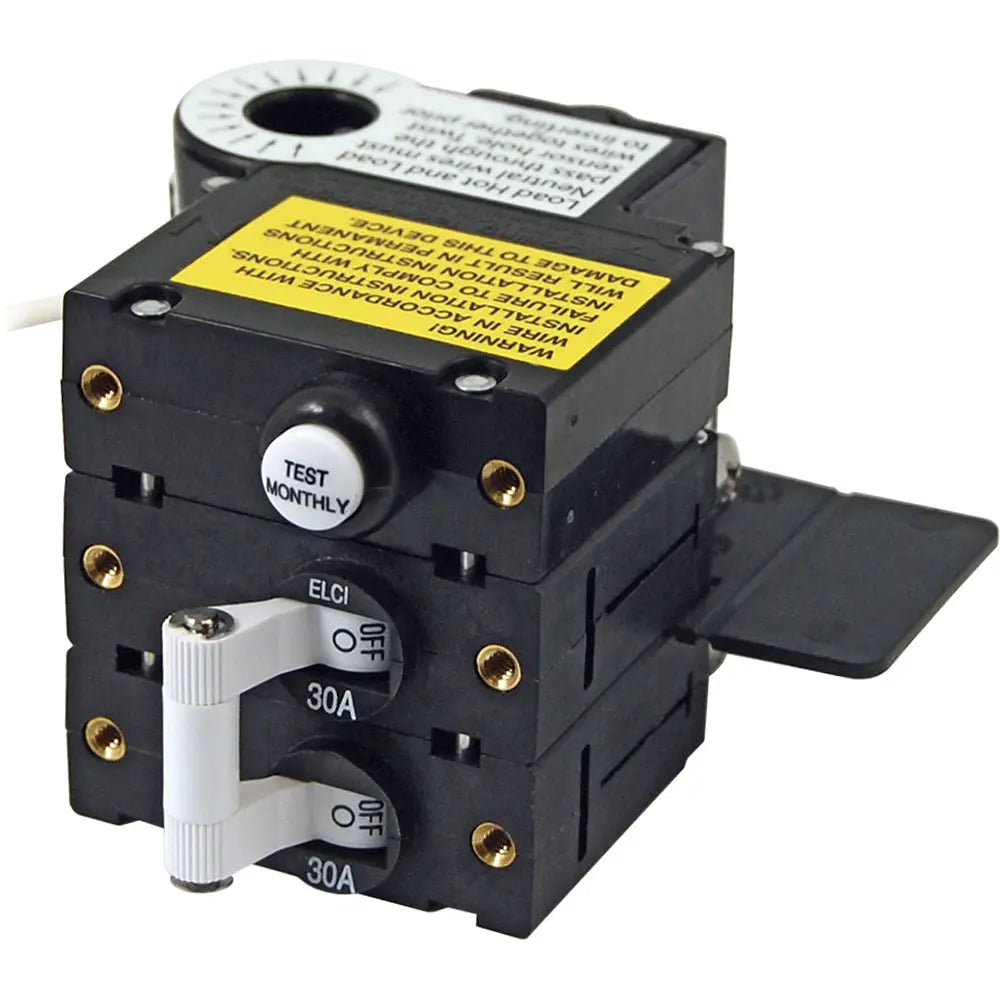

Blue Sea Systems A-Series Double Pole 30A 120V AC ELCI Main Circuit Breaker

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

Features:

• Trips on short circuit, overload, or leakage to ground
• Front panel mountinstalled in a power distribution panel

Specifications:

• Amperage: 30A
• Color: White
• Actuator Style: Toggle
• Poles: 2
• Ignition Protected: Yes
• Max Voltage: 240VAC/120VAC per pole
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Max Operating Temperature: 65 degrees C
• Leakage Trip Amps: 30mA

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems A-Series ELCI Main Circuit Breaker, part number 3106100, is a reliable safety device designed for distribution panels in residential, commercial, and industrial settings. This double pole breaker handles a maximum voltage of 120V AC per pole and features a 30A current rating, making it suitable for protecting circuits against overloads, short circuits, and ground leakage. Its magnetic hydraulic trip mechanism ensures trip-free operation and quick response to fault conditions, enhancing overall electrical safety. The breaker’s white toggle actuator allows for straightforward manual control and reset functions. Its robust construction and ignition protection make it a dependable component for demanding electrical environments. The breaker is rated for operation across a wide temperature range, from -35°C to 65°C, ensuring consistent performance under varying conditions. With an interrupt capacity of 5000A, it provides a high level of fault current protection, safeguarding both personnel and equipment. Easy front panel mounting allows for quick installation within power distribution panels, streamlining maintenance and system upgrades. Designed by Blue Sea Systems, this breaker complies with safety standards and features a leakage trip setting of 30mA, offering additional ground fault protection. This product is suitable for use in a variety of applications requiring dependable circuit interruption and safety features. Please note that this product may contain chemicals known to the State of California to cause reproductive harm, and proper handling is advised. Overall, the Blue Sea Systems A-Series ELCI Main Circuit Breaker offers a combination of safety, reliability, and ease of installation suited for diverse electrical systems.

Features:

• Trips on short circuit, overload, or leakage to ground

• Front panel mount installed in a power distribution panel

• Magnetic hydraulic trip mechanism for trip-free operation

• Handles up to 240VAC/120VAC per pole

• Rated for 30A circuit protection

• Rated for operation from -35°C to 65°C

• High interrupt capacity of 5000A for fault protection

• Leakage trip setting of 30mA for ground fault detection

• Ignition protected design for safety in demanding environments

• Easy toggle actuator for manual operation
