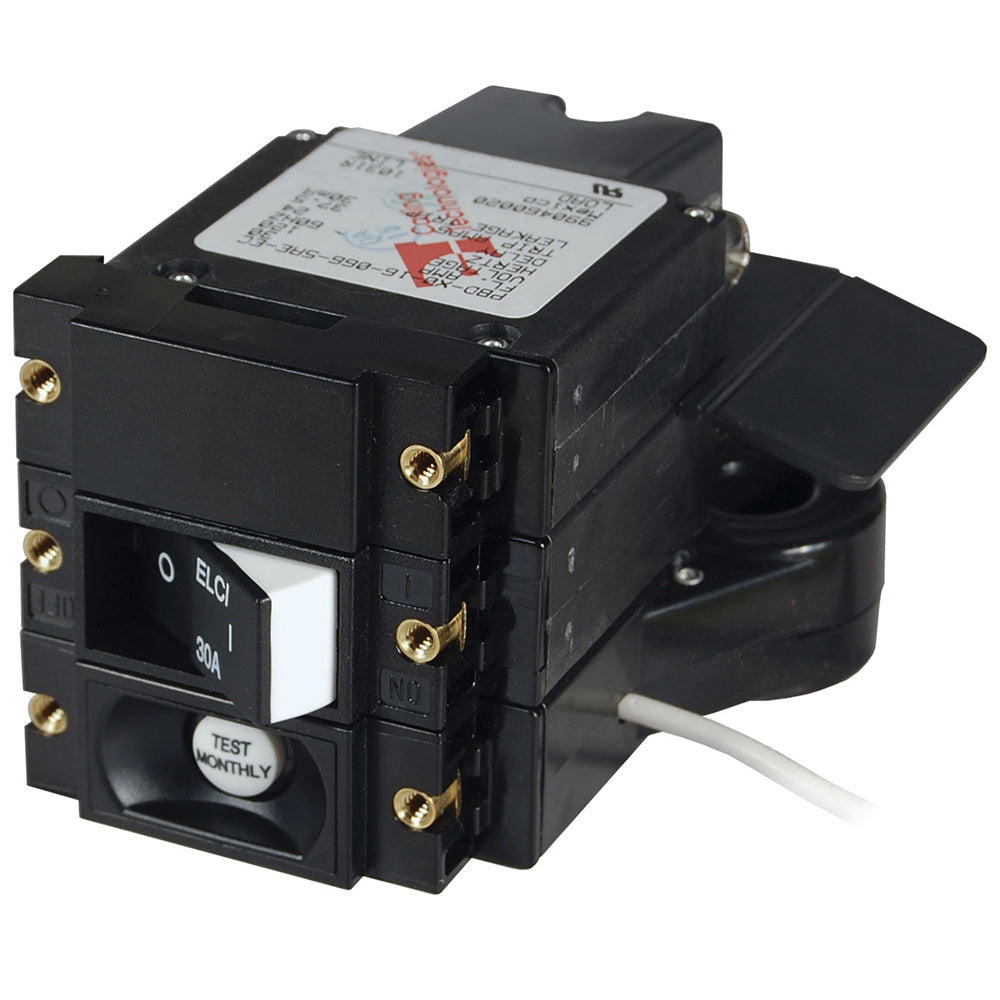

Blue Sea Systems A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A with Flat Rocker Actuator

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker

Features:

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground
• Front panel mountinstalled in a power distribution panel

Specifications:

• Amperage: 30A
• Actuator Style: Flat Rocker
• Poles: 2
• Ignition Protected: Yes
• Max Voltage: 240VAC/120VAC per pole
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Max Operating Temperature: 65 degrees C
• Leakage Trip Amps: 30mA

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems A-Series ELCI Main Circuit Breaker (Part Number 3102100) offers reliable over-current and leakage protection for marine shore power systems. Designed to meet ABYC E-11 standards, this breaker safeguards your vessel against electrical faults by triping on short circuits, overloads, or ground leaks. Its double pole configuration supports 120V AC circuits with a maximum voltage rating of 240VAC per pole, ensuring comprehensive protection for your boat's electrical system. The magnetic hydraulic trip mechanism provides trip-free operation, preventing any bypassing of safety functions in fault conditions. Built with ignition protection in compliance with UL 1500 standards, this breaker is suitable for installation within a power distribution panel using a front panel mount. The flat rocker actuator allows for easy operation, and with an interrupt capacity of 5000A, it offers robust performance under fault conditions. The breaker is rated for a wide ambient temperature range, from -35°C to 65°C, making it suitable for various marine environments. A leakage trip setting of 30mA ensures ground fault detection, adding an extra layer of safety for boat occupants and equipment. Designed for durability and safety, the Blue Sea Systems A-Series ELCI breaker is an essential component for any marine power distribution system, delivering dependable protection and compliance with industry standards.

Features:

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection

• Meets UL 1500 external ignition protection requirements

• Trips on short circuit, overload, or leakage to ground

• Front panel mount installation in a power distribution panel

• Magnetic hydraulic trip mechanism for trip-free operation

• Supports 120V AC circuits with a maximum voltage of 240VAC per pole

• Interrupt capacity of 5000A for high fault current scenarios

• Rated for a wide temperature range from -35°C to 65°C

• Leakage trip threshold of 30mA for ground fault detection
