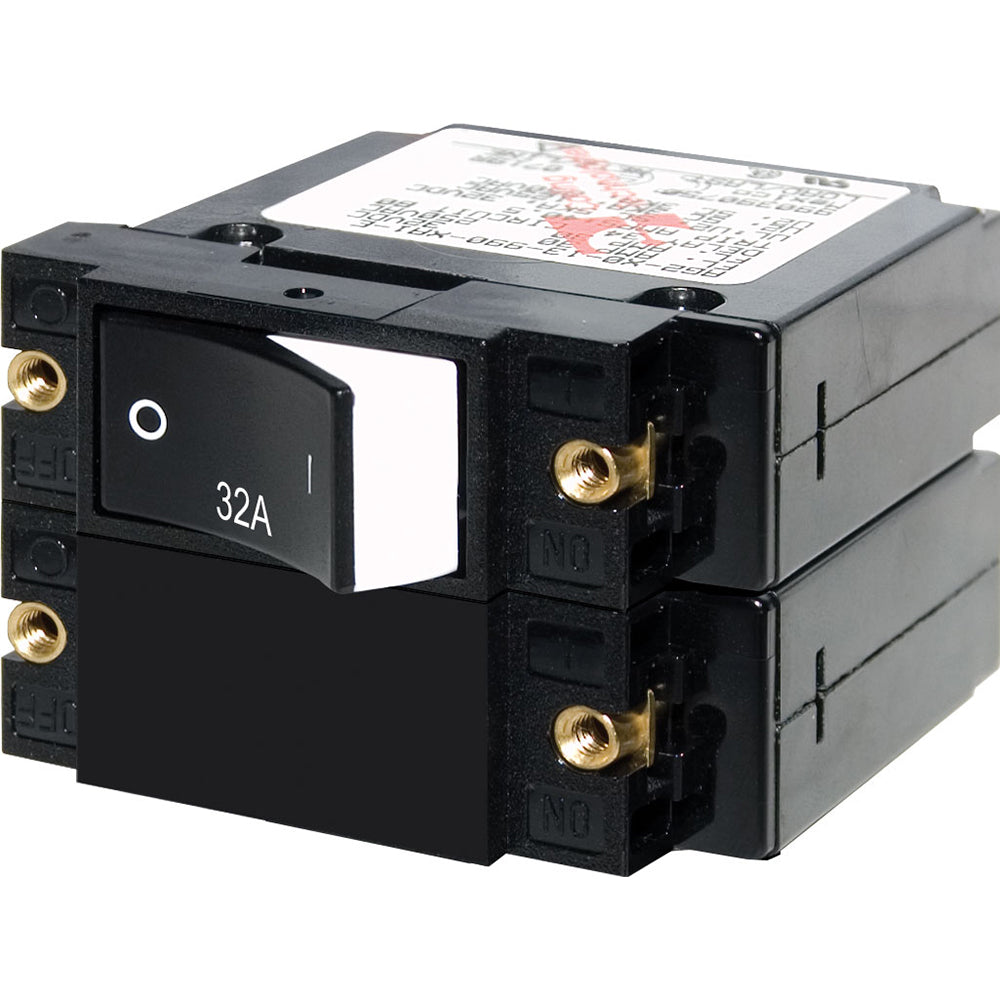

Blue Sea Systems A-Series Raised Rocker Circuit Breaker - Double Pole 32A

A-Series Raised Rocker Circuit Breaker - Double Pole - 32A

Features:

• Color actuator indicates OFF position
• Trip Free design cannot be held ON during a fault current condition
• International ON/OFF symbols support vertical or horizontal mounting

Specifications:

• Amperage: 32A AC / 32A DC
• Actuator Style: Raised Rocker
• Poles: 2
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
• Minimum Operating Temperature: -40 C
• Maximum Operating Temperature: 85 C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque: 14 in-lb (1.58 Nm)
• Switching Cycles: 10000
• Terminal Screw: #10-32 Stainless Steel
• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems Part Number 7575 A-Series Raised Rocker Circuit Breaker is designed for reliable protection in electrical systems requiring a 32A capacity. Its double pole configuration ensures safe and efficient switching for both AC and DC applications, supporting voltages up to 240V AC and 32V DC. The raised rocker actuator provides an intuitive interface, with a color indicator that clearly shows the OFF position for quick status recognition. Its magnetic hydraulic trip-free design prevents the breaker from being held ON during fault conditions, enhancing safety and system protection. This circuit breaker features international ON/OFF symbols that support both vertical and horizontal mounting orientations, making it versatile for various installation setups. The sturdy #6-32 stainless steel mounting screw and #10-32 terminal screw ensure a secure connection, with torque specifications that promote optimal contact integrity. With a high switching cycle tolerance of 10,000 operations and an interrupt capacity of up to 5,000A at 32V DC, this breaker is suitable for demanding electrical environments. Its operating temperature range from -40°C to 85°C allows reliable performance in diverse conditions. The compact weight of approximately 0.38 pounds makes it suitable for space-constrained applications. This circuit breaker is manufactured by Blue Sea Systems, known for high-quality marine and industrial electrical components, ensuring longevity and dependable performance in critical systems. Please note that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which may pose health risks; detailed safety information is available at P65Warnings.ca.gov.

Features:

• Color actuator indicates OFF position for easy status identification

• Trip free design prevents holding the breaker ON during fault conditions

• International ON/OFF symbols support vertical or horizontal mounting

• Supports 32A AC and DC applications up to 240V AC and 32V DC

• Magnetic hydraulic trip mechanism for reliable circuit protection

• High interrupt capacity for handling fault currents up to 5000A at 32V DC

• Durable stainless steel mounting and terminal screws for secure installation

• Switching cycles rated at 10,000 for long-term durability

• Operating temperature range from -40°C to 85°C for versatile use

• Compact design with a weight of approximately 0.38 pounds for space efficiency
