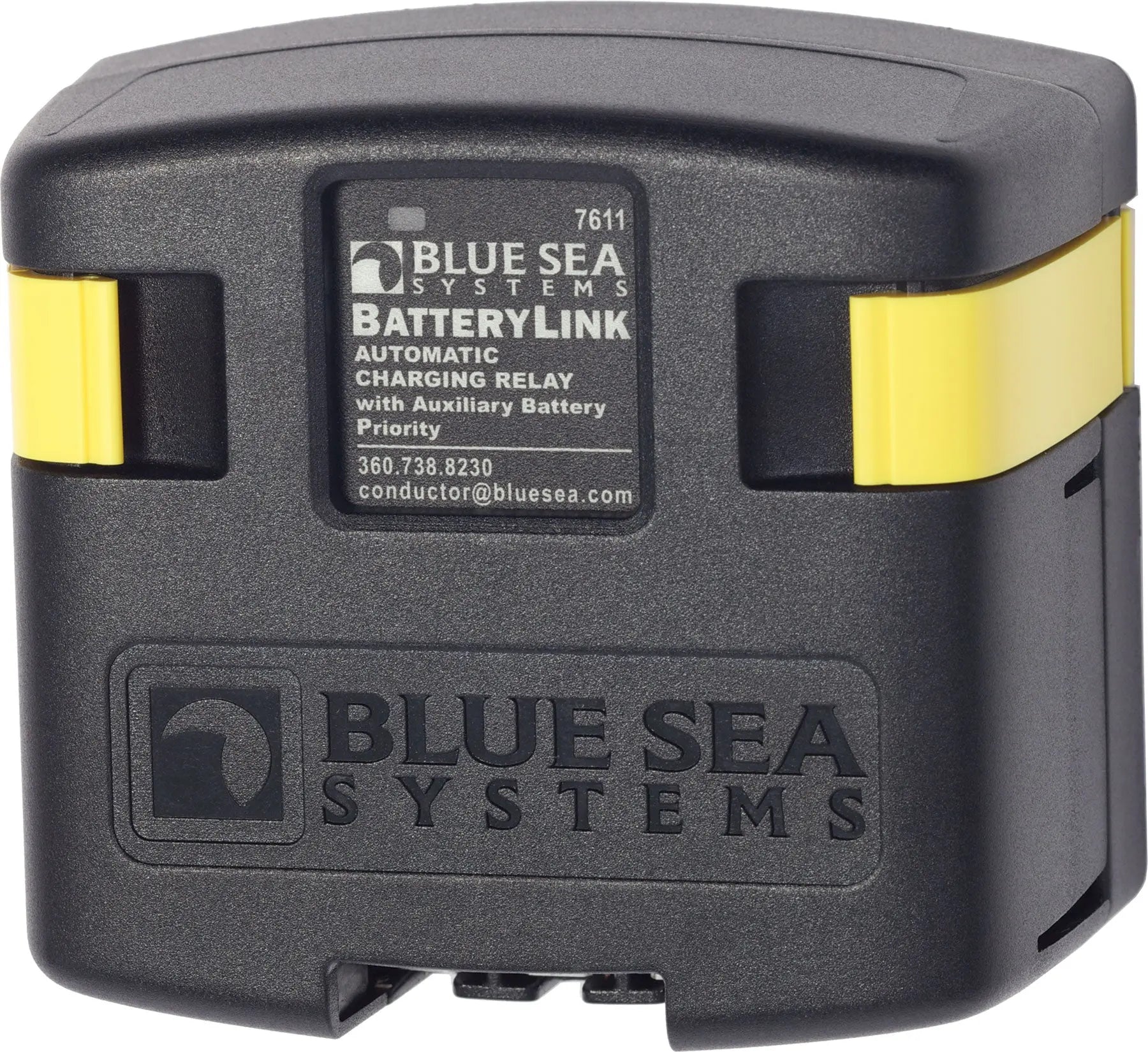

Blue Sea Systems BatteryLink Automatic Charging Relay 12/24V DC 120A - Model 7611-BSS

Blue Sea BatteryLink Automatic Charging Relay 12/24vDC 120A

The Blue Sea Systems BatteryLink Automatic Charging Relay (Model 7611-BSS) is a reliable solution for managing dual battery banks in marine and RV applications. Designed to automatically share a single power source between your main and auxiliary batteries, this relay simplifies system wiring while ensuring efficient charging. With a continuous rating of 120 amps, it can handle substantial current loads, making it suitable for larger battery setups. The relay features an auto-ranging voltage input of 12 or 24 volts DC, allowing versatile installation across different systems. Built-in sensing capabilities detect charging activity on both battery banks, ensuring proper power distribution without manual intervention. The design includes side and bottom knockouts for flexible cable connections, along with a clip-on cover that insulates terminal connections for added safety. The relay's 7/8 inch (22 mm) stud length accommodates multiple cable terminals, reducing installation complexity. An integrated LED indicator provides real-time status updates of the Automatic Charging Relay (ACR), enabling quick diagnostics. The unit is equipped with 1/4 inch x .032 inch male quick connect terminals for grounding and optional features, further simplifying wiring. Note that the largest permissible battery bank size is a Group 27, ensuring compatibility with a wide range of battery configurations. Constructed by Blue Sea Systems, this relay combines durability and ease of use, making it an essential component for maintaining efficient and safe battery systems. Its compact design ensures it fits into tight spaces while providing dependable performance. For safety, it complies with Prop 65 warnings related to cancer and reproductive harm, emphasizing the importance of proper handling and installation. Overall, the Blue Sea Systems BatteryLink Automatic Charging Relay offers a seamless, automatic solution for managing multiple batteries in demanding environments, enhancing system longevity and reliability.

Features:

• 120 Amp continuous rating for reliable high-current handling

• Auto-ranging 12/24V DC input for versatile system compatibility

• Senses charging on two battery banks for automatic power sharing

• Side and bottom knockouts for flexible cable connections

• Clip-on cover insulates terminal connections for safety

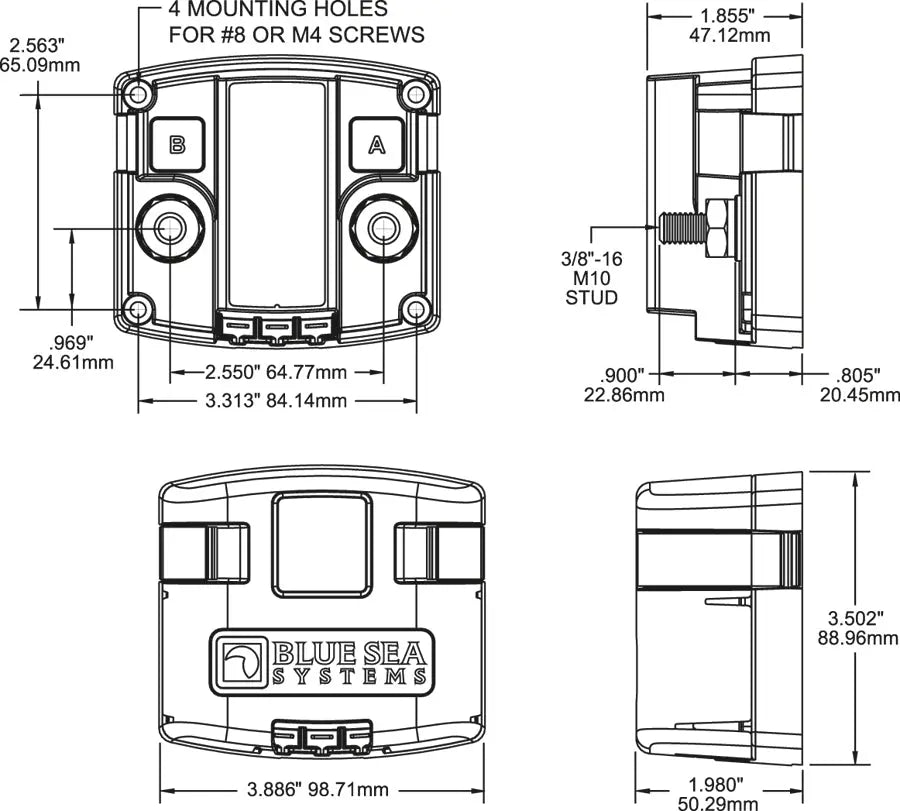

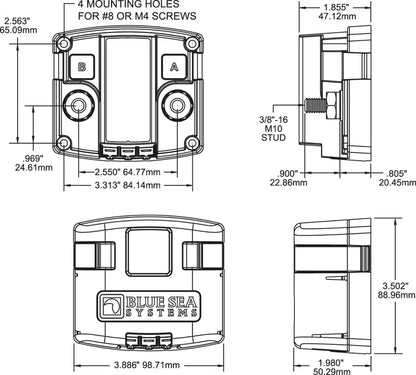

• 7/8 inch stud length accommodates multiple cable terminals

• Integrated LED indicator displays relay status for easy monitoring

• Includes male quick connect terminals for ground and optional features

• Suitable for battery banks up to Group 27 size
