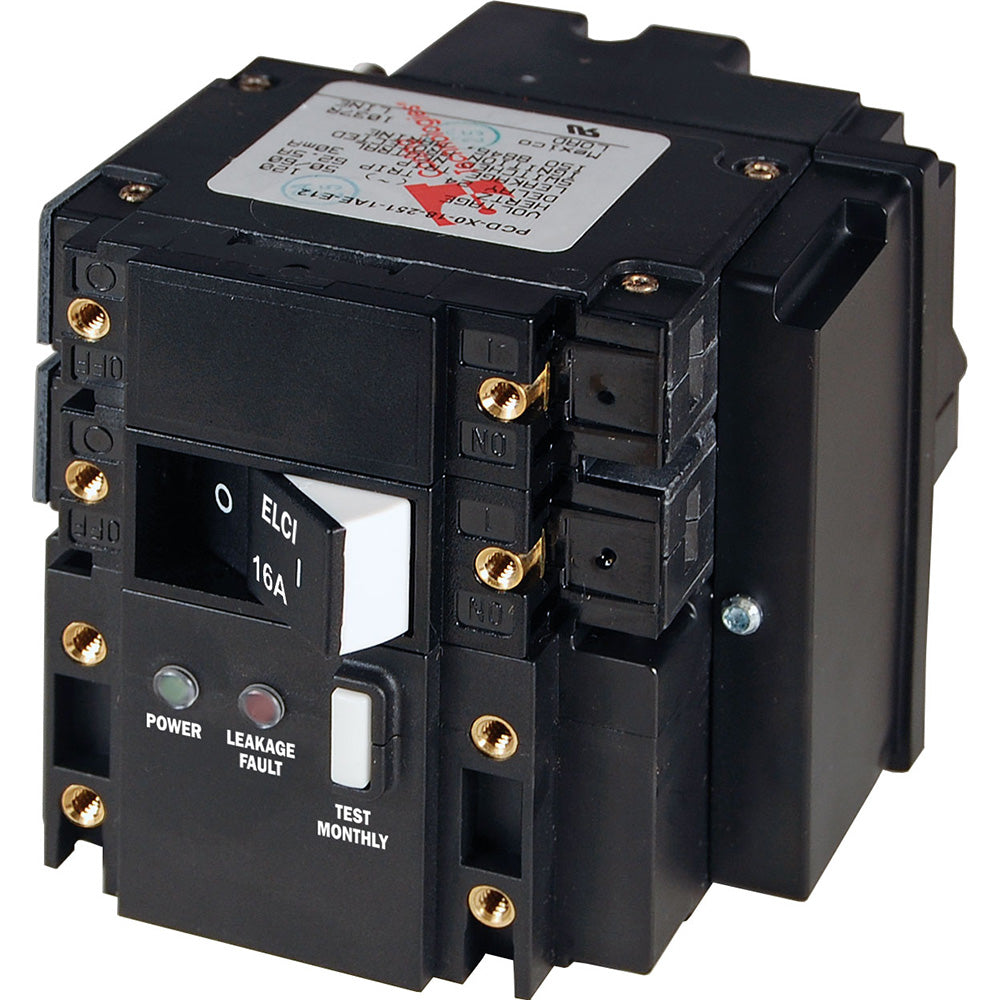

Blue Sea Systems C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A

C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A

Features:

• Trips on short circuit, overload, or leakage to ground
• Front panel mountinstalled in a power distribution panel

Specifications:

• Amperage: 16A
• Actuator Style: Flat rocker
• Poles: 2
• Ignition Protected: Yes
• Maximum Voltage: 240V AC per pole
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Maximum Operating Temperature: 66 degrees C
• Leakage Trip Amps: 30mA
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6in-lb (0.68 Nm)
• Switching Cycles: 10000
• Weight: 0.90 lbs (0.41kg)

The Blue Sea Systems C-Series ELCI Main Circuit Breaker, part number 3091, is designed for reliable protection and efficient power management in residential and commercial electrical systems. This double pole circuit breaker operates at 230V AC and provides a 16A current capacity, making it suitable for a variety of load requirements. Its robust construction and high interrupt capacity of 5000A ensure safe handling of short circuits, overloads, and ground leakage faults. The breaker features a flat rocker actuator for easy operation and is designed to be front-mounted in a power distribution panel, facilitating straightforward installation and maintenance. With an ignition protected design, it is suitable for use in environments where safety is critical, and it can operate within a wide temperature range from -35°C to 66°C, making it versatile for various climate conditions. The circuit breaker is equipped with 30mA leakage trip protection, adding an extra layer of safety by preventing ground fault hazards. Constructed with high-quality stainless steel mounting screws and rated for 10,000 switching cycles, this breaker offers durability and long-term performance. Its compact weight of just 0.90 lbs makes it suitable for space-conscious applications without compromising on safety or functionality.

Features:

• Trips on short circuit, overload, or leakage to ground

• Front panel mount installation in power distribution panels

• Operates at 230V AC with a 16A current capacity

• Magnetic hydraulic trip free circuit breaker for reliable protection

• High interrupt capacity of 5000A ensures safety during faults

• Leakage trip protection at 30mA for additional safety

• Designed for wide temperature range from -35°C to 66°C

• Durable construction with stainless steel mounting screws

• Rated for 10,000 switching cycles for long-term use
