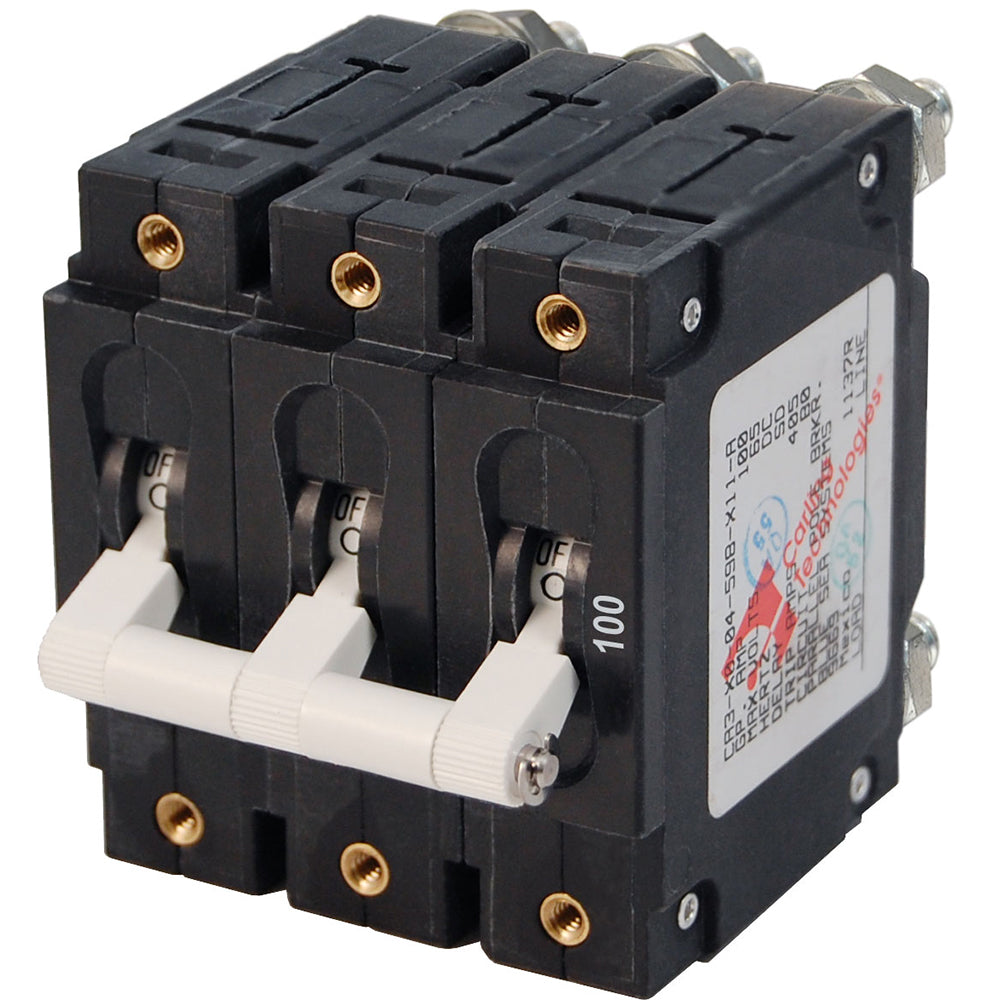

Blue Sea Systems C-Series Triple Pole Circuit Breaker 100A - Model 7290

• 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection

• Double pole used as 120 volt AC main circuit breaker to switch hot to neutral

• Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral

• Double and triple pole circuit breakers will trip all poles will trip if any one pole trips

• "Trip Free" design cannot be held "ON" during fault current condition

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems C-Series Triple Pole Circuit Breaker, model 7290, is designed for reliable main protection in 120/240 Volt AC systems. Featuring a 100A current rating, this breaker provides robust performance suitable for various marine and industrial applications. Its white color and three-pole configuration allow for efficient switching between hot and neutral lines, ensuring comprehensive circuit management.

This circuit breaker boasts a 5,000 Ampere interrupt capacity, meeting ABYC standards for 50 Amp main protection. The double pole functions as a 120 Volt AC main circuit breaker, switching hot to neutral, while the triple pole handles 240 Volt AC systems by switching both lines and neutral. All poles are designed to trip simultaneously if any one pole trips, maintaining system safety and integrity. The "Trip Free" design prevents the breaker from remaining in the "ON" position during fault conditions, ensuring quick disconnection in hazardous situations.

Constructed by Blue Sea Systems, the model 7290 offers durability and compliance with industry safety standards. Its compact design makes it suitable for panel mounting in confined spaces. Warning: This product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which is known to cause health issues in California. For detailed safety information, visit P65Warnings.ca.gov.

Features:

• 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection

• Double pole used as a 120 Volt AC main circuit breaker to switch hot to neutral

• Triple pole used as a 240 Volt AC main circuit breaker to switch lines (hot) and neutral

• All poles trip simultaneously if any one pole trips to ensure system safety

• "Trip Free" design prevents the breaker from remaining "ON" during fault conditions
