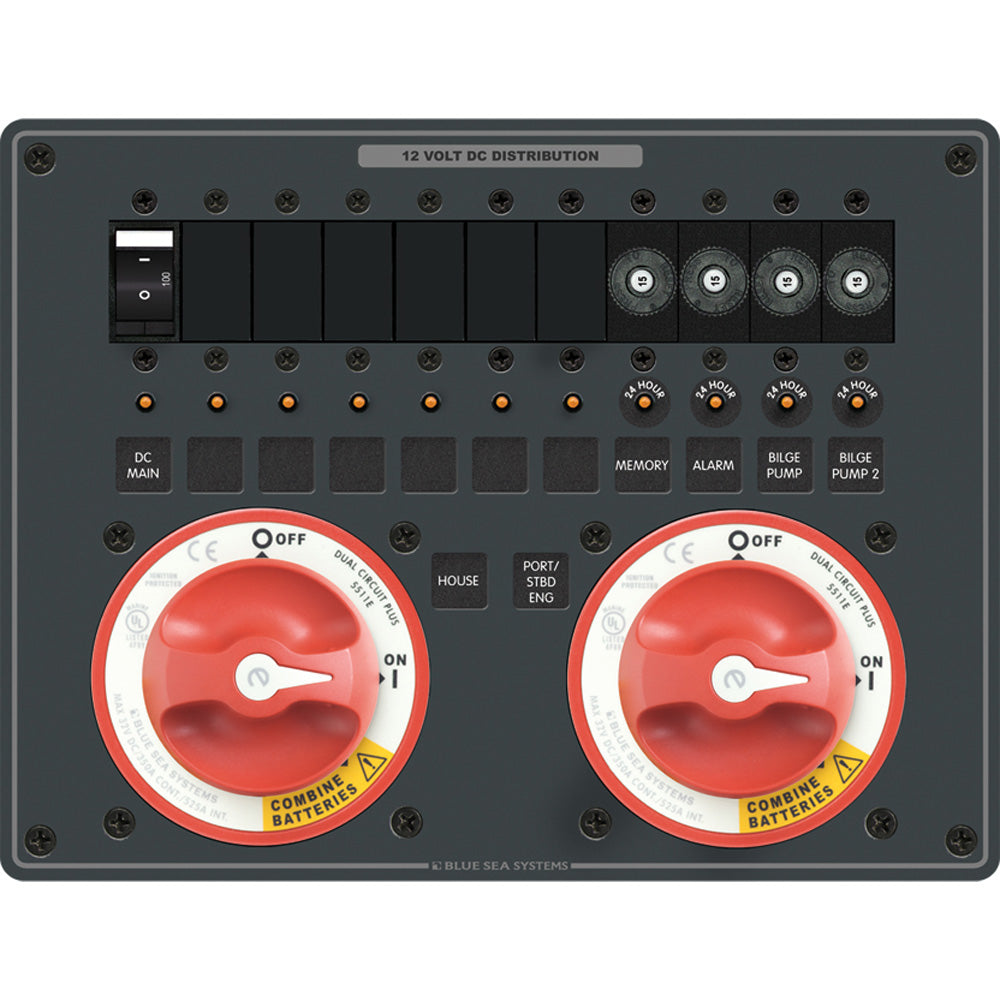

e-Series Dual Circuit Plus 2 PN. 5511e

(1) 100A C-Series Flat Rocker Circuit Breaker
(4) 15A Push Button Thermal Circuit Breakers

• Designed for twin engine configurations

• Provides 24 hour circuit protection

• Provides main DC circuit protection in addition to high ampere load protection

• Protects electronics from sags and spikes caused by engine cranking

• Allows emergency cross connect between isolated battery banks

• Isolates the Engine circuit from the House circuit

• Simplifies battery switch operation

• Allows independent battery discharge

• Addition of an Automatic Charging Relay automates charging both batteries

• Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8693 e-Series Dual Circuit Plus 2 (Part Number 5511e) is a comprehensive electrical protection and management solution designed specifically for twin engine configurations. This system features a 100A C-Series Flat Rocker Circuit Breaker that provides reliable overcurrent protection for main DC circuits, ensuring your electrical system remains safe during high load conditions. Additionally, four 15A Push Button Thermal Circuit Breakers protect auxiliary circuits, offering precise control and safeguarding sensitive electronics from voltage sags and spikes caused by engine cranking.

Engineered for marine and industrial applications, this system enables emergency cross-connection between isolated battery banks, facilitating quick power transfer in critical situations. It also isolates the engine circuit from the house circuit, simplifying battery switch operation and allowing independent battery discharge. The inclusion of an Automatic Charging Relay automates the charging process for both batteries, maintaining optimal charge levels and extending battery life. The system comes with detailed labeling, including 4218 square format labels and 4140 round 24-hour labels, aiding in easy identification and maintenance.

Designed with safety and ease of use in mind, the Blue Sea Systems e-Series Dual Circuit Plus 2 offers a robust and versatile solution for complex electrical setups. Its compact design and comprehensive features make it an ideal choice for boat builders, marine technicians, and electrical professionals seeking reliable circuit protection and efficient battery management. Please refer to the owner’s manual available online for installation guidance and detailed specifications. Note that this product contains chemicals known to the State of California to cause reproductive harm; for more information, visit P65Warnings.ca.gov.

Features:

• Designed for twin engine configurations for versatile application

• Provides 24-hour circuit protection to ensure continuous safety

• Main DC circuit protection with high amperage load capacity

• Protects electronics from voltage sags and spikes caused by engine cranking

• Enables emergency cross connect between isolated battery banks

• Isolates engine circuit from house circuit for safety and control

• Simplifies battery switch operation for user convenience

• Allows independent battery discharge to optimize power management

• Includes an Automatic Charging Relay for automated battery charging

• Comes with comprehensive labels for easy identification and maintenance
