Blue Sea Systems HD-Series Battery Switch Single Circuit ON/OFF - 600 Amp, Ignition Protected

HD-Series Battery Switch Single Circuit ON/OFF

Features:

• 600 Ampere Continuous Rating
• Accepts two 4/0 battery cables per terminal
• Ignition protected - safe for installation aboard gasoline-powered boats
• .870 (22.01mm) stud length to accept multiple cable terminals

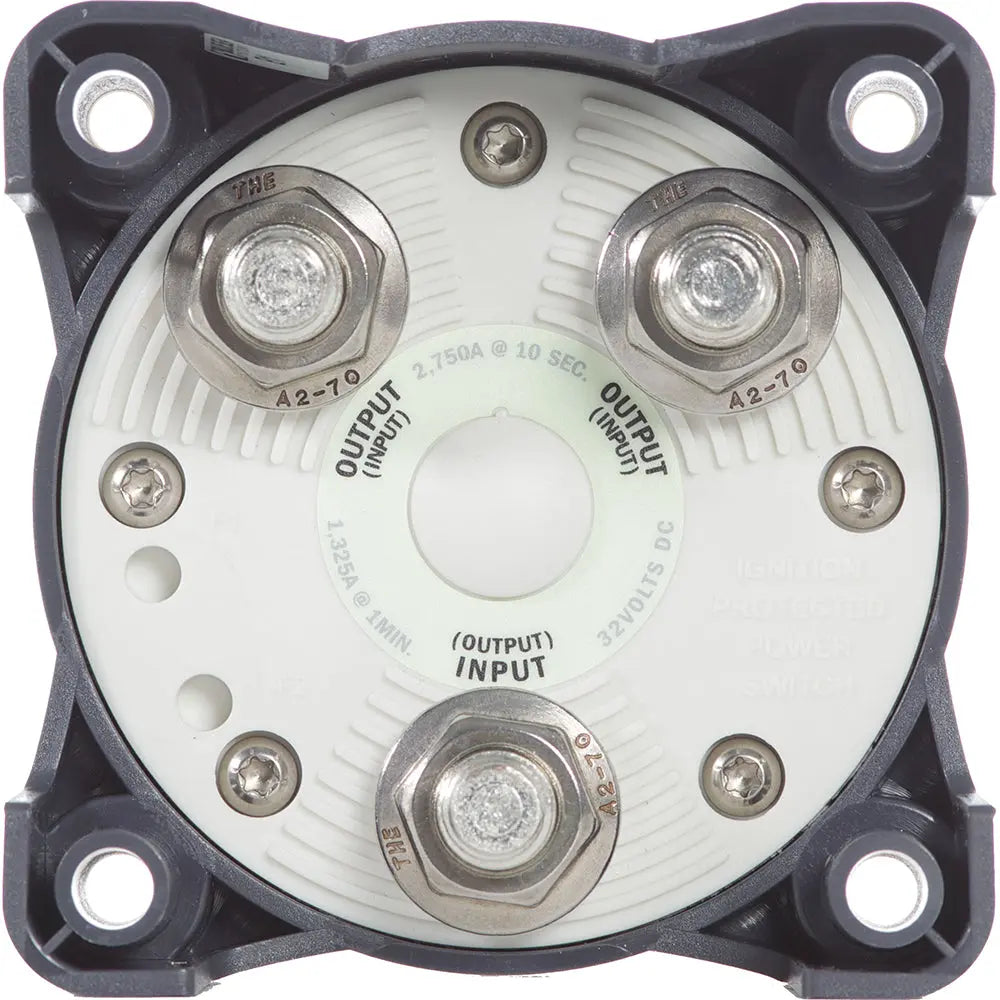

• 1/2 (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches

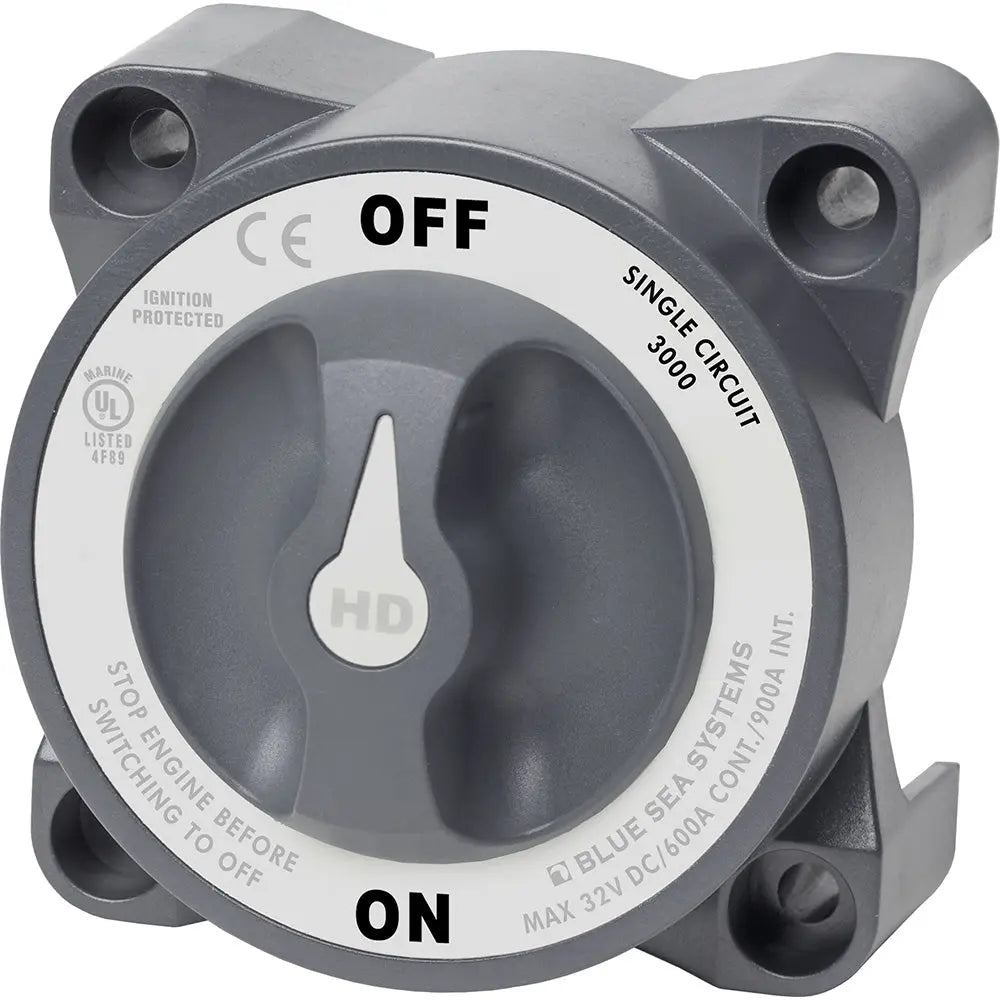

• Tactile textures indicate knob position by feel only

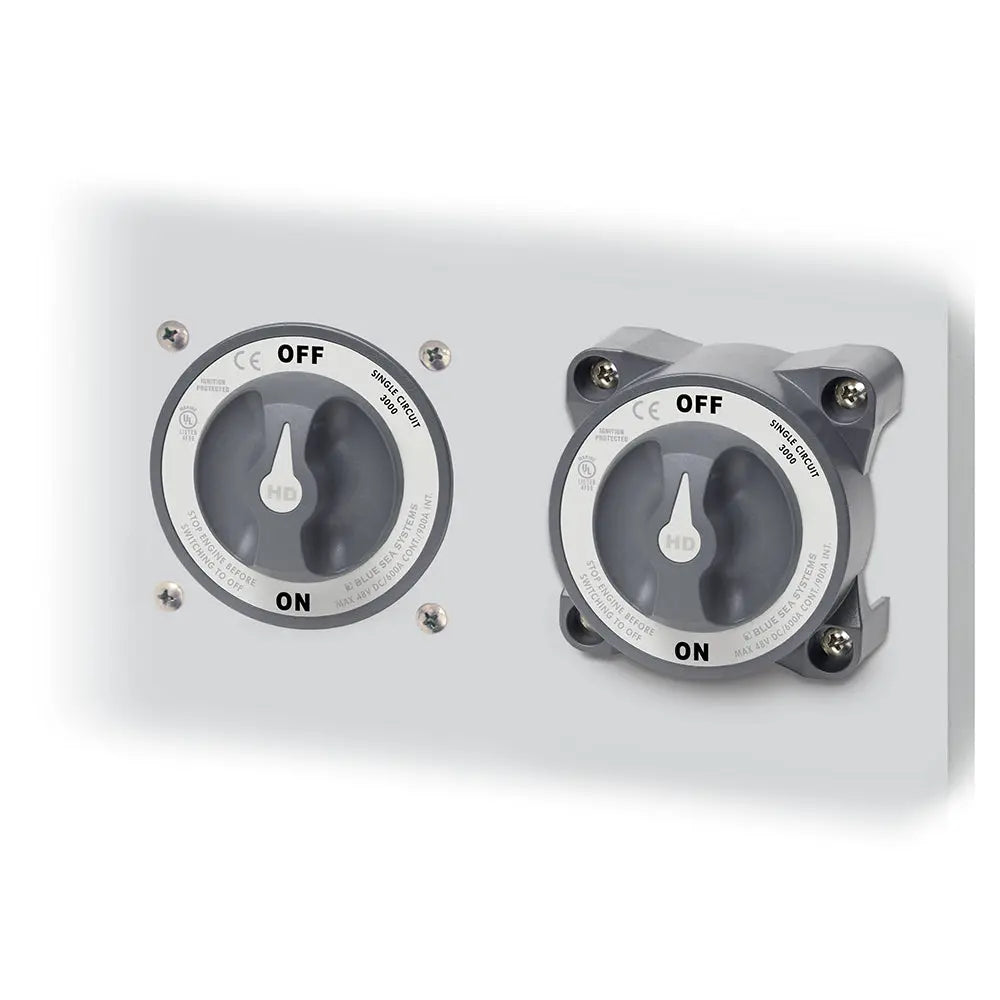

• Case design allows surface or rear panel mounting
• Fits all Perko and Guest low amperage battery switch hole patterns

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 3000 HD-Series Battery Switch offers reliable single-circuit power control for marine and other applications requiring high current handling. With a 600 Ampere continuous rating, this switch is designed to manage heavy-duty battery connections safely and efficiently. Its robust construction includes two 4/0 battery cable terminals per side and a case that supports surface or rear panel mounting, providing versatile installation options. The switch features a .870 inch (22.01mm) stud length to accommodate multiple cable terminals, ensuring secure and solid connections. Equipped with 1/2 inch (M12) tin-plated copper studs, it offers maximum conductivity and excellent corrosion resistance, vital for marine environments where exposure to moisture is common. This battery switch meets the strict standards of the American Boat and Yacht Council (ABYC), ensuring compliance with industry safety and quality requirements. The tactile textures on the knob allow users to identify its position by feel alone, enhancing operational safety during use. Its compatibility with all Perko and Guest low amperage battery switch hole patterns simplifies installation and replacement in existing setups. This switch is ignition protected, making it safe for installation aboard gasoline-powered boats, reducing the risk of ignition caused by electrical faults. The durable design and high current capacity make the Blue Sea Systems HD-Series Battery Switch an essential component for marine electrical systems, delivering both safety and performance in demanding environments.

Features:

• 600 Ampere continuous rating for high current applications

• Accepts two 4/0 battery cables per terminal for secure connections

• Ignition protected design suitable for gasoline-powered boats

• Stud length of .870 inches (22.01mm) to accommodate multiple cable terminals

• Tin-plated copper studs (1/2 inch M12) for maximum conductivity and corrosion resistance

• Meets ABYC standards for marine battery switches

• Tactile textures on the knob for easy position identification by feel

• Surface or rear panel mounting capability for flexible installation

• Compatible with all Perko and Guest low amperage battery switch patterns
