SKU:BSS6011200

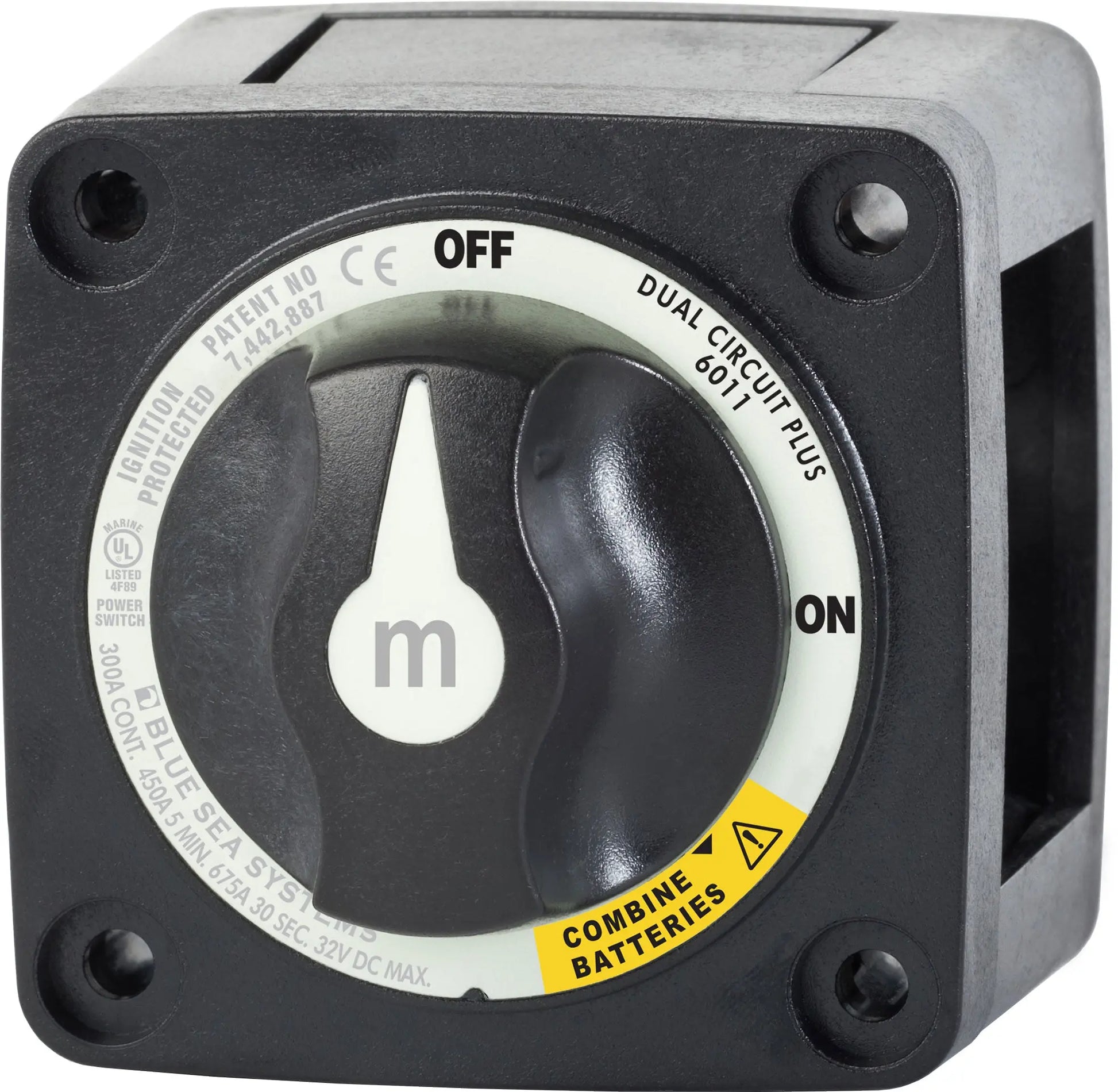

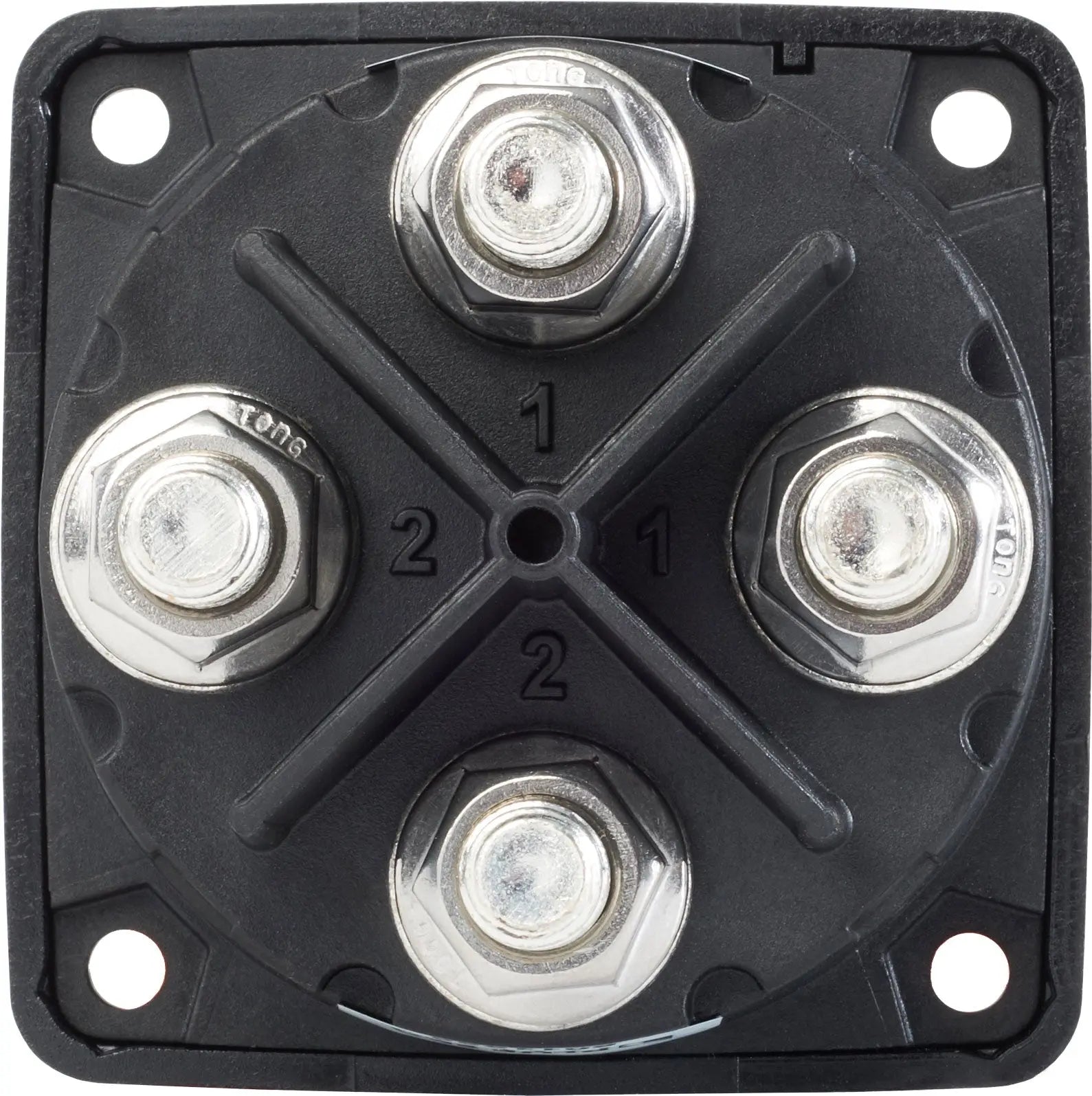

The Blue Sea Systems M-Series Battery Switch Part 6011200-BSS provides a reliable and versatile solution for managing dual battery banks in marine, RV, or industrial applications. Featuring a durable black case and a one-piece stainless flange nut design, this switch ensures secure connections and resistance to corrosion. Its tin-plated copper studs accept 3/8 inch (M10) ring terminals, with a stud length of 7/8 inch (22mm) that accommodates multiple cable terminals. The isolating cover with snap-on sections offers protection for rear contacts, while the case design supports both surface and rear panel mounting options. This switch's waterproof rating of IP66 ensures operation in demanding environments with water projections, making it ideal for outdoor or submerged installations. The make-before-break contact design allows switching between battery banks without power interruption, enhancing safety and system integrity. It simultaneously switches two isolated battery banks or allows combining them to supply all loads, providing flexibility in power management. The switch's specifications include a continuous rating of 300 amps, an intermittent rating of 450 amps for 5 minutes, and a cranking rating of 675 amps for 30 seconds, supporting high-current applications. It is rated for a maximum voltage of 32 volts DC, with cable clearance for 4/0 AWG cables measuring 1.12 inches (28.45mm). The stud material is tinned copper, and the terminal stud torque is specified at 120 in-lb (13.56 Nm). Designed for durability and ease of installation, the Blue Sea Systems M-Series Battery Switch is an essential component for safely managing multiple battery banks in demanding environments.
