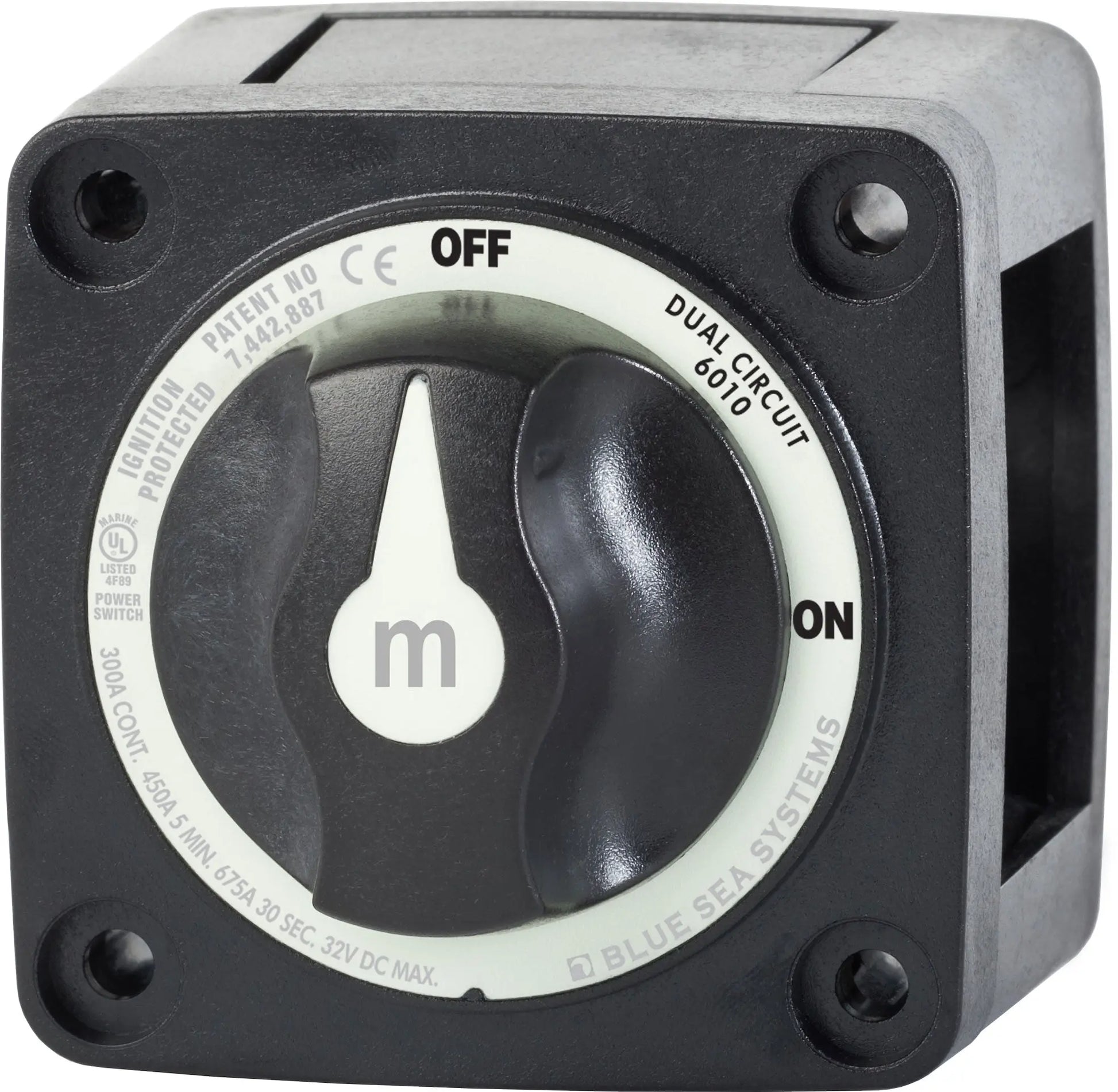

Blue Sea Systems M-Series Dual Circuit Battery Switch Model 6010200-BSS

Blue Sea M-Series Battery Switch On/Off/ Dual Circuit Black

The Blue Sea Systems M-Series Dual Circuit Battery Switch, model 6010200-BSS, provides a reliable and efficient solution for managing two isolated battery banks in marine, RV, or industrial applications. Crafted with durable materials, this switch features tin-plated copper studs that ensure maximum conductivity and resistance to corrosion, supporting secure connections even in demanding environments. Its design includes studs that accept 3/8 inch (M10) ring terminals, with a stud length of 7/8 inch (22mm), allowing the connection of multiple cable terminals for versatile wiring options. The one-piece terminal stud design guarantees that connections remain tight over time, eliminating the need for frequent adjustments.

The switch is equipped with an isolating cover featuring snap-on sections, providing protection for rear contacts against dirt and water ingress. Its case design supports both surface and rear panel mounting, offering flexibility in installation. Rated IP66, the switch is waterproof and capable of handling powerful water jets, making it suitable for harsh environments. The inclusion of waterproof stainless flange nuts ensures safe and secure connections, while breakout tabs enable wire access from any direction, simplifying installation and maintenance. This dual circuit switch allows the simultaneous switching of two isolated battery banks without combining them, providing safe and independent battery management.

Designed to handle high electrical loads, the Blue Sea Systems M-Series switch has a continuous rating of 300 amps and can intermittently carry up to 450 amps for five minutes. Its maximum voltage capacity is 32 volts DC, with a cranking rating of 675 amps for 30 seconds. The terminal studs are rated for 120 in-lb torque, ensuring tight and reliable connections. The switch accommodates large gauge cables, such as 4/0 AWG, with a clearance of just over 1 inch for cable passage, supporting high current capacity applications. Overall, this battery switch combines robust construction, versatile mounting options, and high electrical ratings, making it an essential component for safe and reliable battery management in demanding settings.

Features:

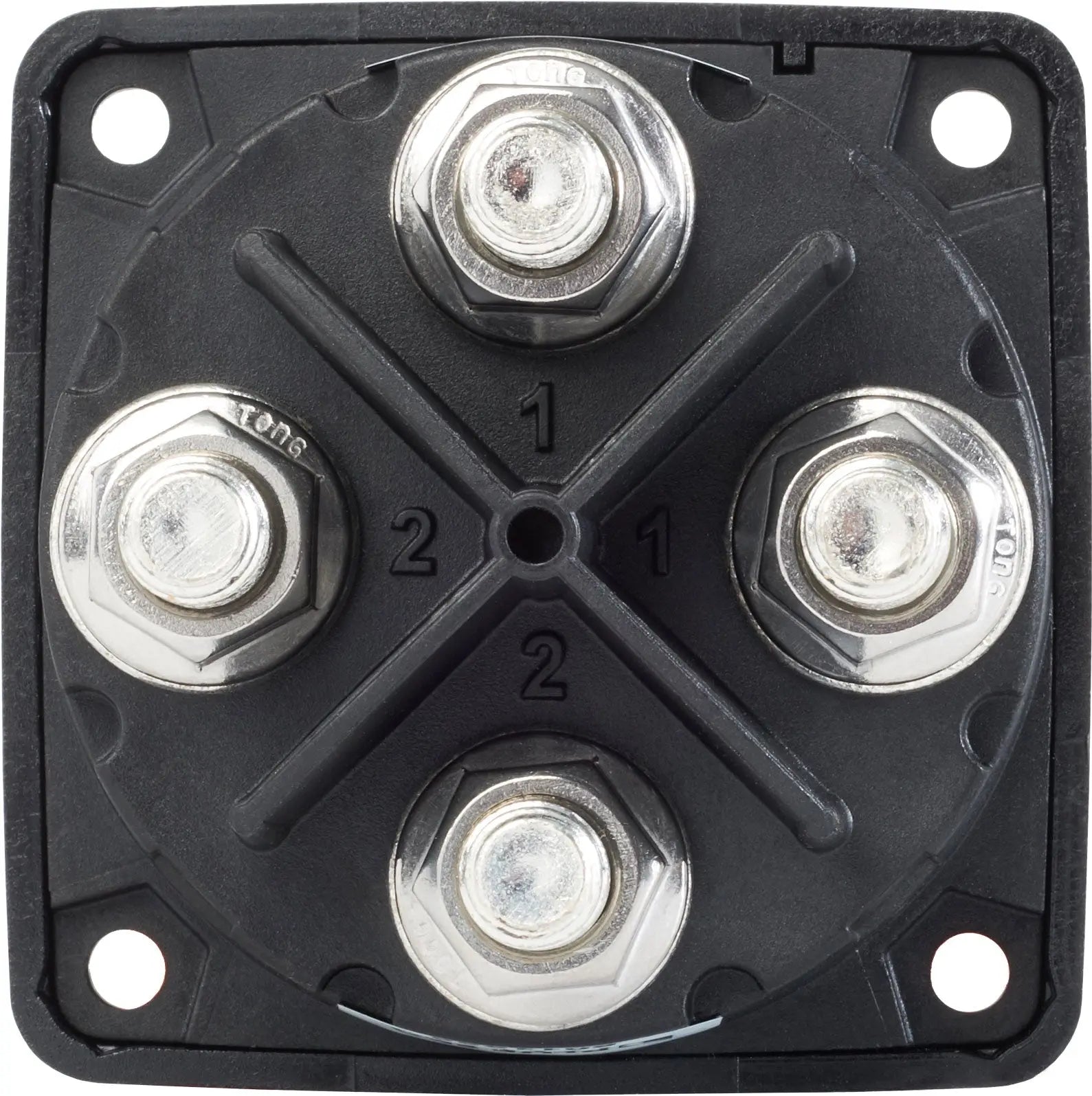

• Tin-plated copper studs for maximum conductivity and corrosion resistance

• Studs accept 3/8 inch (M10) ring terminals

• 7/8 inch (22mm) stud length accommodates multiple cable terminals

• One-piece terminal stud design prevents loosening over time

• Isolating cover with snap-on sections protects rear contacts

• Flexible mounting options for surface or rear panel installation

• Waterproof rating IP66 withstands powerful water jets

• Stainless flange nuts ensure secure, safe connections

• Breakout tabs allow wiring access from any direction

• High electrical ratings support demanding applications
