SKU:BSS6010

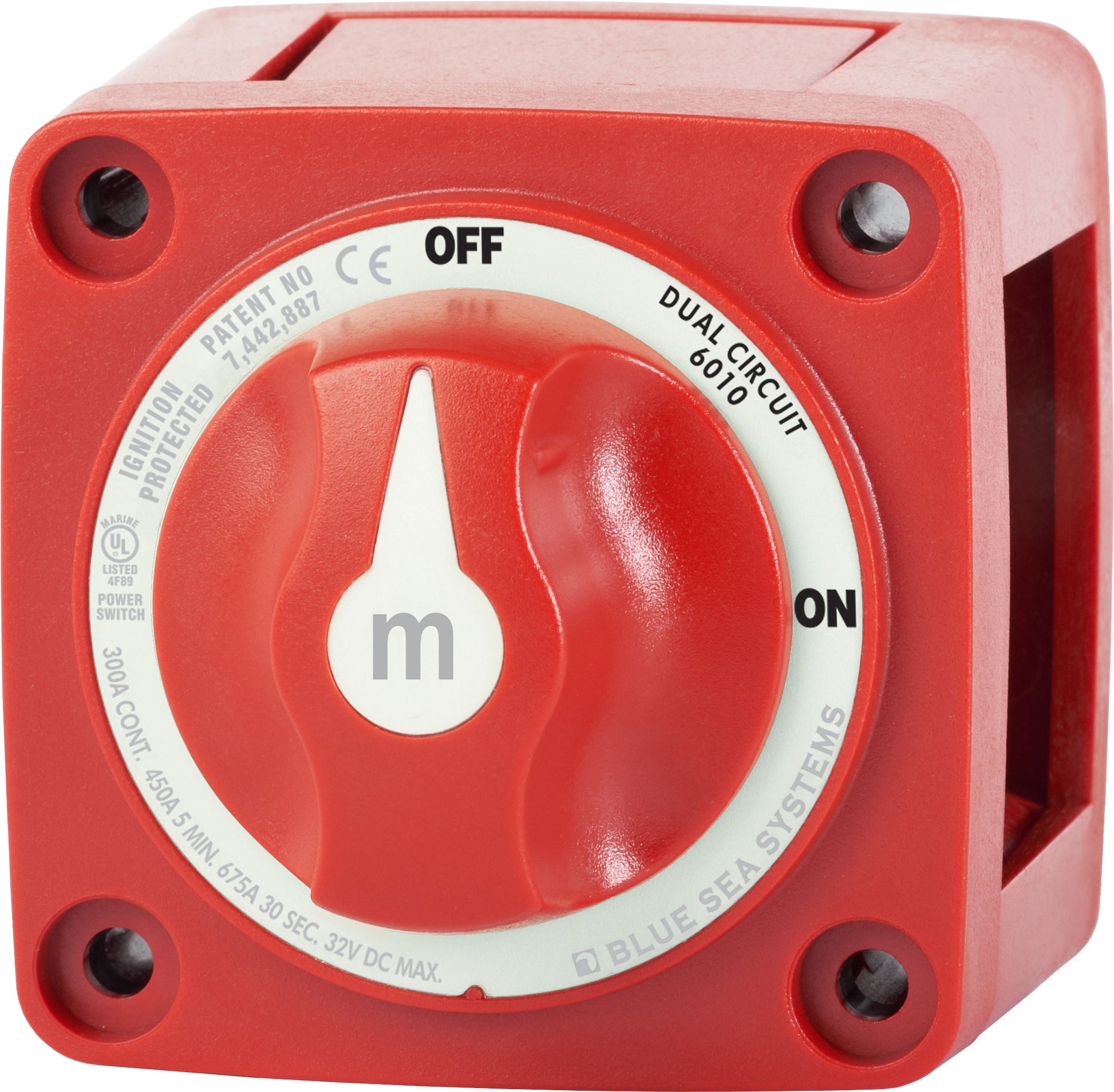

The Blue Sea Systems M-Series Mini Dual Circuit Battery Switch (Model 6010-BSS) offers a reliable solution for managing two isolated battery banks in marine or RV applications. Featuring a compact design with a durable case that supports both surface and rear panel mounting, this switch is built to withstand demanding environments. Its waterproof IP66 rating ensures protection against powerful water jets, making it suitable for outdoor use. The switch's red color provides clear visual indication of its status, and it includes an isolating cover with snap-on sections to safeguard the rear contacts from dirt and moisture. Constructed with tin-plated copper studs, the switch provides maximum conductivity and corrosion resistance, with studs designed to accept 3/8 inch (M10) ring terminals. The one-piece terminal stud design guarantees that connections remain tight over time, reducing maintenance needs. The breakout tabs allow flexible wiring options, enabling wires to be accessed in any direction for ease of installation. The switch supports a continuous rating of 300 amps, with a maximum intermittent rating of 450 amps for up to 5 minutes, and a cranking capacity of 675 amps for 30 seconds, making it suitable for high-current applications. The stainless flange nuts ensure secure connections, and the terminal studs can be torqued to 120 in-lb (13.56 Nm) for optimal safety and performance. Designed to handle up to 32 volts DC, this dual circuit switch allows for independent control of two battery banks without combining them, providing added safety and flexibility. The switch's cable clearance accommodates 4/0 AWG cables, with a clearance of 1.12 inches. Its rugged construction and thoughtful features make it an essential component for anyone seeking a reliable, waterproof, dual circuit battery switch for their electrical system.
Features:
