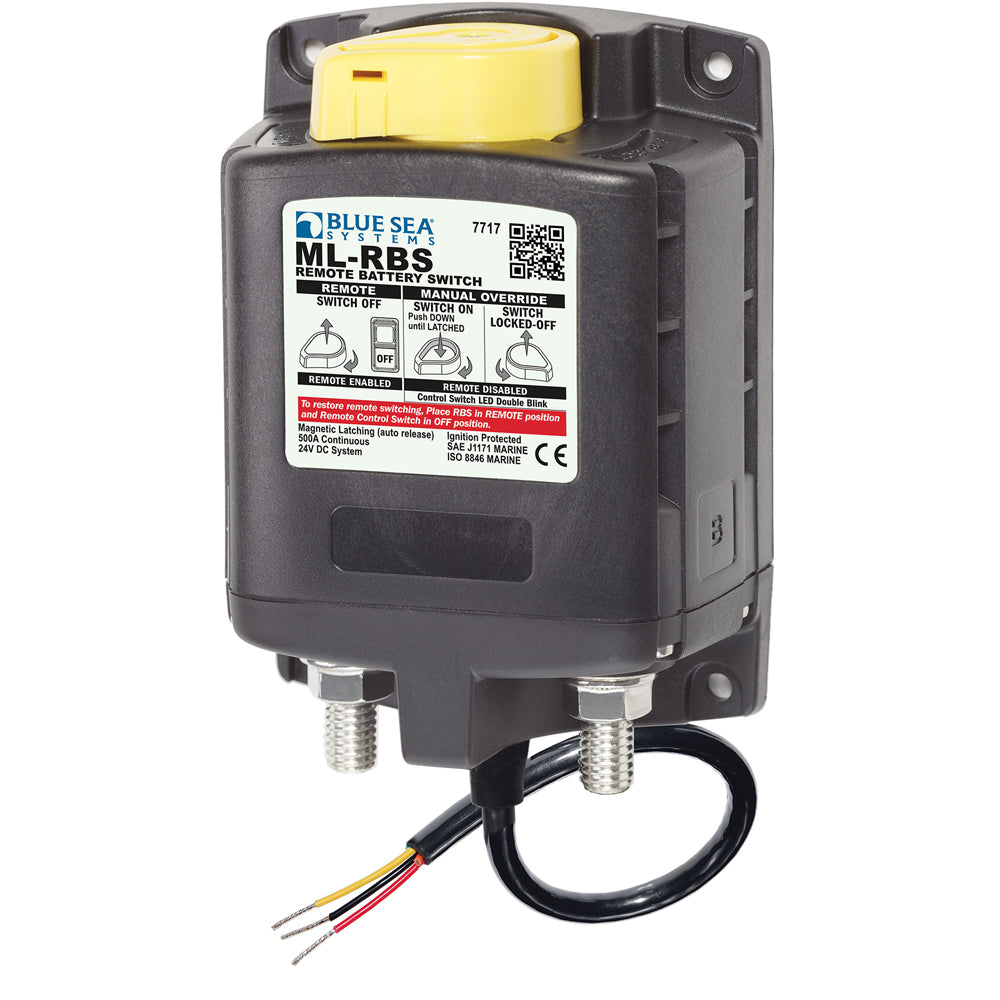

Blue Sea Systems ML-RBS Remote Battery Switch with Manual Control and Auto-Release - 24V

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V

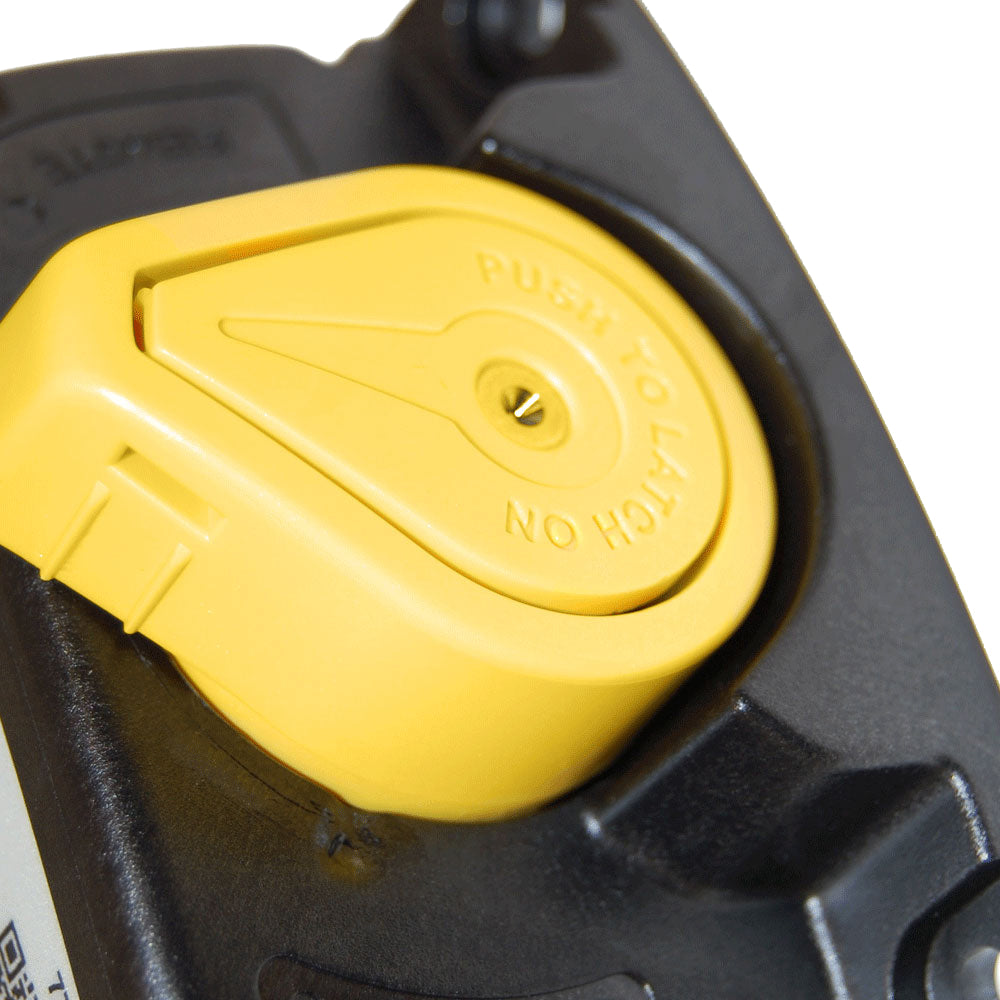

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing

• LED output to remotely indicate switch state - requires optional LED

• 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/ 8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit identification

• Silver alloy contacts provide high reliability for switching live loads

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:24V DC
Manual Control: Yes
Coil Function: Auto releasing
Mounting: #10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state: <4A (40 ms)
Control Circuit Voltage: 20.2 to 32.9V DC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature: -10 C
Maximum Operating Temperature: 50 C
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A @ 12V DC 10,000 Cycles
Master Control Switch Capability: Yes
Mechanical Endurance: 100,000 Cycles
Switching Cycles: 100000
Terminal Ring Diameter Clearance: 1.18" (29.97mm)
Terminal Stud Length: 0.875" (22.23mm)
Terminal Stud Size: 3/8-16 (M10)
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Weight: 1.75lb (0.79 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems ML-RBS remote battery switch offers a reliable solution for managing high-current connections with advanced safety features. Designed for 24V DC systems, this switch provides a manual override knob that allows for safe control during maintenance or emergencies, including a LOCKED OFF position to prevent accidental operation. An optional LED indicator (not included) can be connected to remotely monitor the switch state, enhancing system visibility. Constructed with 3/8"-16 tin-plated copper studs, the switch ensures maximum conductivity and resistance to corrosion, making it suitable for demanding marine and industrial environments. The stud length of 7/8" (22mm) accommodates multiple cable terminals, simplifying installation and wiring.

Built with silver alloy contacts, the ML-RBS guarantees high reliability for switching live loads, supporting continuous ratings of up to 500 amps and intermittent ratings of 700 amps for five minutes. Its auto-releasing coil feature allows for quick disengagement, reducing stress on the circuit during switching operations. The switch's control circuit employs tinned wire connections, with a voltage range of 20.2 to 32.9V DC, making it compatible with various power systems. It features a manual control option, mounted easily using #10 hardware, and operates efficiently within temperature ranges from -10°C to 50°C. The switch's robust design includes a mechanical endurance of 100,000 cycles, ensuring longevity and durability.

Additional features include the ability to handle live current switching up to 300A at 12V DC for 10,000 cycles, a master control switch capability, and a terminal ring diameter clearance of approximately 1.18 inches. The terminal stud size is 3/8-16 (M10), with a torque requirement of 140 in-lb (15.82 Nm). Weighing around 1.75 pounds, the switch is suitable for various applications where high-current management and safety are priorities. Note that this product may contain chemicals known to cause reproductive harm, and a detailed warning is available on the manufacturer’s site.

For detailed installation instructions and safety information, please refer to the owner’s manual available online. The Blue Sea ML-RBS remote battery switch is an essential component for reliable power management in marine, RV, or industrial systems, combining safety, durability, and ease of use in one unit.

Features:

• Manual override knob for safety and servicing, including LOCKED OFF capability

• LED output to remotely indicate switch state (requires optional LED)

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• Stud length of 7/8" (22mm) to accept multiple cable terminals

• Label recesses for circuit identification

• Silver alloy contacts for high reliability in live load switching

• Auto-releasing coil for quick disconnection

• Supports continuous 500A and intermittent 700A ratings

• Cranking ratings up to 2500A for 10 seconds

• Manual control with easy mounting using #10 hardware

• Operates within a temperature range of -10°C to 50°C

• Capable of switching 300A at 12V DC for 10,000 cycles

• Robust construction with a mechanical endurance of 100,000 cycles

• Terminal ring diameter clearance of 1.18 inches and torque of 140 in-lb
