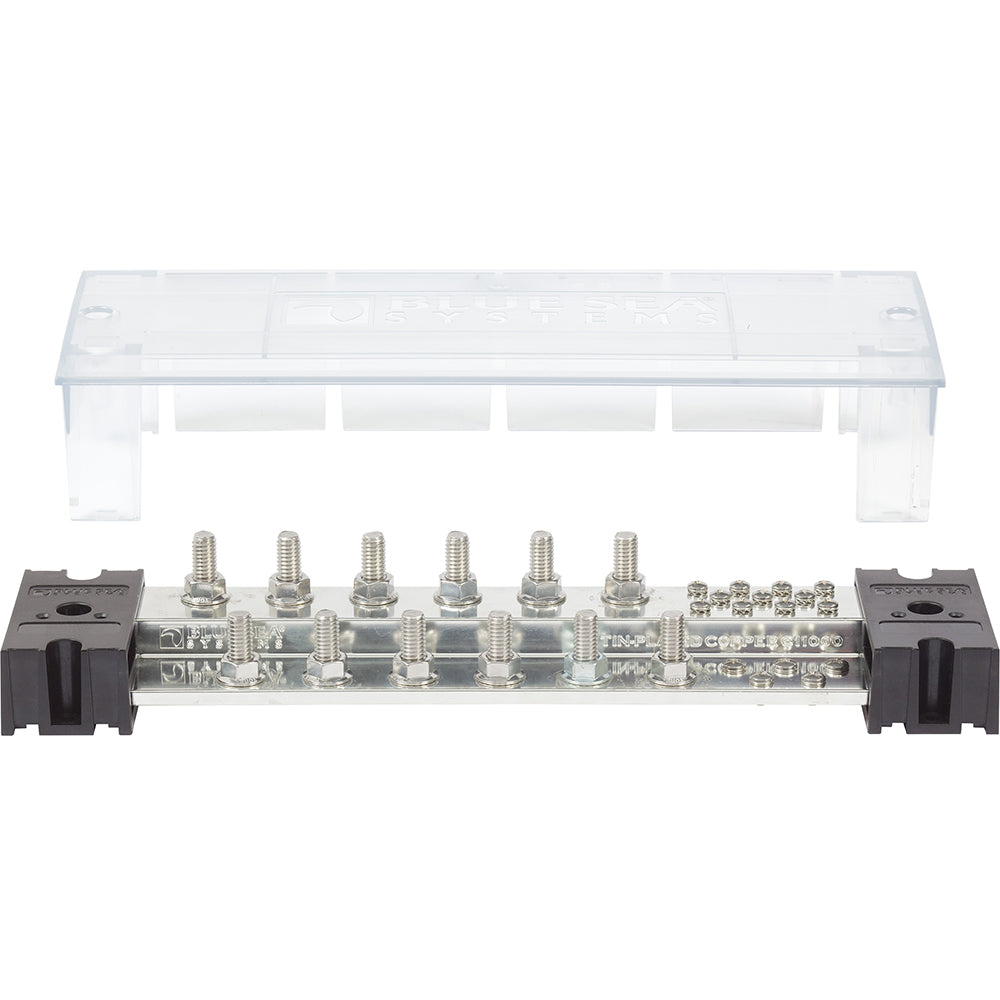

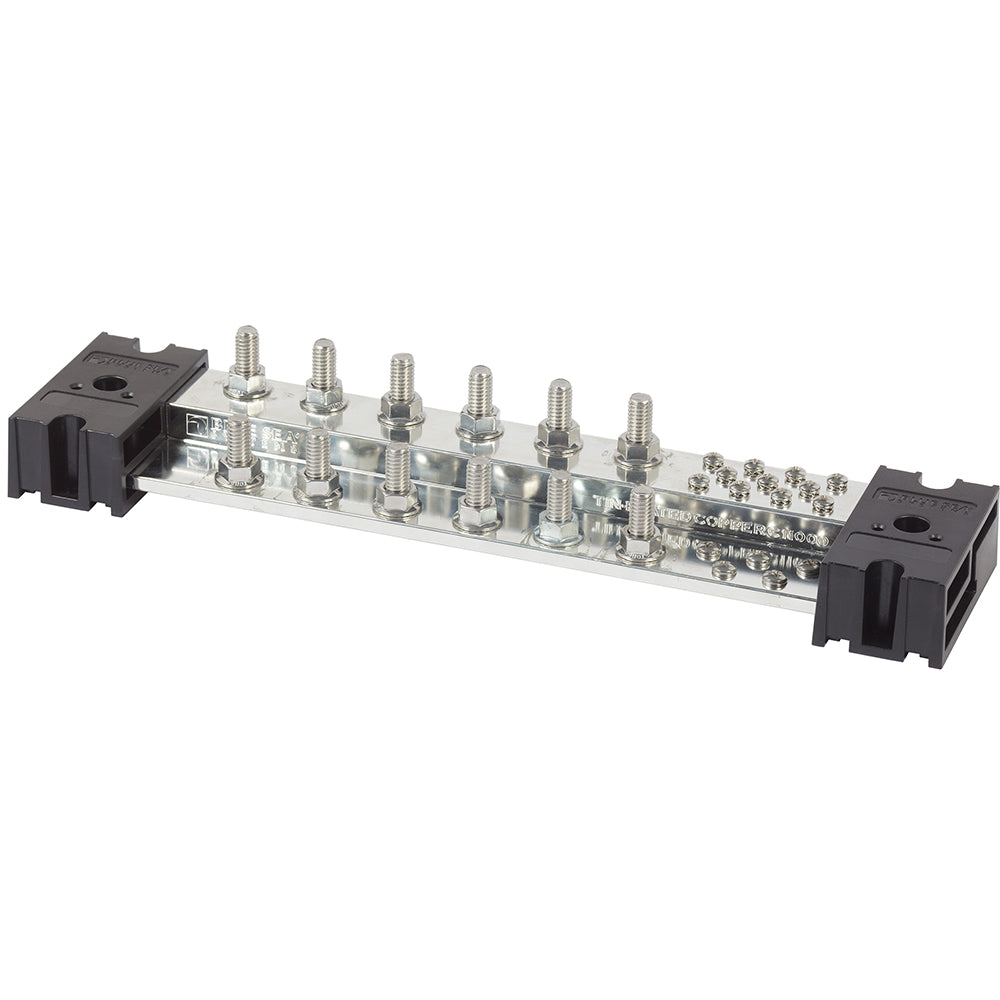

Blue Sea Systems PowerBar 1000 - 12 3/8 inch Terminal Studs with Cover

PowerBar 1000 - 12 3/8" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:

• 1,000 Amp busbar for large complex wiring systems

• Tin plated pure electrical copper for maximum conductivity

• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables

• One-piece serrated flange nuts ensure correct and secure connections

• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires

• Busbar may be cut to a shorter length to accommodate constricted spaces

• Bi-directional busbar end caps allow the ganging of additional busbars

• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:

• Number of Terminal Studs: 12

• Continuous Rating: 1000A

• Bus Material: Tin-Plated Copper C11000

• Mounting Holes: Accepts #10 (M5) Screws

• Terminal Stud Size: 3/8

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems PowerBar 1000 is a high-capacity busbar designed for complex electrical wiring systems requiring a reliable central connection point. Featuring a 1,000 Amp continuous rating, this busbar consolidates large and small conductors efficiently. Its tin-plated pure copper construction ensures maximum electrical conductivity, reducing energy loss and enhancing system performance. The stepped bus design provides two levels for attaching conductors, effectively doubling the wire density compared to traditional bus bars. This feature simplifies wiring layouts and minimizes space requirements in tight installation environments. The PowerBar 1000's compatible busbar and fuse block elevations facilitate easy attachment of multiple fuse blocks without additional connecting cables, streamlining installation and maintenance. The one-piece serrated flange nuts guarantee secure and correct connections, while stainless steel 8-32 screws with captive lock washers are suitable for securing smaller gauge wires. The busbar can be cut to shorter lengths, offering flexibility for space-constrained applications. End caps are bi-directional, allowing the ganging of additional busbars for expanded system capacity. An integrated snap-on insulating cover, compliant with ABYC and USCG standards, features a label recess for clear identification, ensuring safety and regulatory compliance. This busbar's mounting holes accept #10 (M5) screws, compatible with standard mounting hardware, making it versatile for various installation scenarios. The terminal studs measure 3/8 inch, accommodating a range of conductor sizes. Please note that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which may cause health concerns; refer to P65Warnings.ca.gov for detailed information.

Features:

• 1,000 Amp busbar suitable for large complex wiring systems

• Constructed from tin-plated pure copper (C11000) for optimal conductivity

• Stepped bus design offers two levels for conductors, increasing wire capacity

• Compatible with common fuse blocks, eliminating the need for connecting cables

• Secure connections achieved with one-piece serrated flange nuts

• Includes stainless steel 8-32 screws with captive lock washers for smaller wires

• Busbar can be cut to shorter lengths for space-limited installations

• Bi-directional end caps allow ganging of additional busbars

• Snap-on insulating cover meets ABYC and USCG standards with label recess
