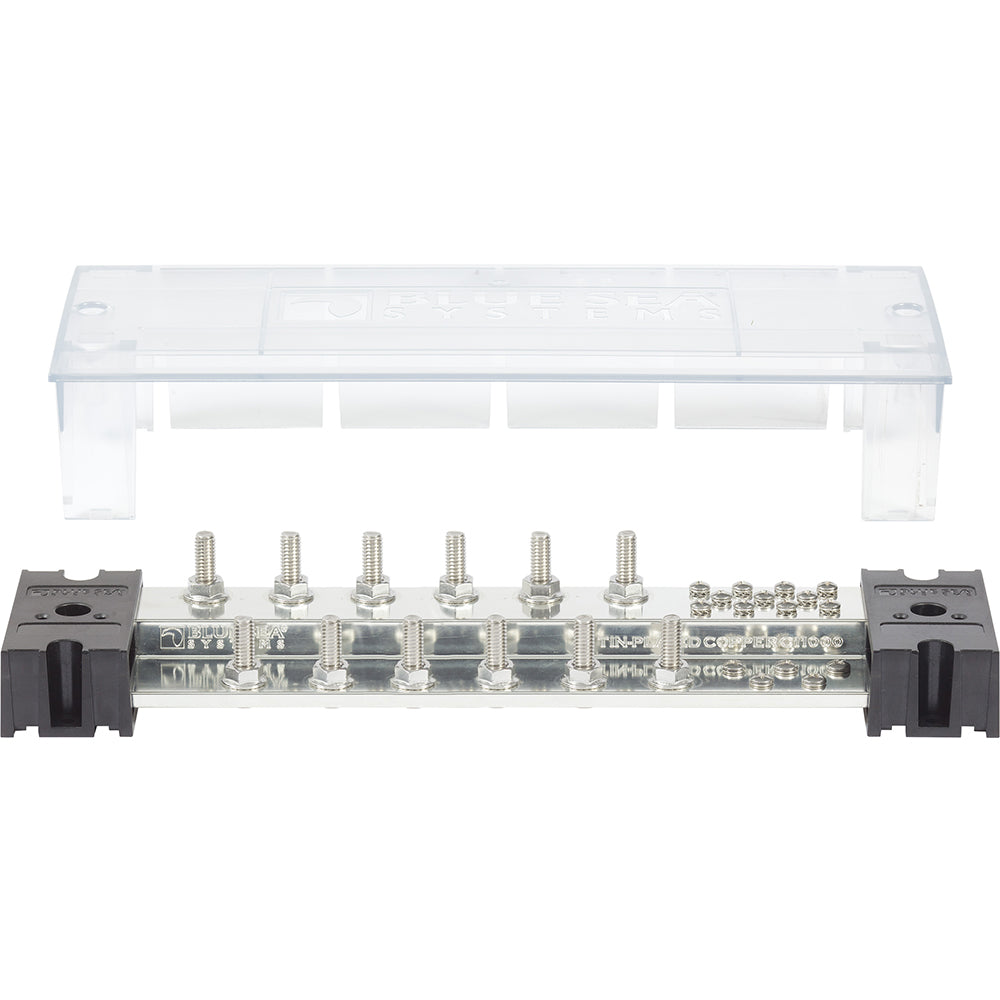

Blue Sea Systems PowerBar 1000 - 12 5/16 inch Terminal Studs with Cover for Heavy-Duty Wiring

PowerBar 1000 - 12 5/16" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:

• 1,000 Amp busbar for large complex wiring systems

• Tin plated pure electrical copper for maximum conductivity

• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables

• One-piece serrated flange nuts ensure correct and secure connections

• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires

• Busbar may be cut to a shorter length to accommodate constricted spaces

• Bi-directional busbar end caps allow the ganging of additional busbars

• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:

• Number of Terminal Studs: 12

• Continuous Rating: 1000A

• Bus Material: Tin-Plated Copper C11000

• Mounting Holes: Accepts #10 (M5) Screws

• Terminal Stud Size: 5/16

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems PowerBar 1000 is a high-capacity busbar designed for complex electrical wiring systems requiring a reliable main connection point. With a robust 1,000 Amp continuous rating, this busbar features 12 terminal studs, each measuring 5/16 inch, providing ample connection points for large and small conductors. Made from tin-plated pure copper (C11000), it ensures maximum conductivity and durability, making it suitable for demanding marine, industrial, or RV applications. The stepped bus design offers two levels of conductor attachment points, effectively doubling wiring density compared to traditional bus bars, which helps organize wiring in tight spaces efficiently. The busbar's elevations align with common fuse blocks, facilitating multiple fuse block attachments without additional connecting cables, simplifying wiring layouts and reducing installation time. The unit includes corrosion-resistant stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires securely, and one-piece serrated flange nuts guarantee proper and stable connections. The PowerBar 1000 can be cut to shorter lengths as needed, allowing customization for confined spaces. Bi-directional busbar end caps enable ganging multiple busbars together for expanded capacity, and the snap-on insulating cover meets ABYC and USCG standards, providing safety and insulation while featuring a label recess for easy identification. This product is engineered for heavy-duty electrical systems requiring high current capacity and secure, organized wiring connections. Its construction and features make it an ideal choice for marine, RV, and industrial wiring applications where reliability and safety are paramount.

Note that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which are recognized by the State of California to cause cancer and reproductive harm. For safety information, visit P65Warnings.ca.gov.

Features:

• 1000 Amp busbar for high-current wiring systems

• Made from tin-plated pure copper (C11000) for maximum conductivity

• Stepped bus design with dual elevations increases wiring density

• Compatible with common fuse blocks for streamlined connections

• Secure connections with serrated flange nuts and captive lock washers

• Includes stainless steel 8-32 screws for securing smaller wires

• Can be cut to shorter lengths for space-constrained installations

• Bi-directional end caps allow ganging with additional busbars

• Snap-on insulating cover meets ABYC and USCG standards with label recess
