Blue Sea Systems PowerBar 1000 - 8 3/8 Inch Terminal Studs with Cover

PowerBar 1000 - 8 3/8" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:

• 1,000 Amp busbar for large complex wiring systems

• Tin plated pure electrical copper for maximum conductivity

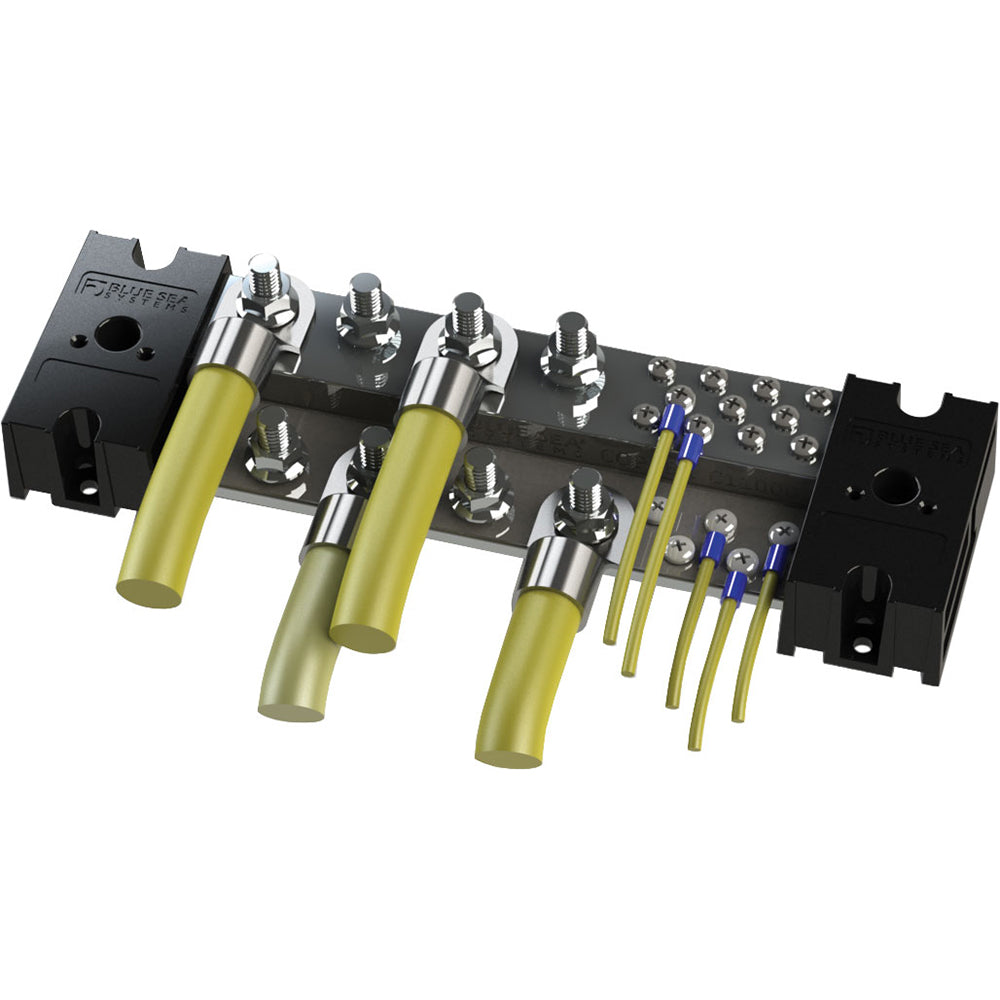

• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables

• One-piece serrated flange nuts ensure correct and secure connections

• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires

• Busbar may be cut to a shorter length to accommodate constricted spaces

• Bi-directional busbar end caps allow the ganging of additional busbars

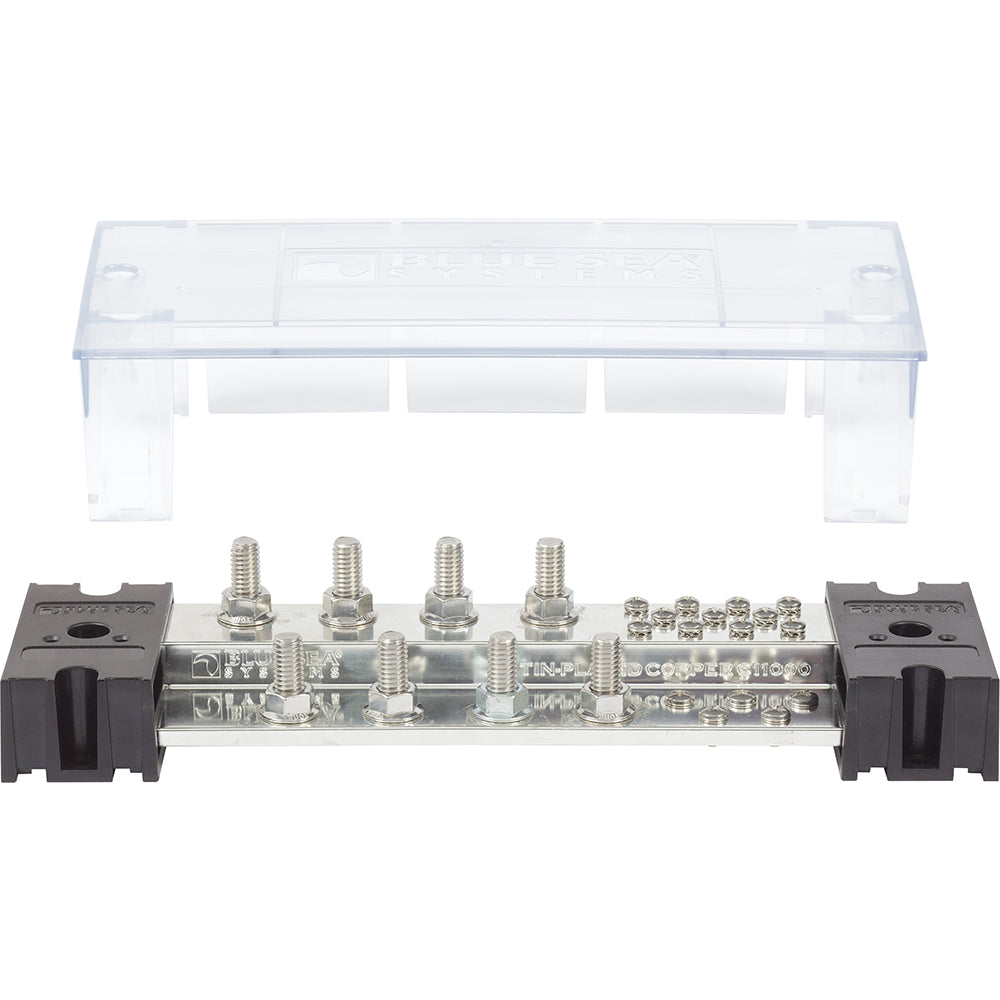

• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:

• Number of Terminal Studs: 8

• Continuous Rating: 1000A

• Bus Material: Tin-Plated Copper C11000

• Mounting Holes: Accepts #10 (M5) Screws

• Terminal Stud Size: 3/8

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems PowerBar 1000 provides a robust 1,000 Amp busbar solution designed for complex wiring systems that require a single point to consolidate both large and small conductors. Crafted from tin-plated copper, this busbar ensures maximum electrical conductivity and durability in demanding marine or industrial environments. Its stepped design offers two elevations, significantly increasing wire density compared to traditional busbars, which simplifies wiring management and reduces clutter. The PowerBar 1000's compatibility with common fuse blocks, thanks to matching elevations, allows multiple fuse blocks to be attached directly without additional connecting cables, streamlining installation and maintenance processes.

Equipped with one-piece serrated flange nuts, the busbar guarantees secure and reliable connections, while stainless steel 8-32 screws with captive lock washers are provided for securing smaller gauge wires. The busbar can be easily cut to shorter lengths to fit limited spaces, making it adaptable to various installation scenarios. Bi-directional end caps facilitate the ganging of additional busbars, expanding the system's capacity as needed. An insulating cover snaps onto the busbar, meeting ABYC and USCG standards, and features a label recess for easy identification and safety compliance.

Designed for versatility and ease of use, the PowerBar 1000 features eight terminal studs with a 3/8-inch size, suitable for a range of wiring configurations. Mounting holes compatible with #10 (M5) screws allow secure attachment to panels or enclosures. The busbar's durable construction and thoughtful features make it an essential component for marine, industrial, and large-scale electrical systems, providing a reliable and efficient wiring backbone in demanding environments.

Features:

• 1000 Amp busbar designed for large and complex wiring systems

• Made from tin-plated pure copper for optimal conductivity

• Stepped bus design with two elevations increases wire density

• Elevations match common fuse blocks for direct attachment

• One-piece serrated flange nuts ensure secure connections

• Stainless steel 8-32 screws with captive lock washers for smaller wires

• Can be cut to shorter lengths for space-constrained installations

• Bi-directional end caps allow ganging of additional busbars

• Snap-on insulating cover meets ABYC and USCG standards with label recess
