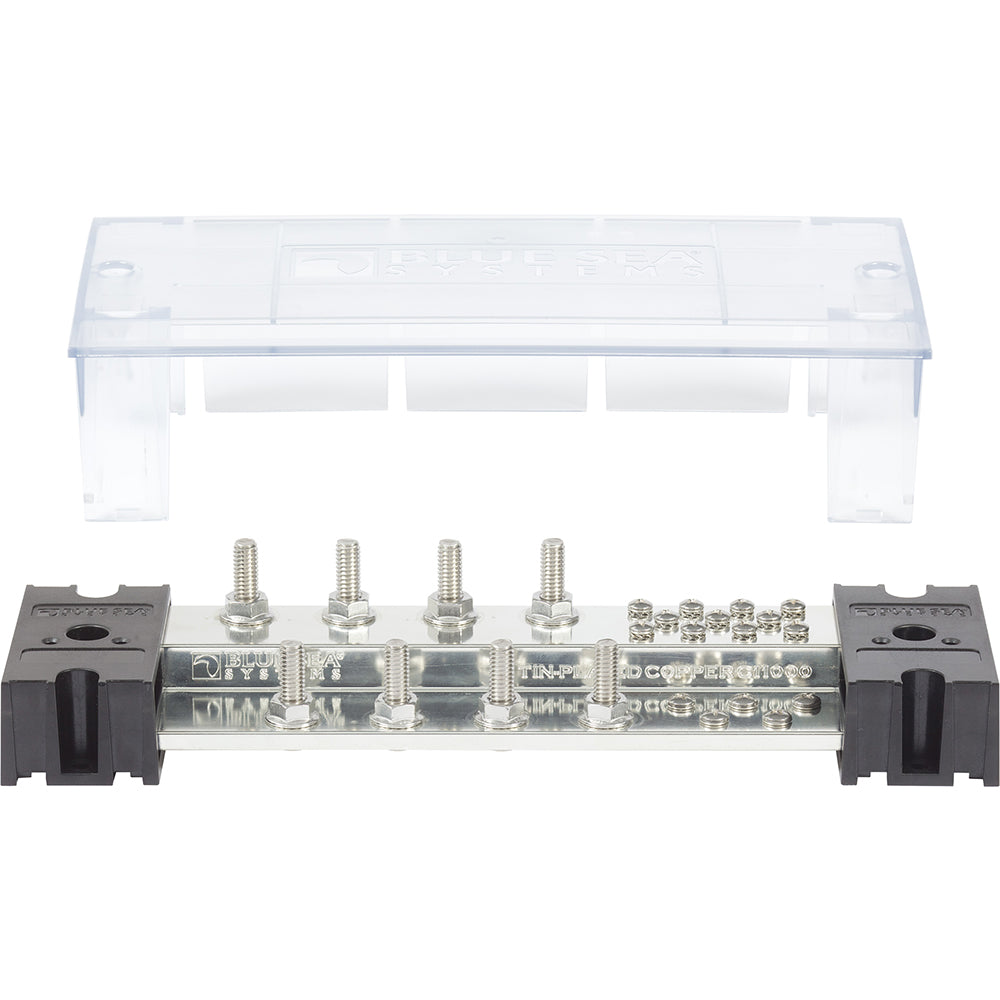

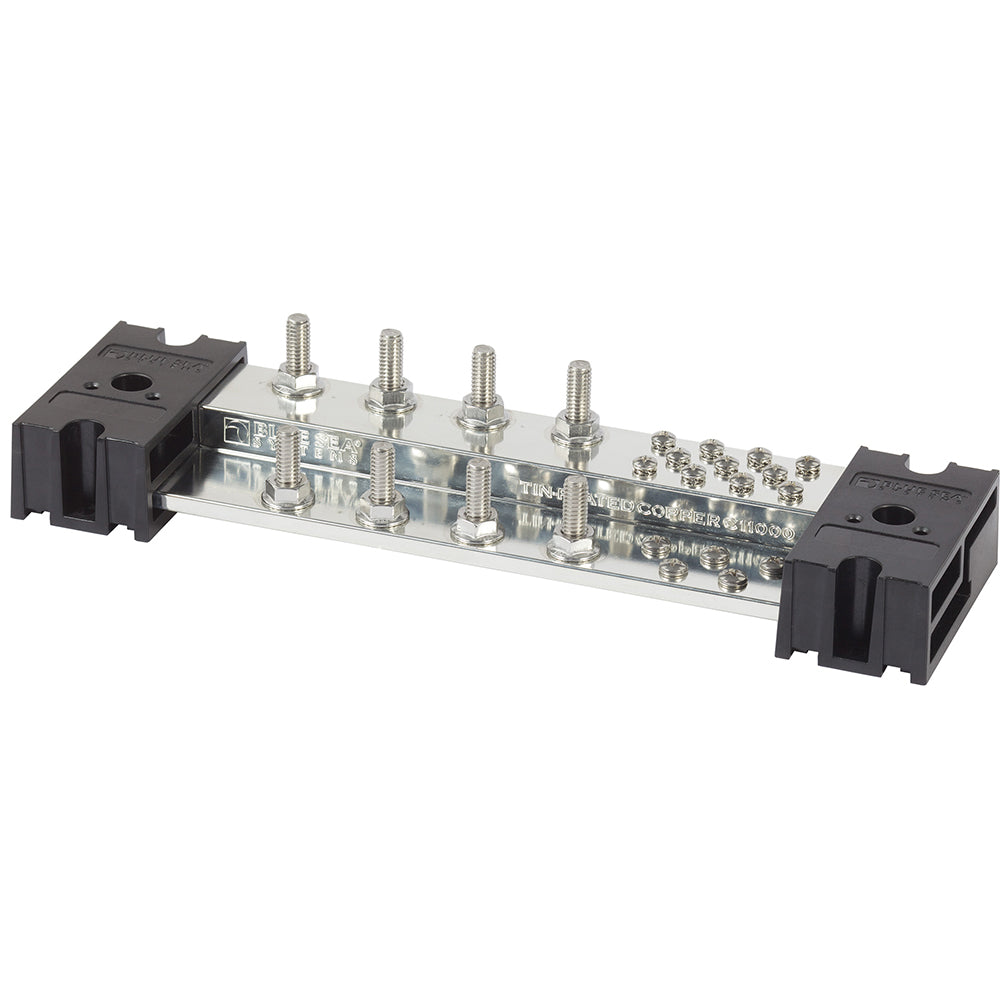

Blue Sea Systems PowerBar 1000 with 8 5/16" Terminal Studs and Cover for High-Current Wiring

PowerBar 1000 - 8 5/16" Terminal Studs w/Cover

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

Features:

• 1,000 Amp busbar for large complex wiring systems

• Tin plated pure electrical copper for maximum conductivity

• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables

• One-piece serrated flange nuts ensure correct and secure connections

• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires

• Busbar may be cut to a shorter length to accommodate constricted spaces

• Bi-directional busbar end caps allow the ganging of additional busbars

• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specs:

• Number of Terminal Studs: 8

• Continuous Rating: 1000A

• Bus Material: Tin-Plated Copper C11000

• Mounting Holes: Accepts #10 (M5) Screws

• Terminal Stud Size: 5/16

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems PowerBar 1000 (Part Number 1992) is designed for complex wiring systems that demand high current capacity and reliable connections. Featuring a 1,000 Amp busbar, this unit consolidates large and small conductors into a single, organized point, simplifying the wiring layout in demanding electrical environments. Constructed from tin-plated pure copper (C11000), the PowerBar ensures maximum conductivity and corrosion resistance, essential for long-term durability in marine, industrial, or heavy-duty applications. Its stepped bus design provides two elevations for conductors, effectively doubling the wiring density compared to traditional busbars, which helps optimize space in confined areas and improves system efficiency. The busbar's elevations are compatible with common fuse blocks, allowing multiple fuse blocks to be mounted directly without additional connecting cables, streamlining installation and reducing potential points of failure. The unit includes one-piece serrated flange nuts for secure, proper connections and stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires, ensuring versatile wiring options. The PowerBar can be cut to a shorter length to fit restricted spaces, and bi-directional end caps enable ganging of additional busbars for expanded capacity. The snap-on insulating cover meets ABYC and USCG standards, offering protection and safety. It also features a label recess for easy identification of circuits, enhancing overall system organization. With a robust design and multiple mounting options, the Blue Sea Systems PowerBar 1000 provides a reliable, high-current solution for complex electrical systems requiring durability and ease of installation. Its compatibility with #10 (M5) mounting screws and terminal stud size of 5/16 inch make it suitable for a wide range of wiring configurations, whether in marine, industrial, or heavy-duty applications. Warning: This product may expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to cause health issues in California. For more information, visit P65Warnings.ca.gov.

Features:

• 1,000 Amp busbar for high-current wiring systems

• Tin-plated pure copper construction for maximum conductivity

• Stepped bus design with dual elevations for increased wiring density

• Compatible with common fuse blocks for direct mounting, eliminating connecting cables

• Secure connections with serrated flange nuts and captive lock washer screws

• Can be cut to length for restricted spaces

• Bi-directional end caps for ganging additional busbars

• Snap-on insulating cover meeting ABYC and USCG standards with label recess
