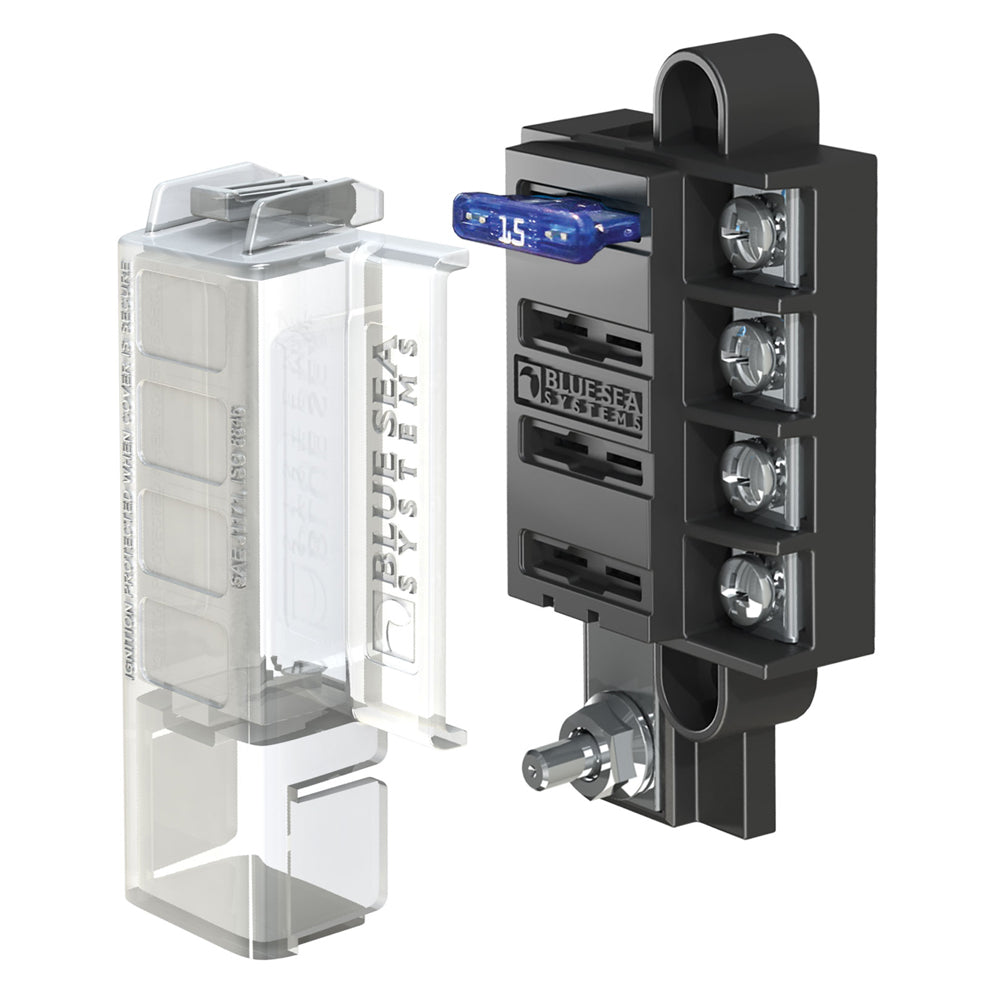

Blue Sea Systems ST Blade Compact Fuse Block - 4 Circuits with Cover

ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

• Compact common source fuse block

• Accepts ATO and ATC fast acting blade fuses

• Single side entry wiring

• Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

• Insulating cover meets ABYC/USCG insulation requirements

• Tin-plated copper buses and fuse clips

• Accepts ring or snap fork type terminals

• Small format standard and custom labels available

Specifications

• Circuits:4

• Maximum Amperage: 100A per block / 30A per circuit

• Maximum Voltage:32V DC

• Mounting: #8 Screw (M4)

• Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems ST Blade Compact Fuse Block (Part Number 5045) offers a reliable and space-efficient solution for circuit protection in various electrical applications. Designed with a compact footprint, this fuse block features four circuits capable of handling a maximum of 30 amps each, with a total capacity of 100 amps per block. Its surface mount design with single side wire entry allows for efficient wiring and maximizes available space in tight installations. This fuse block is ideal for use in automotive, marine, and RV applications where space and safety are priorities.
Constructed with tin-plated copper buses and fuse clips, the Blue Sea Systems fuse block ensures excellent electrical conductivity and corrosion resistance. It accepts both ATO and ATC fast-acting blade fuses, providing versatile protection options. The fuse block's ignition protected design complies with ISO 8846 and SAE J1171 standards, making it suitable for installation in gasoline engine compartments. An insulating cover meets ABYC and USCG insulation requirements, adding an extra layer of safety and protection against accidental contact. The fuse block also accepts ring or snap fork terminal connections, offering flexibility in wiring configurations.
The product's small and standard format allows for easy customization with labels, enabling clear circuit identification. Mounting is straightforward with a #8 screw (M4), and the screw terminal torque is designed for secure connections. This fuse block is built for durability and safety, making it a dependable choice for electrical system management in demanding environments. Its compact size, robust construction, and compliance with industry standards make it a practical addition to any electrical setup requiring reliable circuit protection.
Note that this product may expose users to chemicals such as di(2-ethylhexyl)phthalate (DEHP), which is recognized to cause health concerns. For more details, visit P65Warnings.ca.gov.

Features:

• Compact surface mount fuse block with four circuits

• Accepts ATO and ATC fast-acting blade fuses

• Single side entry wiring for space efficiency

• Ignition protected design complying with ISO 8846 and SAE J1171

• Insulating cover meets ABYC and USCG insulation standards

• Tin-plated copper buses and fuse clips for corrosion resistance

• Compatible with ring or snap fork terminal connections

• Custom labels available for circuit identification

• Easy to mount with #8 screw and secure terminal connections
