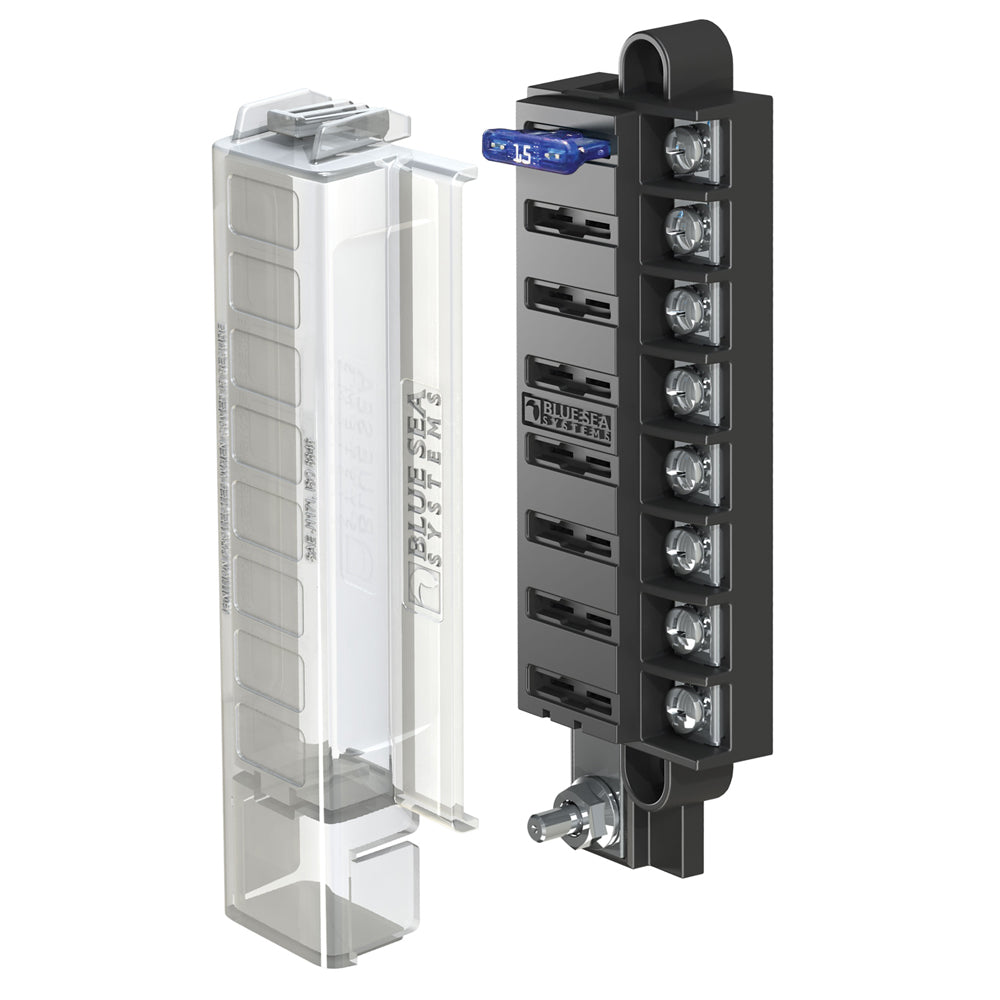

Blue Sea Systems ST Blade Compact Fuse Block - 8 Circuits with Cover

ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

• Compact common source fuse block

• Accepts ATO and ATC fast acting blade fuses

• Single side entry wiring

• Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

• Insulating cover meets ABYC/USCG insulation requirements

• Tin-plated copper buses and fuse clips

• Accepts ring or snap fork type terminals

• Small format standard and custom labels available

Specifications

• Circuits:8

• Maximum Amperage: 100A per block / 30A per circuit

• Maximum Voltage:32V DC

• Mounting: #8 Screw (M4)

• Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5046 ST Blade Compact Fuse Block offers reliable circuit protection in a compact design, ideal for marine, automotive, and RV applications. This fuse block features a surface mount configuration that accommodates ATO and ATC fast-acting blade fuses, providing flexible and secure electrical connections. Its single side entry wiring design maximizes space efficiency by allowing wire entry from one side, simplifying installation in tight or crowded compartments. The fuse block is ignition protected, complying with ISO 8846 and SAE J1171 standards, making it suitable for use in gasoline engine compartments. The durable insulating cover meets ABYC and USCG insulation requirements, ensuring safety and compliance in marine environments. Constructed with tin-plated copper buses and fuse clips, it ensures excellent electrical conductivity and corrosion resistance. The fuse block accepts both ring and snap fork type terminals, offering versatility for different wiring needs. Small format standard and custom labels are available to facilitate clear circuit identification and maintenance. This product is rated for a maximum of 100 amps per block and 30 amps per circuit, with a maximum voltage of 32V DC, making it suitable for a variety of high-current applications. Mounting is straightforward using #8 screws (M4), with screw terminal torque specified for secure connections. The fuse block’s compact size and robust construction make it an excellent choice for space-constrained environments where reliable circuit protection is essential.

Features:

• Compact surface mount fuse block accepting ATO and ATC blade fuses

• Single side entry wiring for space-efficient installation

• Ignition protected, compliant with ISO 8846 and SAE J1171 standards

• Insulating cover meets ABYC and USCG insulation requirements

• Constructed with tin-plated copper buses and fuse clips for durability and corrosion resistance

• Accepts ring or snap fork terminal connections

• Rated for 100A per block and 30A per circuit at 32V DC

• Easy to mount with #8 screws (M4) and secure screw terminal connections

• Available with standard and custom labels for circuit identification
