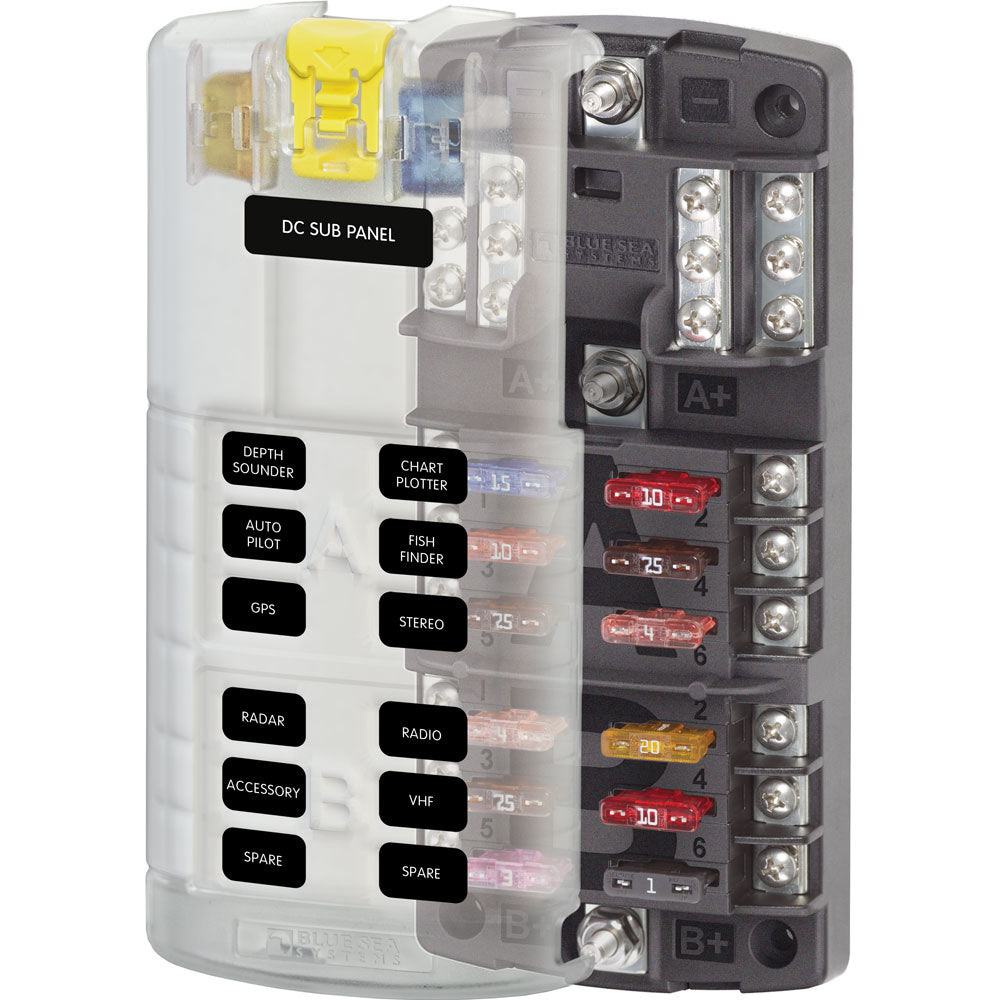

Blue Sea Systems ST-Blade Split Bus Fuse Block (Part #5032)

• Provides two isolated groups of six ATO/ATC circuits

• For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits

• Screw terminals for securing wires accept ring terminals

• One-piece stainless flange nuts ensure safe and secure connections

• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements

• Easy to open, push button latch for easy access to fuses

• Tin-plated copper buses and fuse clips

• Fuses sold separately

• Circuits: 12

• Maximum Amperage: 100A per block, 30A per circuit

• Maximum Voltage: 32V DC

• Mounting: #8 Screw (M4)

• Negative Bus: #10-32 Stud

• Screw Terminal Type: #8-32 Screws with captive star lock washer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems ST-Blade Split Bus Fuse Block (Part #5032) offers a reliable and organized solution for managing multiple circuits in marine and automotive applications. Designed to accommodate two isolated groups of six ATO/ATC circuits, this fuse block is ideal for systems with dual batteries or mixed circuits from a single battery, providing flexibility and safety. The fuse block features screw terminals that accept ring terminals, ensuring secure connections with stainless flange nuts for added durability and safety. Its clear insulating cover includes label recesses and storage for two fuses, satisfying ABYC and USCG insulation standards, and is easily accessible via a push-button latch for quick fuse replacement. Constructed with tin-plated copper buses and fuse clips, it ensures excellent electrical conductivity and corrosion resistance. The fuse block supports up to 100 amps per block and 30 amps per circuit, with a maximum voltage of 32V DC, making it suitable for a variety of demanding electrical systems. Mounting is straightforward with #8 screws (M4), and the negative bus features a #10-32 stud for grounding. This fuse block is an essential component for safe and organized circuit management, combining robust construction with user-friendly features. Please note that fuses are sold separately. Designed by Blue Sea Systems, this fuse block is compliant with industry safety standards and offers a dependable solution for complex electrical setups.

Features:

• Provides two isolated groups of six ATO/ATC circuits

• Suitable for dual battery systems or mixed circuits from a single battery

• Screw terminals accept ring terminals for secure wiring

• One-piece stainless flange nuts for safe connections

• Clear insulating cover with label recesses and fuse storage, meets ABYC/USCG standards

• Push-button latch for easy fuse access

• Tin-plated copper buses and fuse clips for corrosion resistance and conductivity

• Fuses sold separately
