Blue Sea Systems ST CLB Circuit Breaker Block - 6 Independent Circuits

Blue Sea ST CLB Circuit Breaker Block - 6 Independant Circuits

The Blue Sea Systems ST CLB Circuit Breaker Block offers a reliable and easy-to-install solution for protecting multiple electrical circuits in marine and other vehicle applications. Designed with six independent circuits, it features quick connect clips that allow circuit breakers to snap into place effortlessly, simplifying installation and maintenance. The device is equipped with tin-plated copper busbars and screw terminals to ensure robust electrical connections and durability over time.

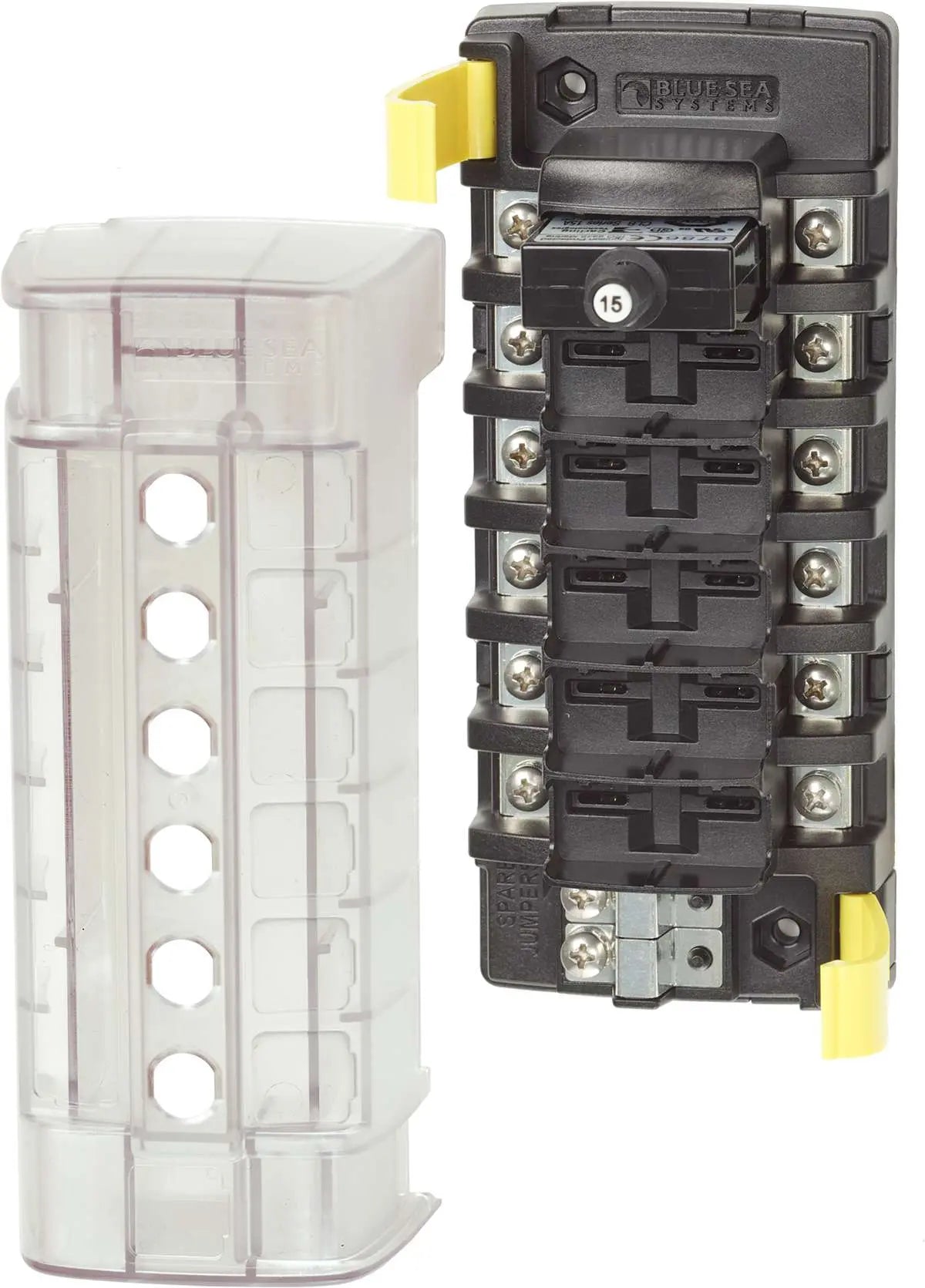

A clear insulating cover with square format label recesses enhances safety and organization, satisfying ABYC and USCG insulation standards. The easy-to-open clip-on cover provides quick access for troubleshooting or circuit adjustments, while breakout sections facilitate wire access in two directions, accommodating various wiring configurations. Accepting ring terminals, the breaker block is versatile and compatible with common marine wiring practices. Optional waterproof boots or dress nuts can be installed over the cover, adding an extra layer of protection against moisture and environmental elements.

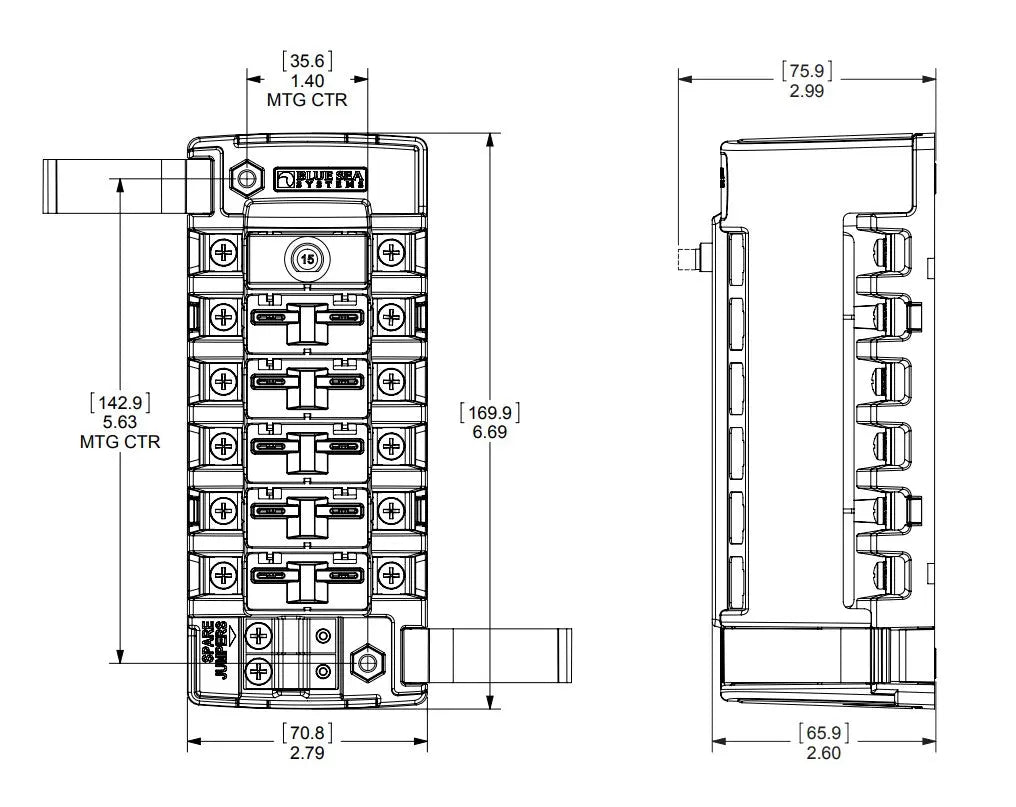

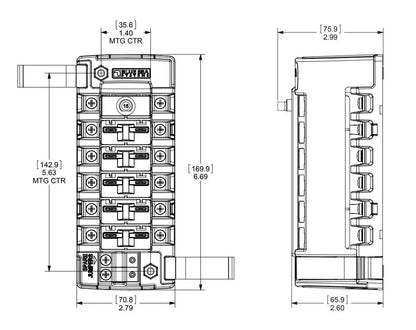

The Blue Sea ST CLB Circuit Breaker Block supports circuit protection with a maximum of 32 amps per circuit and 40 amps for jumped circuit groups, operating at a maximum voltage of 32V DC. Its compact surface-mount design measures approximately 5.63 inches in mounting center spacing, making it suitable for confined spaces. The device is ideal for use in conjunction with waterproof switching panels, such as the WD Switch Only Panel, to ensure circuits remain protected from spray and accidental switching. This product provides a cost-effective and user-friendly alternative to traditional fuses, combining the convenience of resettable circuit protection with straightforward installation, ultimately enhancing electrical system safety and reliability.
Please note that this product contains chemicals known to the State of California to cause cancer and reproductive harm. Proper handling and disposal are advised to ensure safety and compliance.

Features:

• Quick connect clips allow circuit breakers to snap easily into place

• Tin-plated copper busbars and screw terminals for durable electrical connections

• Clear insulating cover with square label recesses satisfies ABYC/USCG insulation requirements

• Easy to open clip-on cover for quick access

• Breakouts enable wire access in two directions

• Accepts ring terminals for versatile wiring connections

• Optional waterproof boots or dress nuts can be installed over the cover for added moisture protection

• Supports up to 6 circuits with a maximum of 32 amps per circuit

• Compact surface-mount design with 5.63-inch mounting centers

• Operates at a maximum of 32V DC with independent source protection
