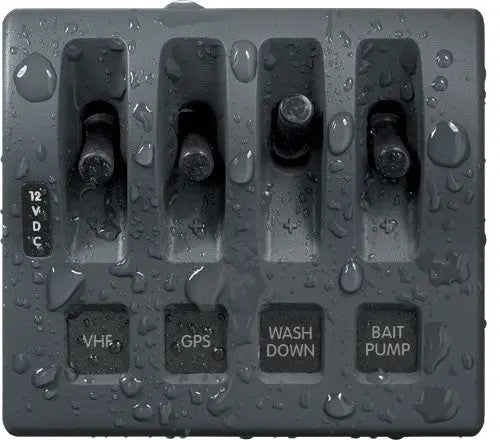

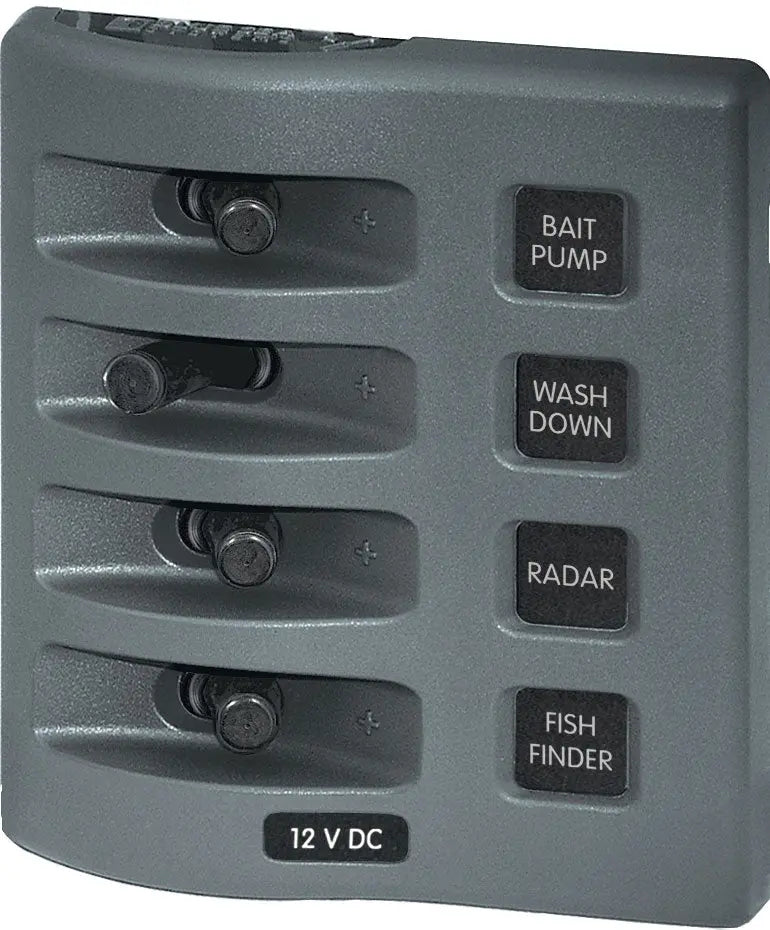

Blue Sea Systems WeatherDeck 12V 4-Gang Waterproof Switch Panel Model 4305-BSS

Blue Sea Weather Deck Panel 12v 4 Gang Switch Panel

The Blue Sea Systems WeatherDeck(R) 12V DC Waterproof Switch Panel (Model 4305-BSS) provides a reliable solution for marine environments requiring durable, waterproof switch control. Crafted with reinforced polycarbonate, this panel features four switch positions that are protected against immersion up to 1 meter for 30 minutes, thanks to its IP67 rating. The integrated switch guards help prevent accidental activation, ensuring safe operation in harsh conditions. Its UV-stabilized faceplate snaps on and off easily for maintenance access while concealing mounting screws for a clean appearance. Designed for boats exposed to sun, salt, and water, this panel eliminates the need for elaborate circuit protection or backlighting, making it an economical choice for small vessels that do not operate at night or require complex electrical protection. Its versatile mounting options allow installation in four orientations, providing flexibility for various dashboard layouts and configurations. The panel's compact dimensions make it suitable for tight spaces, and its robust construction ensures long-term performance in demanding environments. Included in the package are four boots, four toggle switches, and a label kit, enabling quick installation and customization. Whether used as a standalone switch panel or integrated into an existing system, the WeatherDeck(R) 12V 4-Gang Switch Panel offers dependable waterproof operation, making it ideal for marine applications where durability and reliability are paramount.

Features:

• Integrated switch guards reduce the risk of accidental switching

• Panels can be mounted in four different orientations

• Front rated IP67 when properly mounted with watertight gasket

• Protected against immersion up to 1 meter for 30 minutes

• UV stabilized weather-resistant faceplate with snap-on design

• Made from reinforced polycarbonate for durability

• Suitable for 12V and 24V DC systems

• Maximum current per circuit: 15A at 12V DC

• Cumulative panel rating of 45A

• Includes four boots, four toggle switches, and label kit
