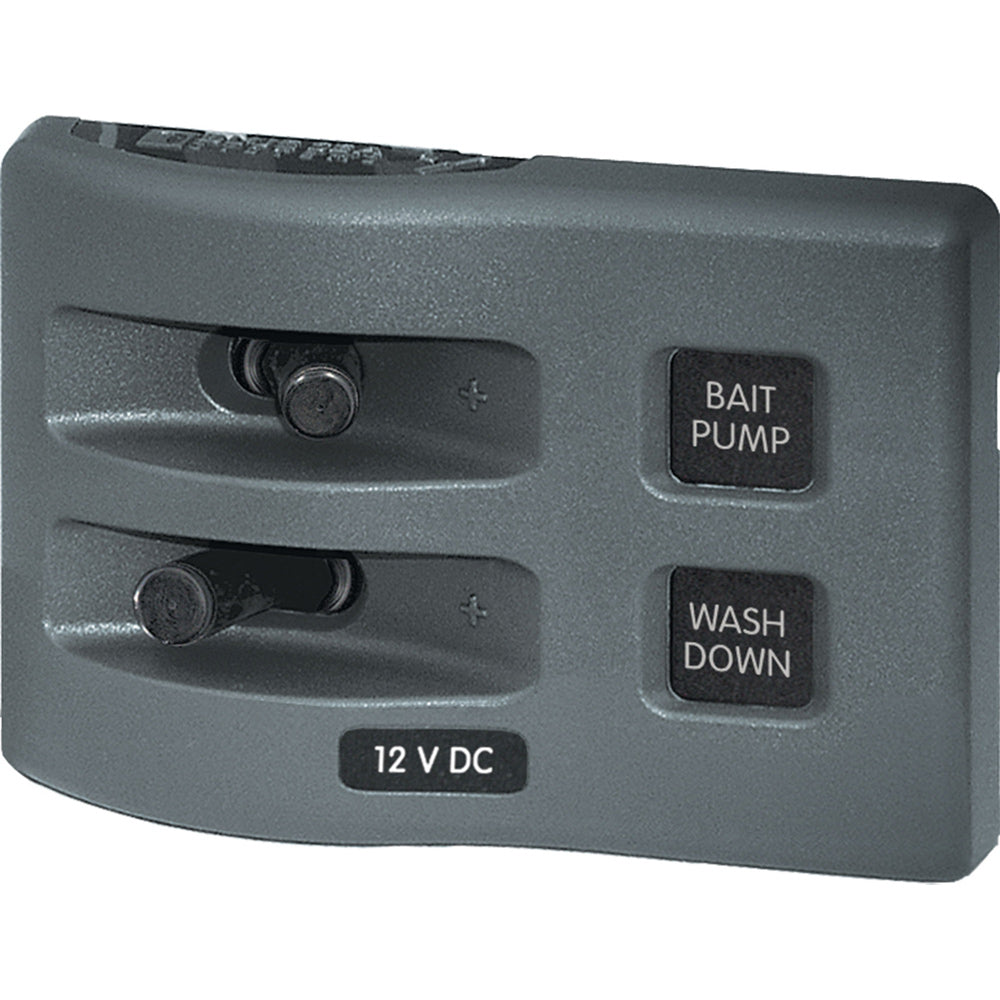

Blue Sea Systems WeatherDeck 12V DC Waterproof Switch Panel - 2 Position

WeatherDeck 12V DC Waterproof Switch Panel - 2 Position

• Integrated switch guards reduce the risk of accidental switching

• Panels can be mounted in four different orientations

• Panel front rated IP67 when properly mounted with watertight mounting gasket

• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions: 2
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Material: Reinforced Polycarbonate
Height: 2.60"(66.04 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 0.52lb (0.24 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems WeatherDeck 4303 switch panel offers reliable, waterproof control for your 12V or 24V DC systems. Crafted from reinforced polycarbonate, this panel features a UV stabilized, weather-resistant faceplate that snaps on and off easily, providing quick access to internal components while concealing mounting screws for a clean installation. Its IP67 rating ensures protection against water ingress when properly mounted with the included watertight gasket, making it ideal for marine, RV, or outdoor applications. The panel's integrated switch guards reduce accidental activation, enhancing operational safety and durability. Designed for versatile installation, the panel can be mounted in four different orientations, providing flexibility to suit your specific setup. With a maximum continuous current of 15 amps per circuit, it supports a range of electrical needs while maintaining a compact profile. The WeatherDeck switch panel's dimensions and lightweight construction make it easy to install without adding unnecessary bulk, ensuring a seamless integration into your control panel or dashboard.

This switch panel is engineered for durability and ease of use, featuring two toggle positions for simple on/off control. Its robust construction and waterproof design ensure long-lasting performance even in harsh environments. Whether you're upgrading your boat, RV, or outdoor equipment, the WeatherDeck 4303 provides a dependable switch solution that combines convenience, safety, and weather resistance. For detailed installation instructions and safety information, refer to the owner’s manual available online. Trust Blue Sea Systems for quality electrical components designed to perform in demanding conditions and safeguard your electrical systems effectively.

Features:

• Integrated switch guards to prevent accidental switching

• Four mounting orientation options for versatile installation

• IP67 front rating with watertight gasket for water resistance

• UV stabilized, weather-resistant faceplate that snaps on and off

• Supports 12V DC and 24V DC systems with a maximum of 15A per circuit
