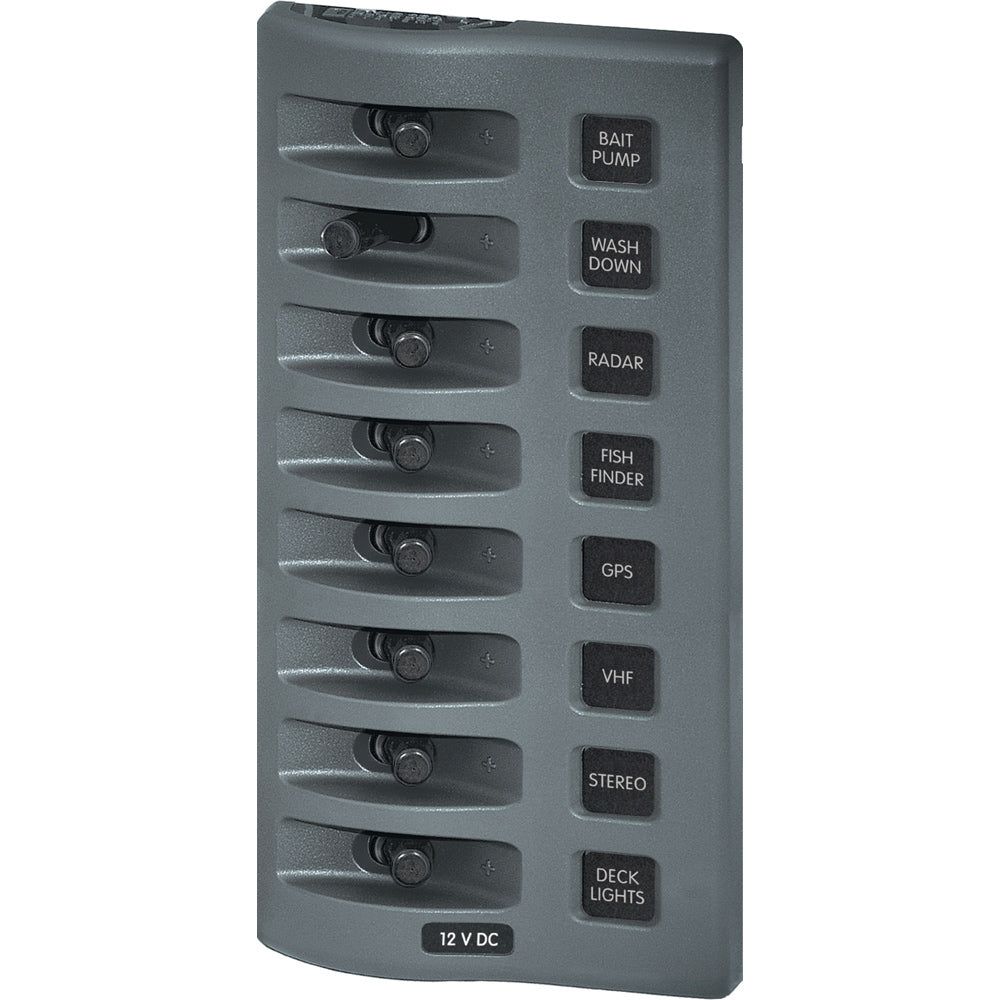

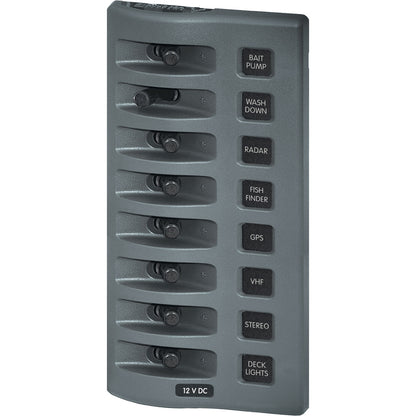

Blue Sea Systems WeatherDeck 12V DC Waterproof Switch Panel - 8 Position

WeatherDeck 12V DC Waterproof Switch Panel - 8 Position

• Integrated switch guards reduce the risk of accidental switching

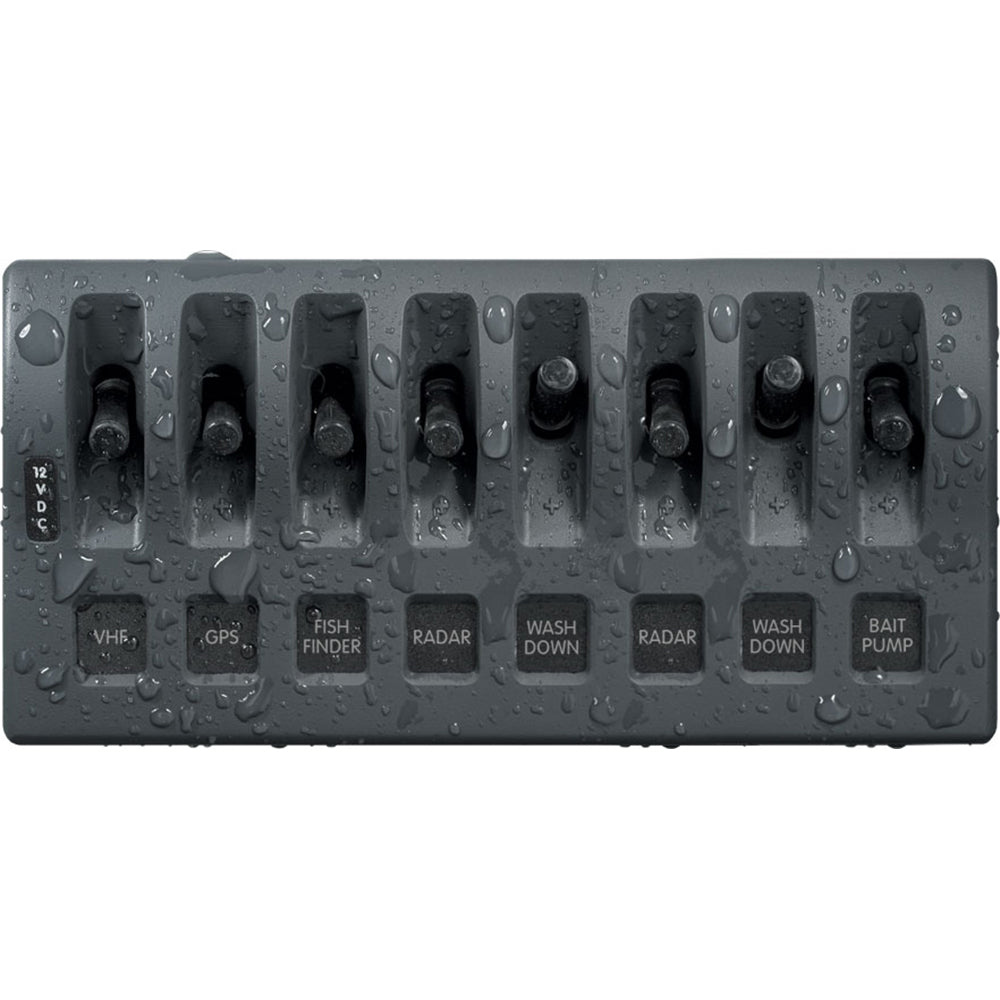

• Panels can be mounted in four different orientations

• Panel front rated IP67 when properly mounted with watertight mounting gasket

• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions: 8
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 7.70"(195.58 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 1.55lb (0.7 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems WeatherDeck 12V DC Waterproof Switch Panel (Part Number 4309) offers a reliable solution for controlling multiple circuits in marine and outdoor applications. Designed with integrated switch guards, this panel helps prevent accidental activation, ensuring safe operation in demanding environments. Its versatile mounting options allow installation in four different orientations, accommodating various panel configurations. The front face is rated IP67 when properly mounted with a watertight gasket, providing excellent protection against water ingress and dust, making it suitable for harsh weather conditions. The UV-stabilized, weather-resistant faceplate is designed with a snap-on, snap-off feature, allowing easy access to internal components and concealment of mounting screws for a clean, professional appearance. Constructed from reinforced polycarbonate, the panel combines durability with lightweight design, ensuring long-lasting performance in rugged environments. The panel supports up to 15 amps per circuit at 12V DC, with a total cumulative rating of 45 amps, making it capable of handling multiple accessories and devices. Its compact dimensions and robust build make it an ideal choice for boat, RV, or off-grid power systems. This panel does not include circuit protection features, so appropriate fusing or circuit breakers should be installed separately. The WeatherDeck switch panel's rugged construction and weatherproof features help safeguard your electrical system from the elements, providing peace of mind during outdoor or marine use. Please note that this product may contain chemicals known to cause reproductive harm under California law; more information can be found at P65Warnings.gov. For detailed installation instructions and maintenance, refer to the owner’s manual available online.

Features:

• Integrated switch guards reduce the risk of accidental switching

• Four mounting orientations for flexible installation

• IP67 front rating with waterproof gasket for water and dust resistance

• UV stabilized, weather-resistant faceplate with snap-on, snap-off access

• Supports up to 15A per circuit at 12V DC, with a total rating of 45A

• Constructed from reinforced polycarbonate for durability

• Compact dimensions suitable for tight installation spaces

• Designed for outdoor and marine environments with weatherproof features
