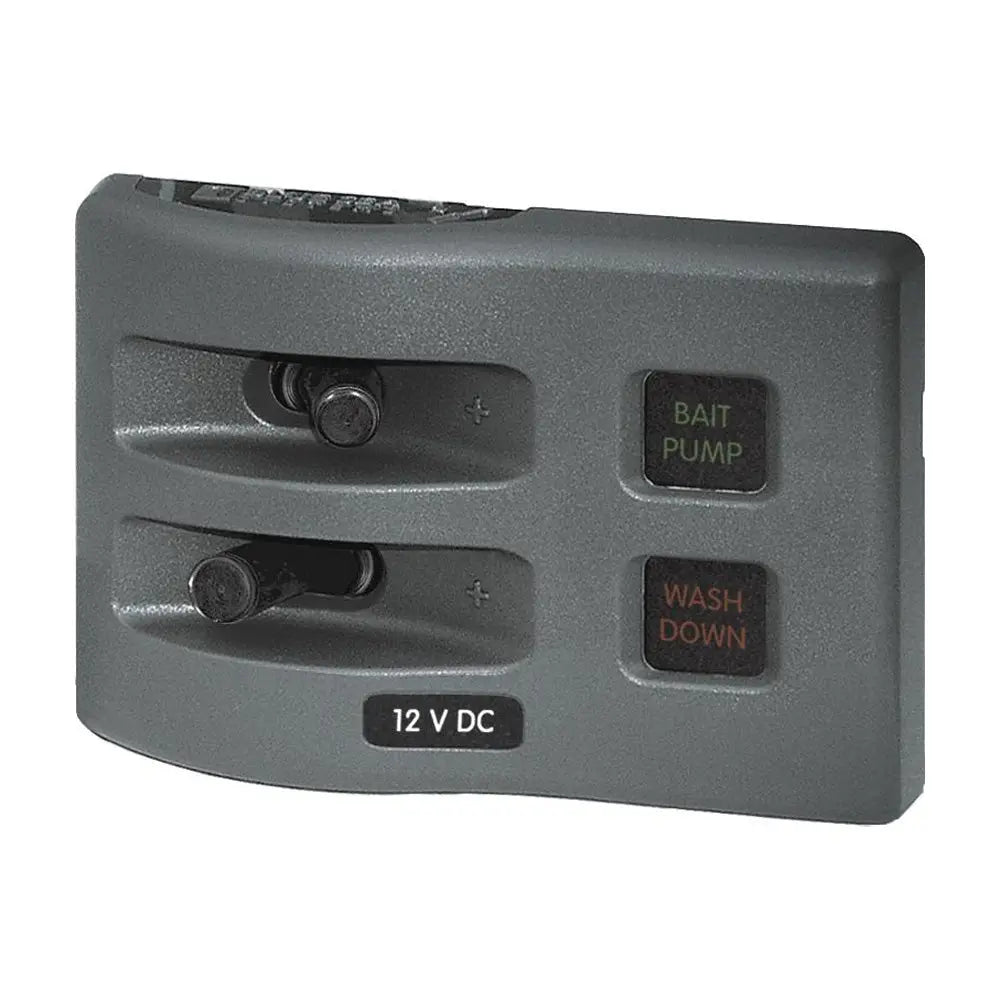

Blue Sea Systems WeatherDeck 4302 Water Resistant Fuse Panel - 2 Position, Gray

WeatherDeck Water Resistant Fuse Panel

PN: 4302

Color: Gray

Features:

• Panel front rated IP67 when properly mounted with watertight mounting gasket
• IP67 protected against immersion up to 1 meter for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label back lighting circuit for remote switching and dimming
• Each panel can be mounted in four different orientations
• Integrated ATO/ATC fuse based circuit protection
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:

• Weatherproof: Waterproof
• Positions: 2
• Nominal Voltage: 12v DC
• Circuit Protection: Fuse
• Maximum Amperage: 15A @ 12v DC (per circuit)
• Panel Cumulative Rating: 30A
• Backlit Label: Bicolored LED
• Backlighting Amperage: 10mA/illuminated Circuit
• Backlighting Voltage: 12v DC
• Height: 2.6"
• Width: 3.88"
• Depth: 2.5"

Included:

• (2) 4150 WeatherDeck Toggle Switch SPST - ON-OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• (2) 5242 ATO/ATC Fuse - 15 Amp

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems WeatherDeck 4302 fuse panel is designed for marine environments where reliable waterproof protection is essential. Featuring an IP67 front rating when properly mounted with the included watertight gasket, this panel is protected against water immersion up to 1 meter for 30 minutes, making it ideal for flybridge and open cockpit applications. Its durable gray enclosure ensures longevity and resistance to harsh weather conditions. The panel supports two circuit positions, each rated for a maximum of 15 amps at 12 volts DC, with a combined maximum rating of 30 amps for the entire panel. Integrated fuse-based circuit protection offers a reliable safeguard against overloads and short circuits, ensuring your electrical system remains secure. The panel includes backlit, bicolored LED labels that illuminate red for OFF, green for ON, or no color for blown fuses, allowing quick and clear circuit status identification. Each panel can be mounted in four different orientations, providing flexible installation options to suit various vessel layouts. An independent label backlighting circuit enables remote switching and dimming, enhancing operational convenience. The package includes two 4150 WeatherDeck toggle switches, a waterproof DC label kit with black square labels, and two 15-amp ATO/ATC fuses for immediate installation. Designed specifically for marine use, the WeatherDeck 4302 fuse panel combines durability, versatility, and safety features, making it an excellent choice for boat electrical systems requiring waterproof and reliable circuit management.

Features:

• IP67 front rating for waterproof protection when properly mounted with gasket

• Protection against immersion in water up to 1 meter for 30 minutes

• Suitable for flybridge and open cockpit applications

• Independent label backlighting circuit for remote switching and dimming

• Can be mounted in four different orientations

• Integrated ATO/ATC fuse-based circuit protection

• Bicolored LED indicators for quick circuit status identification
