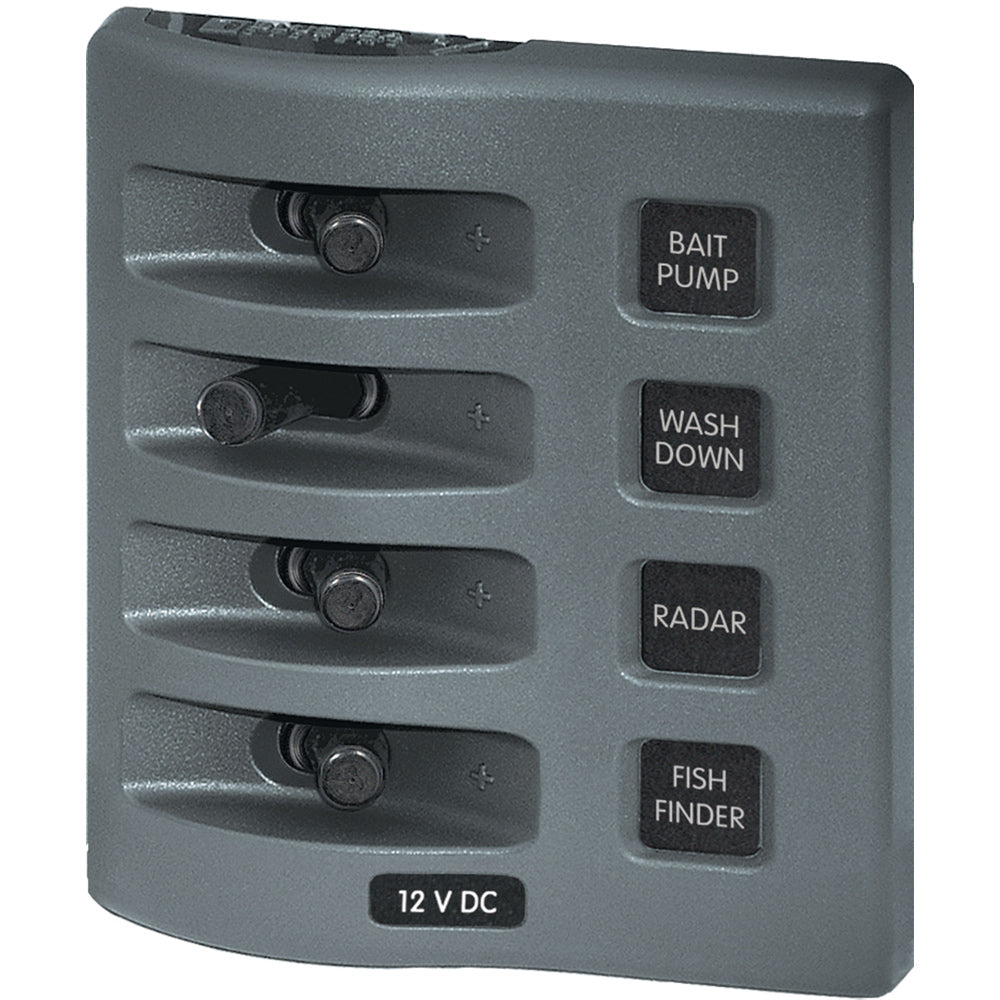

Blue Sea Systems WeatherDeck 4305 12V DC Waterproof Switch Panel - 4 Position

WeatherDeck 12V DC Waterproof Switch Panel - 4 Position

• Integrated switch guards reduce the risk of accidental switching

• Panels can be mounted in four different orientations

• Panel front rated IP67 when properly mounted with watertight mounting gasket

• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions: 4
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 4.30"(109.22 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 0.90lb (0.41 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems WeatherDeck 4305 switch panel is designed for reliable control in demanding environments. Crafted from reinforced polycarbonate, this panel offers durability and resistance against harsh weather conditions, making it ideal for marine, RV, and other outdoor applications. Its IP67 rating ensures the front face remains waterproof when properly mounted with the provided watertight gasket, protecting your electrical components from moisture and debris. The UV-stabilized faceplate snaps on and off for easy access to internal components and concealed mounting screws, maintaining a clean and professional appearance.
Equipped with four switch positions, the WeatherDeck panel allows you to control multiple circuits simultaneously. Integrated switch guards help prevent accidental activation, enhancing safety and operational reliability. The panel supports a maximum current of 15 amps per circuit at 12V DC and has a cumulative rating of 45 amps, suitable for a variety of power management needs. Its versatile mounting options enable installation in four different orientations, providing flexibility to suit your specific setup.
This compact switch panel measures approximately 4.3 inches high, 3.9 inches wide, and 2.5 inches deep, with a lightweight design at just over 0.9 pounds. The panel operates at nominal voltages of 12V DC and 24V DC, making it compatible with a broad range of systems. With no circuit protection built-in, proper wiring and circuit protection devices should be used to ensure safe operation. For detailed installation instructions and safety information, refer to the owner’s manual linked here: Blue Sea Systems WeatherDeck 4305 Manual.
Note that this product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which is recognized by California for potential health risks. For more information, visit P65Warnings.ca.gov.

Features:

• Integrated switch guards reduce accidental switching

• Four mounting orientations for versatile installation

• IP67 rated front face for waterproof protection when properly mounted

• UV stabilized weather-resistant faceplate for durability and easy access

• Supports up to 15A per circuit at 12V DC with a total rating of 45A

• Made from reinforced polycarbonate for enhanced strength

• Compact design measuring approximately 4.3 inches high and 3.9 inches wide

• Supports nominal voltages of 12V DC and 24V DC
