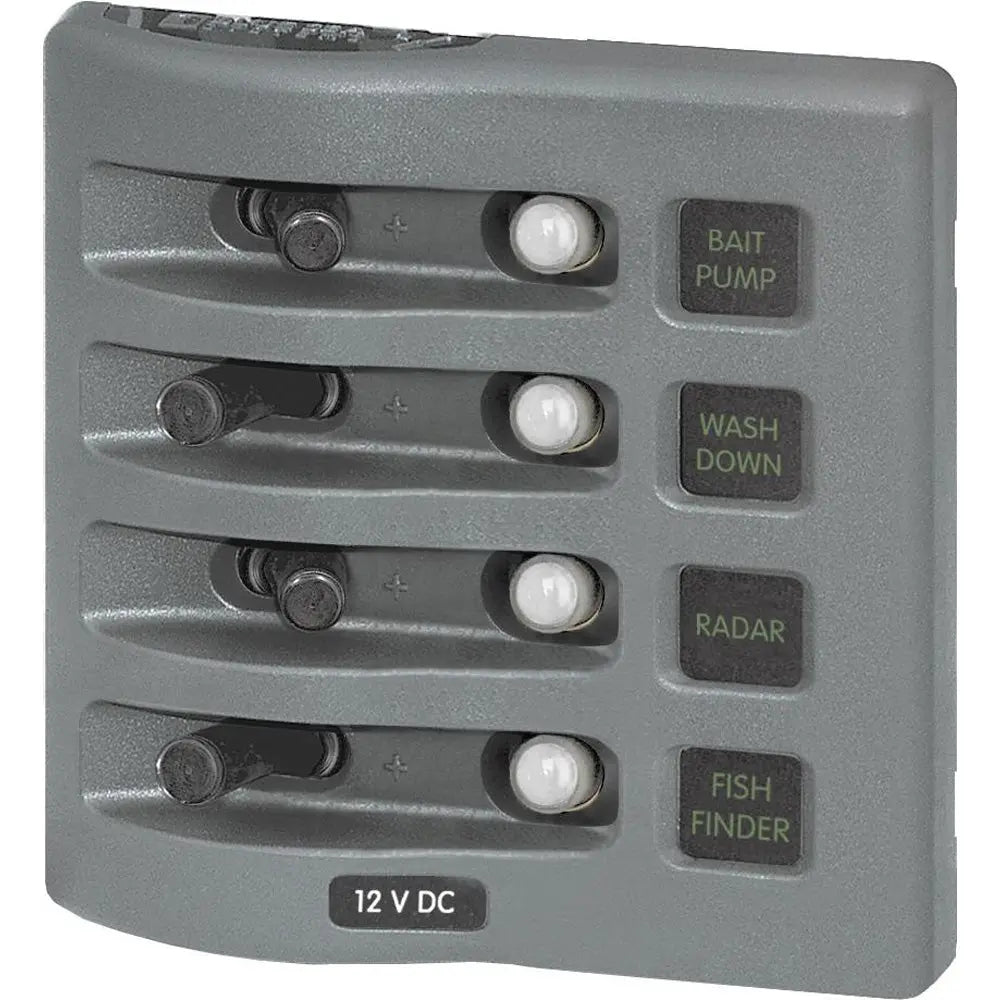

Blue Sea Systems WeatherDeck Water Resistant Circuit Breaker Panel - 4 Position, Gray, PN 4374

WeatherDeck Water Resistant Circuit Breaker Panel

PN: 4374

Color: Gray

Features:

• Rated IP67-temporary immersion for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• Each panel can be mounted in four different orientations
• Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications:

• Weatherproof: Waterproof
• Positions: 4
• Nominal Voltage: 12v / 24v DC
• Circuit Protection: Circuit Breaker
• Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)
• Panel Cumulative Rating: 45A
• Backlit Label: Green LED
• Backlighting Amperage: 10mA/Illuminated Circuit
• Backlighting Voltage: 12 or 24v DC
• Height: 4.3"
• Width: 4.25"
• Depth: 3.5"

Included:

• (4) 4135 Push Button Reset Only Circuit Breaker Boot - Clear
• (4) 4138 WeatherDeck Toggle Switch Boot - Black
• (4) 4150 WeatherDeck Toggle Switch SPST - ON-OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• (4) 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems WeatherDeck Water Resistant Circuit Breaker Panel (PN: 4374) is designed for marine environments requiring reliable, waterproof circuit protection. Constructed with durability in mind, this panel features an IP67 rating, allowing for temporary immersion in water for up to 30 minutes, making it ideal for flybridge and open cockpit applications where exposure to moisture is common. Its gray enclosure provides a sleek appearance while maintaining high visibility and ease of use in various lighting conditions. This panel's robust design ensures long-lasting performance in harsh marine environments, giving boaters peace of mind during their voyages.
Equipped with four circuit positions, it supports a maximum of 15A at 12V DC or 9A at 24V DC per circuit, with a cumulative rating of 45A. The integrated circuit breakers provide reliable overload protection, while the independently backlit labels, illuminated with green LEDs, enhance readability in low-light conditions. The labels can be switched and dimmed individually, providing customizable visibility, and all labels are illuminated when the panel is powered, regardless of switch position. The panel's versatile mounting options allow installation in four different orientations, adapting easily to various boat layouts.
Included with the WeatherDeck panel are four 4135 push button reset circuit breaker boots, four WeatherDeck toggle switch boots in black, four SPST toggle switches with ON-OFF positions, a waterproof DC label kit with 30 black square labels, and four 7056 quick-connect circuit breakers rated for 15 amps. This comprehensive package ensures simple installation and maintenance, making it a dependable choice for marine electrical systems. Whether upgrading an existing setup or installing a new system, the Blue Sea Systems WeatherDeck Panel provides a durable, waterproof solution with flexible mounting and clear, illuminated labeling for easy operation in any marine environment.

Features:

• Rated IP67 for temporary immersion, suitable for wet environments

• Designed specifically for flybridge and open cockpit applications

• Independent label backlighting with switchable and dimmable green LEDs

• Compatible with all Blue Sea Systems Digital Dimmers

• Four mounting orientations for flexible installation

• Illuminated labels visible in low-light conditions with all labels lit when powered
