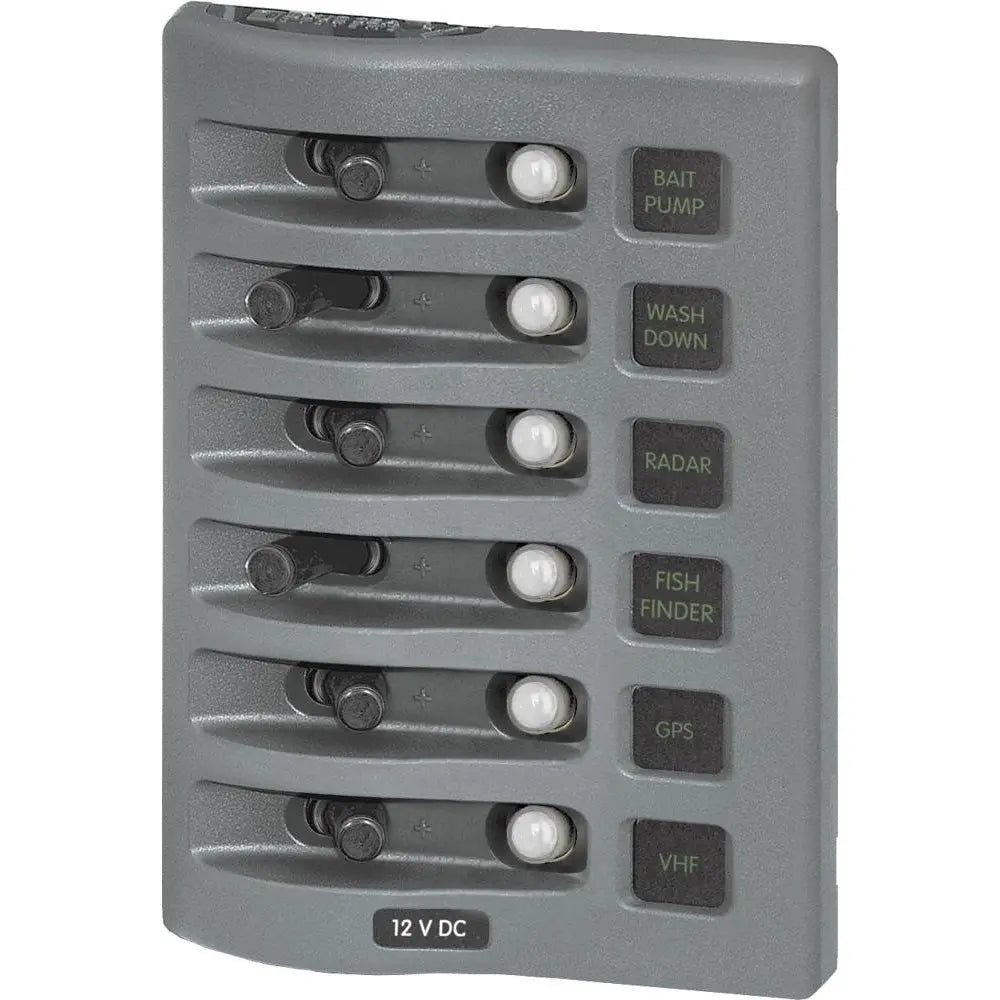

Blue Sea Systems WeatherDeck Water-Resistant Circuit Breaker Panel - 6 Positions, Gray

WeatherDeck Water Resistant Circuit Breaker Panel

PN: 4376

Color: Gray

Features:

• Rated IP67-temporary immersion for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• Each panel can be mounted in four different orientations
• Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications:

• Weatherproof: Waterproof
• Positions: 6
• Nominal Voltage: 12v / 24v DC
• Circuit Protection: Circuit Breaker
• Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)
• Panel Cumulative Rating: 45A
• Backlit Label: Green LED
• Backlighting Amperage: 10mA/Illuminated Circuit
• Backlighting Voltage: 12 or 24v DC
• Height: 6.0"
• Width: 4.25"
• Depth: 3.5"

Included:

• (6) 4135 Push Button Reset Only Circuit Breaker Boot - Clear
• (6) 4138 WeatherDeck Toggle Switch Boot - Black
• (6) 4150 WeatherDeck Toggle Switch SPST - ON-OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• (6) 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems WeatherDeck Water-Resistant Circuit Breaker Panel (Part Number: 4376) offers reliable electrical protection for marine and outdoor applications. Designed in a sleek gray finish, this panel features a rugged construction rated IP67, providing temporary immersion resistance for up to 30 minutes. Its waterproof design makes it ideal for flybridge and open cockpit setups where exposure to moisture and water splashes is common. The panel accommodates six circuits, each protected by a circuit breaker rated at 15A for 12V DC systems or 9A for 24V DC systems, with a total capacity of 45A. Its sturdy construction ensures durability and consistent performance even in harsh marine environments.

Equipped with independent label backlighting, the WeatherDeck panel allows easy switching and dimming, enhancing visibility in low-light conditions. The panel's green LEDs improve readability in dim settings, and all labels are illuminated when the panel is powered, regardless of individual switch positions. Compatibility with all Blue Sea Systems Digital Dimmers provides users with flexible lighting control options. The panel can be mounted in four different orientations, offering versatile installation options to suit various boat layouts. Its compact dimensions make it suitable for tight spaces without compromising functionality.

Included with the panel are six 4135 push-button reset circuit breaker boots, six WeatherDeck toggle switch boots in black, six SPST ON-OFF WeatherDeck toggle switches, a waterproof DC label kit with 30 black square labels, and six 15A quick-connect circuit breakers. These accessories facilitate easy installation and maintenance, ensuring a secure and organized electrical system. The panel's design emphasizes safety, durability, and ease of use, making it a dependable choice for marine electrical systems that demand water resistance and reliable circuit protection.

Note that this product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which has been linked to health concerns. For more information, visit P65Warnings.ca.gov. Overall, the Blue Sea Systems WeatherDeck Panel combines waterproof protection, flexible mounting options, and user-friendly features to support safe and efficient marine electrical setups.

Features:

• Rated IP67 for temporary immersion up to 30 minutes

• Designed for flybridge and open cockpit applications

• Independent label backlighting with switch and dimming control

• Compatible with Blue Sea Systems Digital Dimmers

• Mountable in four orientations for versatile installation

• Green LEDs for enhanced low-light readability, labels illuminated when powered

• Six circuit positions with 15A/9A circuit breakers for 12V/24V systems

• Total panel capacity of 45A for robust power management

• Includes waterproof DC label kit and various mounting accessories

• Durable gray waterproof enclosure built for marine environments
