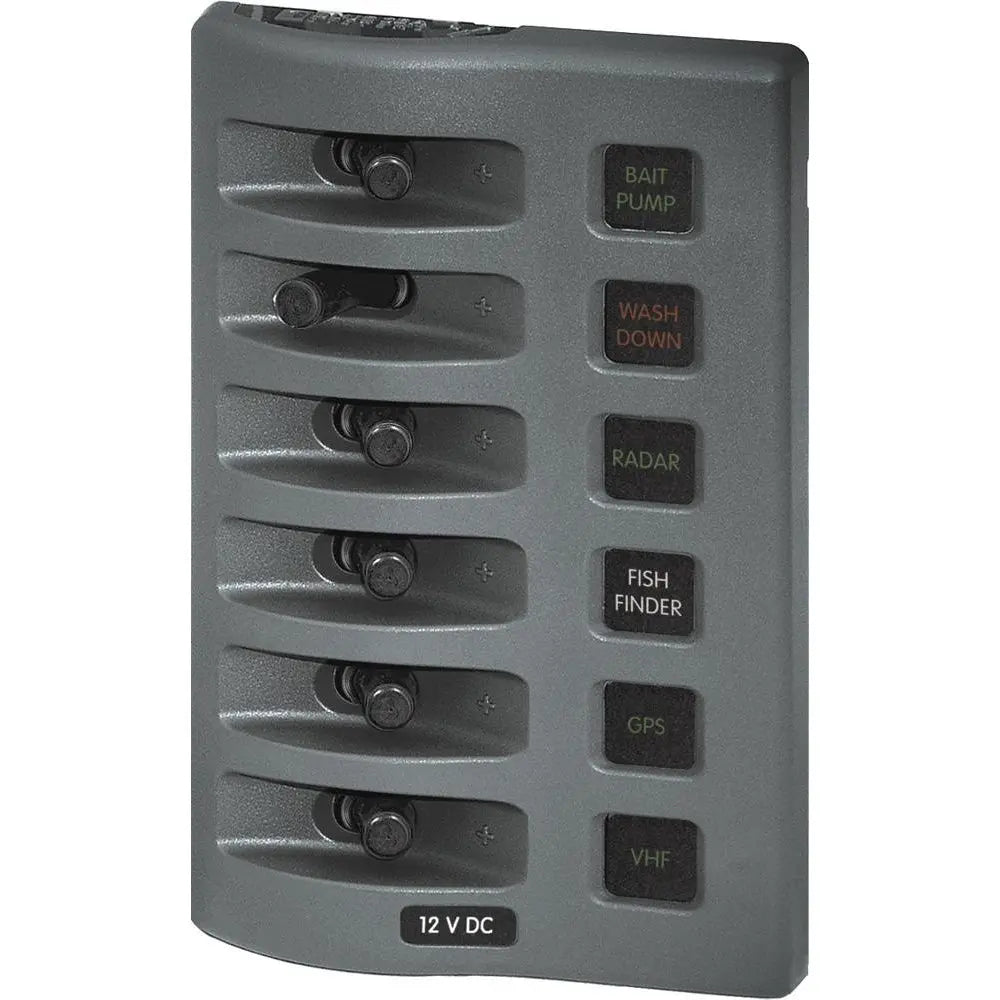

Blue Sea Systems WeatherDeck Water-Resistant Fuse Panel, 6-Position, Gray (Part #4306)

WeatherDeck Water Resistant Fuse Panel

PN: 4306

Color: Gray

Features:

• Panel front rated IP67 when properly mounted with watertight mounting gasket
• IP67 protected against immersion up to 1 meter for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label back lighting circuit for remote switching and dimming
• Each panel can be mounted in four different orientations
• Integrated ATO/ATC fuse based circuit protection
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications:

• Weatherproof: Waterproof
• Positions: 6
• Nominal Voltage: 12v DC
• Circuit Protection: Fuse
• Maximum Amperage: 15A @ 12v DC (per circuit)
• Panel Cumulative Rating: 90A
• Backlit Label: Bicolored LED
• Backlighting Amperage: 10mA/illuminated Circuit
• Backlighting Voltage: 12v DC
• Height: 6.0"
• Width: 3.88"
• Depth: 2.5"

Included:

• (6) 4138 WeatherDeck Toggle Switch Boot - Black
• (6) 4150 WeatherDeck Toggle Switch SPST - ON-OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• (6) 5242 ATO/ATC Fuse - 15 Amp

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems WeatherDeck Water-Resistant Fuse Panel, part number 4306, offers reliable electrical management for marine environments. Designed with durability in mind, this gray fuse panel features an IP67 rating when properly mounted with a watertight gasket, ensuring protection against water immersion up to 1 meter for 30 minutes. Its rugged construction makes it ideal for flybridge and open cockpit applications where exposure to the elements is common. The panel supports six circuits with independent backlit labels illuminated by bicolored LEDs, allowing for quick circuit status identification: red for OFF, green for ON, and no color for blown or no power circuits. This feature facilitates efficient troubleshooting and system monitoring. The fuse-based circuit protection includes integrated ATO/ATC fuses rated at 15 amps per circuit, with a total panel capacity of 90 amps, providing safe and reliable power management. Each circuit supports a maximum of 15 amps at 12 volts DC, suitable for most marine electrical needs. The panel can be mounted in four different orientations, offering versatile installation options to fit various vessel configurations. The design includes a dedicated circuit for remote switching and dimming, enhancing user control and flexibility. The package includes six weatherproof toggle switch boots, six SPST ON-OFF switches, a waterproof label kit with 30 black square labels, and six 15-amp ATO/ATC fuses, ensuring comprehensive setup and maintenance support. With a compact profile, measuring approximately 6 inches high, 3.88 inches wide, and 2.5 inches deep, the WeatherDeck fuse panel provides a robust solution for marine electrical systems. Its durable construction and waterproof features make it a dependable choice for ensuring electrical safety and efficiency in challenging marine environments.

Features:

• Panel front rated IP67 for water resistance when properly mounted with gasket

• Protected against immersion up to 1 meter for 30 minutes

• Designed specifically for flybridge and open cockpit applications

• Independent label backlighting with bicolored LEDs for circuit status indication

• Supports four mounting orientations for flexible installation

• Integrated ATO/ATC fuse-based circuit protection rated at 15 amps per circuit

• Includes waterproof toggle switch boots and black labels for easy identification

• Supports 6 circuits with a total panel rating of 90 amps

• Backlit labels illuminate with 10mA/12V DC power, enhancing visibility in low light

• Constructed to withstand harsh marine environments with waterproof and durable design
