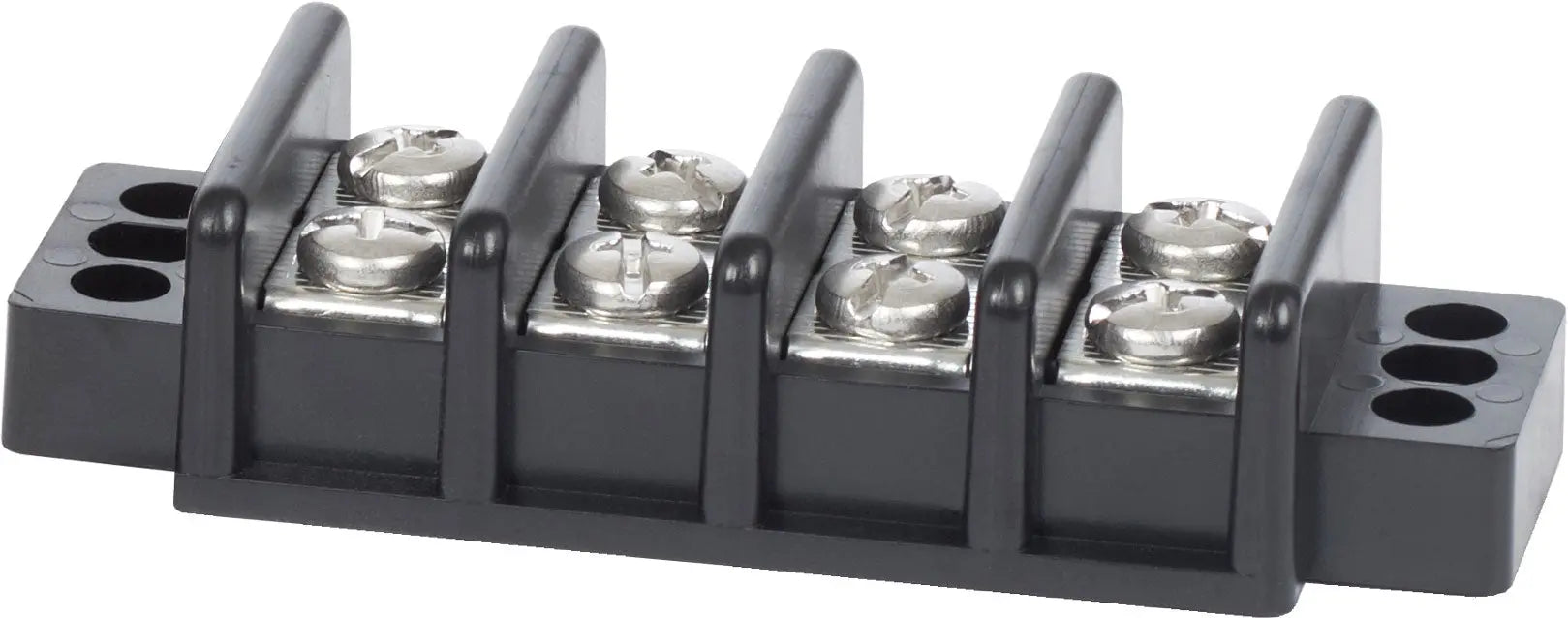

Blue Sea Terminal Block 30A 4 Circuit

Blue Sea Terminal Block 30A 4 Circuit

Blue Sea Systems Terminal Block 30A - 4 Circuit

• Closed back design completely insulates power from the mounting surface


• Each screw pair is one isolated circuit


• Jumpers allow creation of common circuits

Circuits
4

Length
3.25in (82.55 mm)

Maximum Voltage
600V AC/DC

Continuous Rating
30A

Base Material
UL 94 V0, PC

Bus Material
Nickel-Plated Brass

Mounting Screw
#10 [M5]

Screw Material
Stainless Steel

Screw Terminal Torque
10 in-lb (1.13 Nm)

Terminal Screws
M4

Wire Terminal Size
#8 [M4]
