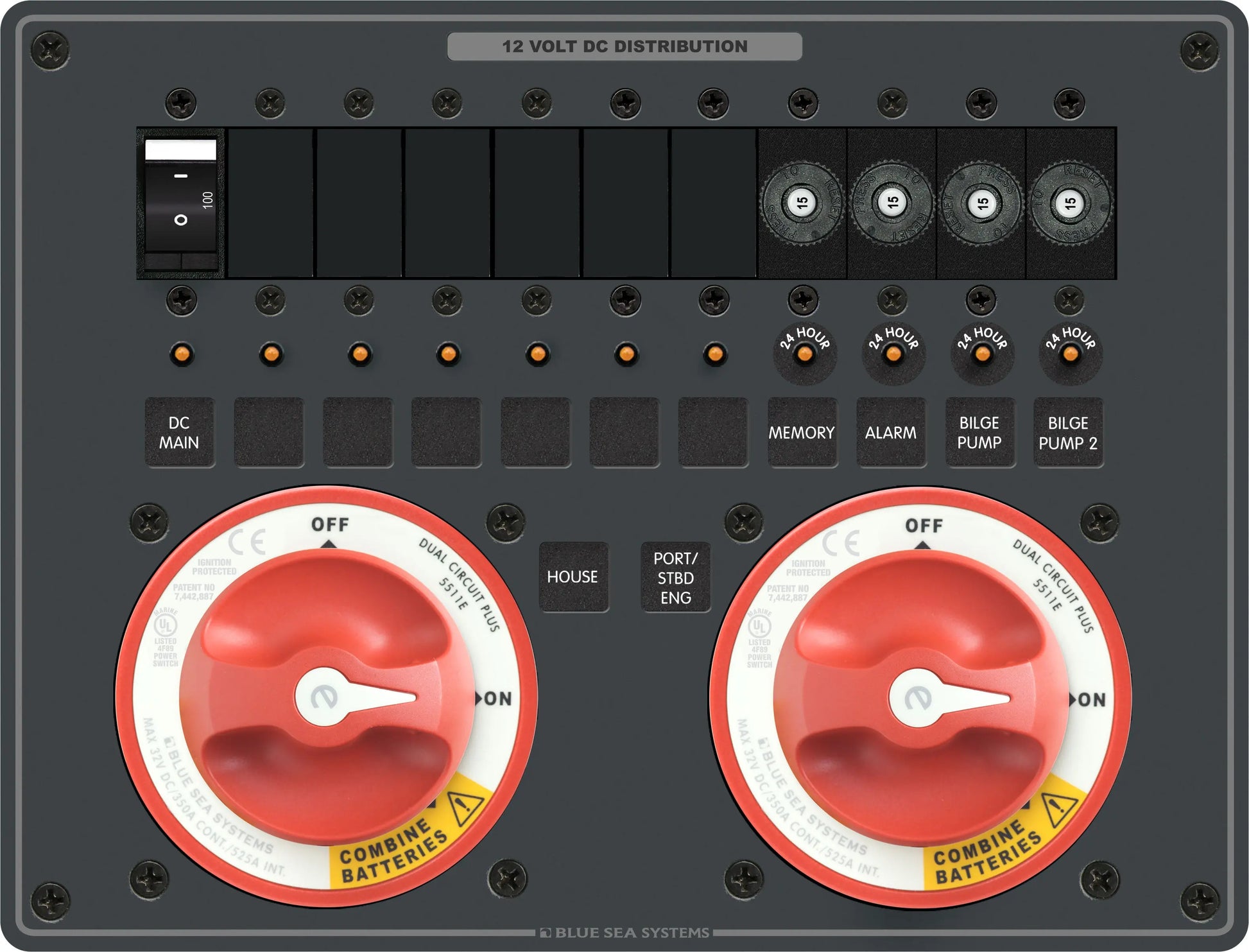

Blue Sea Systems Triple Battery Bank Management Panel

• Isolates the Engine circuit from the House circuit


• Allows emergency cross connect between isolated battery banks


• Protects electronics from sags and spikes caused by engine cranking

Positions
11

Nominal Voltage
12V DC, 24V DC

Maximum Voltage
32V DC

Continuous Rating
350A

Intermittent Rating
525A (5 min)

Cranking Rating 10 sec
1000A

Cranking Rating 1 min
750A

Height
8.00in (203.2 mm)

Depth
3.50in (88.9 mm)

Weight
4.42lb (2 kg)
