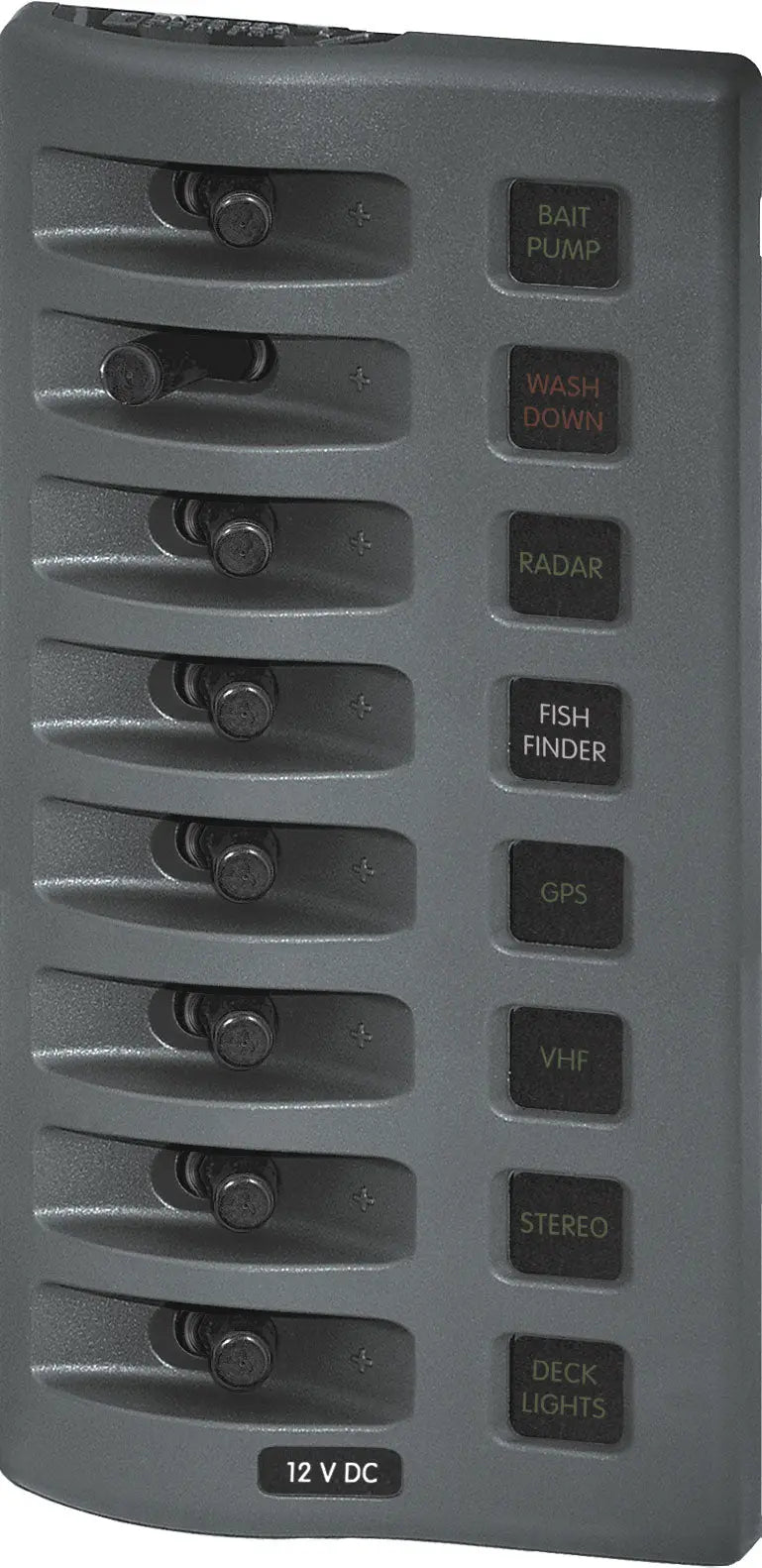

Blue Sea Weather Deck Panel 12v 8 Gang Fuse Panel

Blue Sea Weather Deck Panel: Reliable 12V 8 Gang Fuse Panel Solution

Blue Sea Weather Deck Panel 12v 8 Gang Fuse Panel

Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel - Gray 8 Positions

Model: 4308-BSS

• Panel front rated IP67 when properly mounted with watertight mounting gasket
• IP67 - protected against immersion up to 1 meter for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting circuit for remote switching and dimming
• Available in 2, 4, 6, and 8 circuit models
• Each panel can be mounted in four different orientations
• Integrated ATO/ATC fuse based circuit protection
• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Specifications

WeatherproofWaterproof

Positions
8

Nominal Voltage
12vDC

Circuit Protection
Fuse

Maximum Amperage
15A @ 12V DC (per circuit)

Panel Cumulative Rating
100A

Backlit Label
Bicolored LED

Backlighting Amperage
10mA /Illuminated Circuit

Backlighting Voltage
12V DC

Material
Reinforced Polycarbonate

Dimensions H x W x D
7.7in x 3.88in x 2.50in

Durable Design for Harsh Marine Environments

The Blue Sea Weather Deck Panel is expertly engineered to withstand harsh marine conditions. Constructed with rugged materials, this 12V 8 gang fuse panel resists corrosion, moisture, and UV exposure, making it ideal for use on boats and outdoor applications. Its weather-resistant housing ensures reliable performance even in challenging environments, keeping your electrical systems safely protected and organized.

Efficient Power Distribution and Safety Features

Designed with user safety in mind, the Blue Sea Weather Deck Panel offers efficient power distribution through its 8 gang fuse setup. Each circuit is individually fused, preventing electrical overloads and potential damage to your devices. The panel’s clear labeling and organized layout simplify installation and maintenance, ensuring reliable circuit control for your 12V systems.

Easy Installation and Versatile Applications

The Blue Sea 12V 8 Gang Fuse Panel features a compact and versatile design that fits easily into various applications. Whether for marine vessels, RVs, or outdoor utility vehicles, this panel provides a straightforward installation process with widely compatible fuse sizes. Its modular construction allows for scalability, giving you the flexibility to expand your electrical system as needed.
