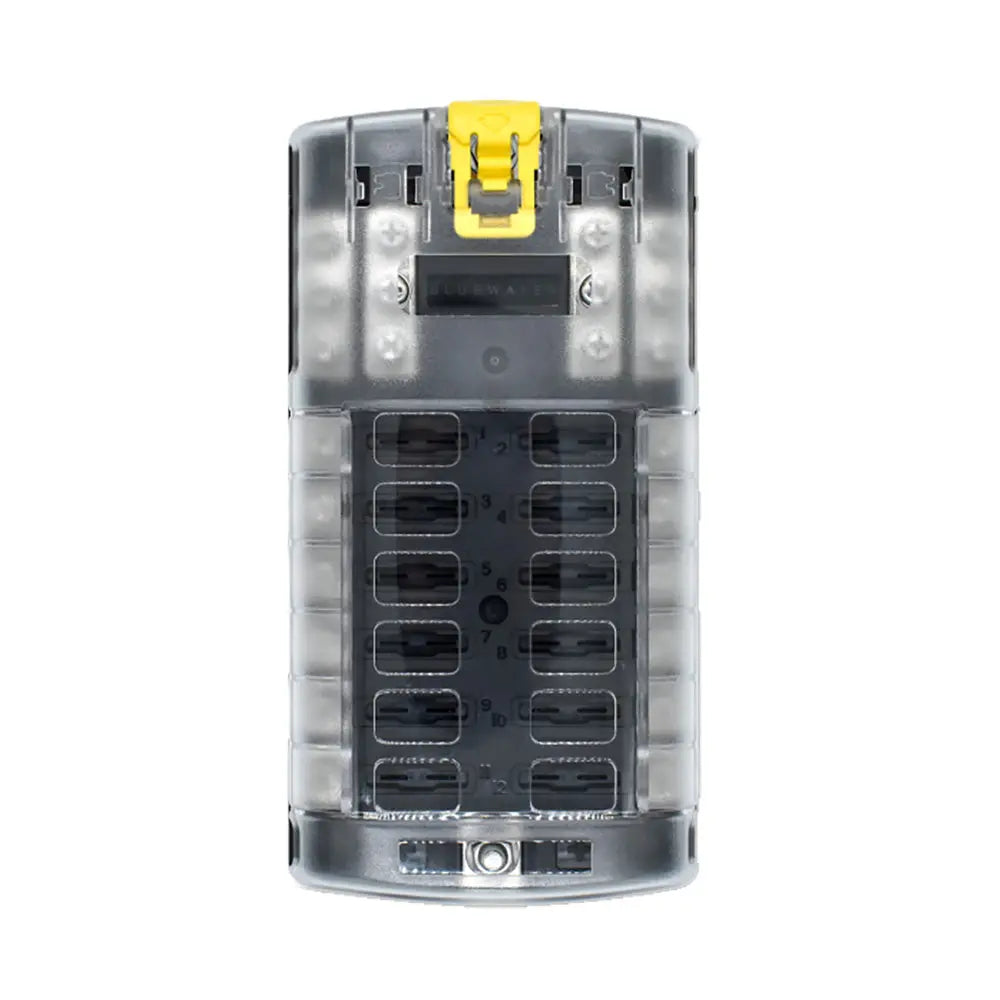

Bluewater 12 Position Fuse Block ATC with Yellow Slide for Marine and RV Power Systems

12 Position Fuse Block ATC with Yellow Slide

This 6 and 12-position marine fuse block offers a clean, organized solution for managing low-voltage electrical circuits in boats, RVs, and off-grid systems. Designed to centralize and protect up to 12 independent circuits, it provides dependable circuit separation for complex power layouts.

Rated for 48V DC systems and up to 100A of input current, the block uses M5 threaded studs for the main input and M4 threaded studs for outputs, supporting up to 25A per circuit. Its compatible with 88 Series breakers.

Built with stainless steel hardware, nickel-plated copper conductors, and a tough polycarbonate body, this marine fuse block is made to withstand demanding environments. Mounting is straightforward with 0.1750 holes, spaced at 3.709 H x 2.331 W for the 6-position model and 5.285 H x 2.325 W for the 12-position version.

Whether youre building a new power system or upgrading an existing one, this fuse block delivers professional-grade performance and a tidy, serviceable layout.

Specifications:

• Max Voltage: 48V DC
• Input Current: 100A
• Breaker Type: 88 Series/BW 38 Series
• Input Terminal Rating: M5 Threaded Studs (100A max)
• Output Terminal Rating: M4 Threaded Studs (25A max)
• Material: Stainless Steel/Nickel-plated Copper/Polycarbonate

Installation:

• M5 main connecting studs
• Mounting Holes: 0.1750
• Distance Between Mounting Holes:
• 6 Position: 3.709 H / 2.331 W
• 12 Position: 5.285 H / 2.325 W

The Bluewater Part Number 3200-3003-012 12 Position Fuse Block ATC with Yellow Slide offers a robust and organized solution for managing multiple low-voltage circuits in marine, RV, and off-grid applications. Constructed with stainless steel hardware, nickel-plated copper conductors, and a durable polycarbonate body, this fuse block is engineered to withstand harsh environments and provide reliable electrical protection. Its design allows for easy installation and maintenance, making it an ideal choice for both new power system setups and upgrades to existing configurations. The fuse block supports up to 12 independent circuits, each rated for 25 amps, with a total input capacity of 100 amps at 48 volts DC, ensuring ample power distribution for demanding electrical setups. The main input terminals feature M5 threaded studs for secure connections, while the output terminals use M4 threaded studs, compatible with 88 Series breakers for flexible circuit protection. Mounting is straightforward with pre-drilled holes spaced for easy attachment, and the compact footprint helps keep wiring neat and accessible. Whether powering boat systems, RV electrical panels, or off-grid solar setups, this fuse block provides a professional-grade, organized, and dependable solution for your electrical needs.

Features:

• Supports up to 12 independent circuits for organized power management

• Rated for 48V DC systems with a maximum input current of 100A

• Compatible with 88 Series and BW 38 Series breakers for circuit protection

• Durable construction with stainless steel hardware, nickel-plated copper conductors, and polycarbonate body

• Easy to install with mounting holes spaced for secure attachment
