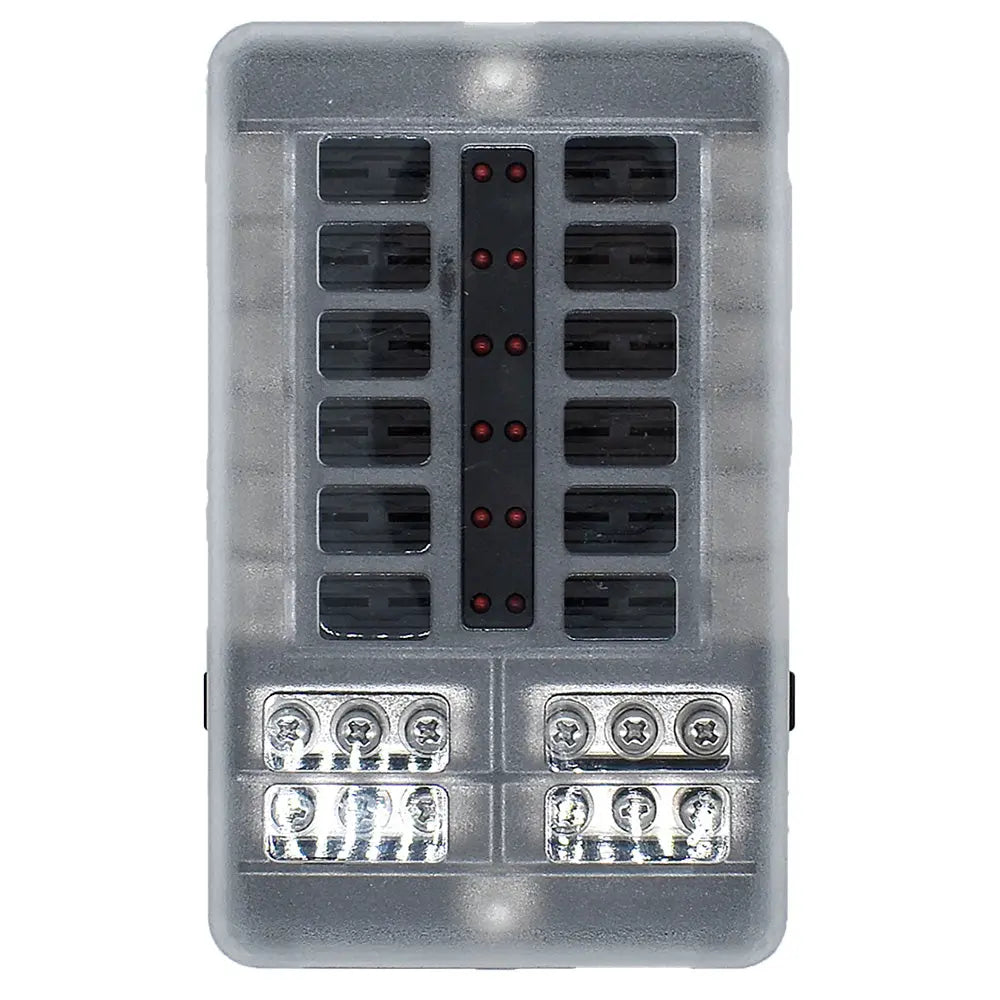

Bluewater 12 Position Fuse Block with LEDs - 48V DC Circuit Protection for Marine and Mobile Applications

12 Position Fuse Block with LEDs

This 12-position led fuse block is built to simplify circuit protection and troubleshooting in 48V DC systems. Each circuit supports up to 30A, and an integrated LED indicator alerts you the moment a fuse blowsso you can identify and address issues at a glance.

Designed for clean, centralized wiring in marine or mobile environments, this led fuse block handles up to 100A of input current through M5 threaded studs, with M4 output studs rated for 25A max per circuit. Its compatible with 88 Series breakers.

The housing is made from stainless steel, nickel-plated copper, and polycarbonate, ensuring long-term durability and corrosion resistance. Mounting is simple with 0.1695 holes, spaced 4.725 H x 2.725 W for the 12-position block.

Whether youre upgrading or building new, this LED fuse block delivers a clean, professional, and easy-to-maintain solution.

Specifications:

• Max Voltage: 48V DC
• Input Current: 100A
• Breaker Type: 88 Series/BW 38 Series
• Input Terminal Rating: M5 Threaded Studs (100A max)
• Output Terminal Rating: M4 Threaded Studs (25A max)
• Material: Stainless Steel/Nickel-plated Copper/Polycarbonate

The Bluewater Part Number 3200-0001-012 12-position fuse block offers a reliable and organized solution for circuit protection in 48V DC systems. Designed with durability in mind, this fuse block features an integrated LED indicator that illuminates when a fuse blows, enabling quick identification and troubleshooting. Its 12 circuits support up to 30A each, making it suitable for a range of marine, RV, and mobile equipment where efficient circuit management is essential. The fuse block is capable of handling up to 100A of input current through M5 threaded studs, ensuring robust power distribution in demanding environments.

The housing is constructed from stainless steel, nickel-plated copper, and polycarbonate, providing excellent corrosion resistance and long-term durability in harsh marine or mobile conditions. Mounting is straightforward with pre-drilled holes spaced at 4.725 inches height and 2.725 inches width, accommodating easy installation in tight spaces. The fuse block is compatible with 88 Series and BW 38 Series breakers, offering flexibility for various circuit protection needs.

This fuse block is an essential component for professionals and enthusiasts seeking a clean, professional, and easily maintainable wiring solution. Whether replacing an existing fuse panel or building a new electrical system, the Bluewater 12-position fuse block ensures reliable performance and simplified circuit management in demanding environments.

Features:

• Supports 12 circuits with LED indicators for real-time fuse status

• Maximum input current of 100A via M5 threaded studs

• Supports up to 30A per circuit for effective protection

• Constructed from stainless steel, nickel-plated copper, and polycarbonate for durability and corrosion resistance

• Compatible with 88 Series and BW 38 Series circuit breakers

• Simple mounting with pre-drilled holes spaced for secure installation

• Designed for 48V DC systems in marine and mobile environments
