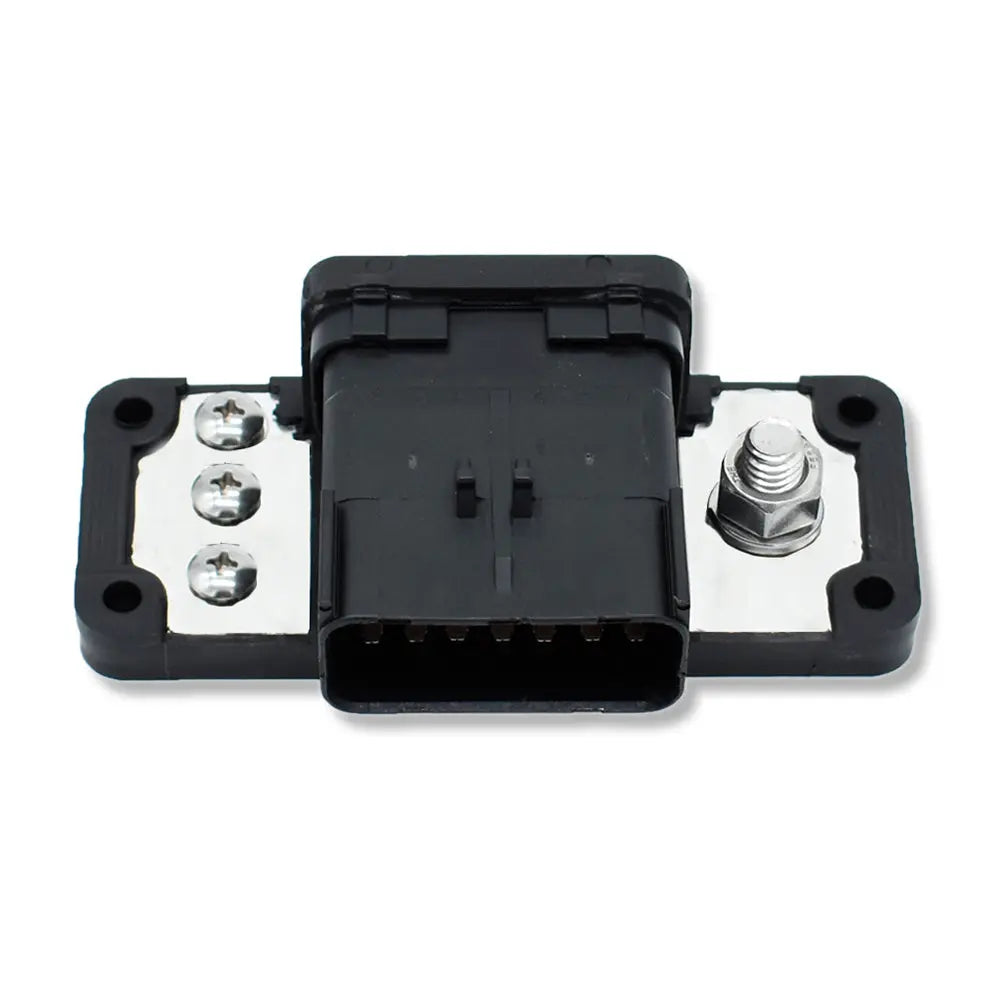

Bluewater 14-Position FCI Busbar with 3 Screw 1 Post - Heavy Duty Marine Electrical Connection

14 Position FCI Busbar 3 Screw 1 Post

Designed for use withFCI connectors, this sealed busbar supports modular, secure electrical connections in harsh environments. Its ideal for marine, heavy equipment, or mobile installations where vibration and water ingress are concerns.

TheFCI busbarprovides excellent corrosion resistance and maintains stable conductivity even under constant exposure to moisture and salt spray. Its rugged construction minimizes maintenance and ensures long-term reliability.

Compact and easy to install, the FCI busbar streamlines wiring while protecting critical power circuits in demanding applications.

Specifications:

• Current Rating: 150A@ 48V DC
• Number of Positions: Male 14 Positions
• Wire Gage Range: 20 AWG to 12 AWG
• Terminal Size: 2.8 mm
• Housing Material: Polyamide (PA)
• Sealing Protection: IP68
• Temperature Rating of Material: -40C to+ 125C
• Input Connector: Male 54201415
• Mate Connector: Female 54201411
• Plate: 2mm thick Copper with tin-plated
• Stud: Stainless Steel 3/8
• Base: RETPU Overmolded
• Mounting Holes (4): 0 0.20

The Bluewater 14-Position FCI Busbar with Part Number 2314-B-001 is engineered for reliable electrical distribution in demanding environments. Designed for use with FCI connectors, this sealed busbar features a compact and rugged construction that ensures secure, modular connections even in harsh conditions. Its corrosion-resistant materials and IP68 sealing make it ideal for marine applications, heavy equipment, and mobile setups where exposure to water, salt spray, and vibration are common concerns. The busbar's durable polyamide housing and stainless steel studs provide long-term stability and corrosion resistance, reducing maintenance needs and ensuring consistent performance over time. The copper plates are tin-plated for enhanced conductivity and protection against oxidation, supporting stable current flow up to 150 amps at 48 volts DC. The busbar accommodates wire gauges from 20 AWG to 12 AWG, offering versatile wiring options for various power distribution needs. Easy to install, it features four mounting holes and a base made from RETPU overmolded material for added strength. The input connector is a male 54201415, with a compatible female 54201411 mate connector, facilitating quick and secure connections. Its temperature rating from -40°C to +125°C ensures dependable operation across a wide temperature range, making this busbar suitable for both indoor and outdoor applications. Whether used in marine power systems or industrial equipment, the Bluewater 14-position busbar provides a robust, corrosion-resistant solution that enhances electrical system reliability and simplifies wiring management.

Features:

• Current Rating: 150A at 48V DC for reliable power distribution

• Number of Positions: 14 male positions for versatile wiring

• Wire Gage Range: Supports 20 AWG to 12 AWG conductors

• Terminal Size: 2.8 mm for secure connections

• Housing Material: Durable polyamide (PA) with IP68 sealing

• Corrosion Resistance: Excellent protection against moisture and salt spray

• Construction: Copper plates with tin plating for enhanced conductivity

• Stud Material: Stainless steel 3/8 inch for durability and strength

• Temperature Range: Operates reliably from -40°C to +125°C

• Mounting: Four mounting holes with 0.20-inch diameter for easy installation

• Input and Mate Connectors: Male 54201415 and Female 54201411 for quick setup

• Base: RETPU overmolded for added robustness and stability
