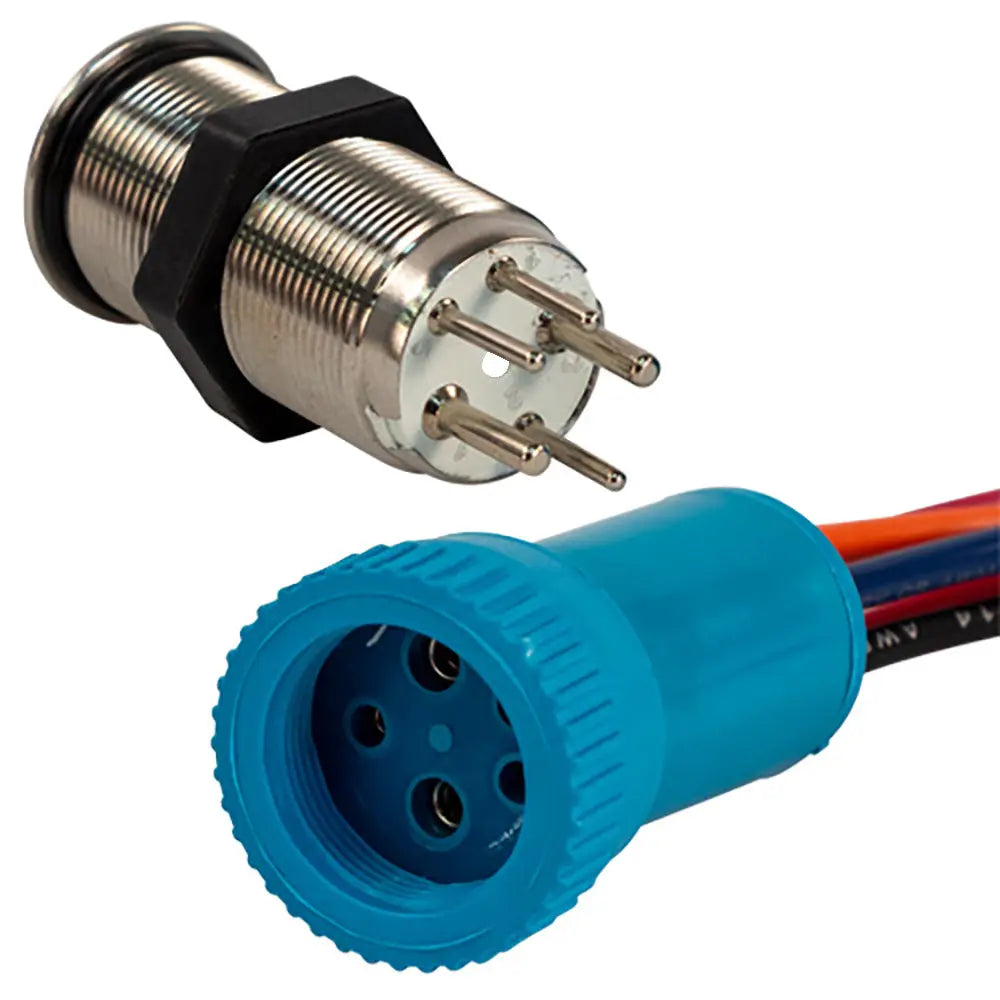

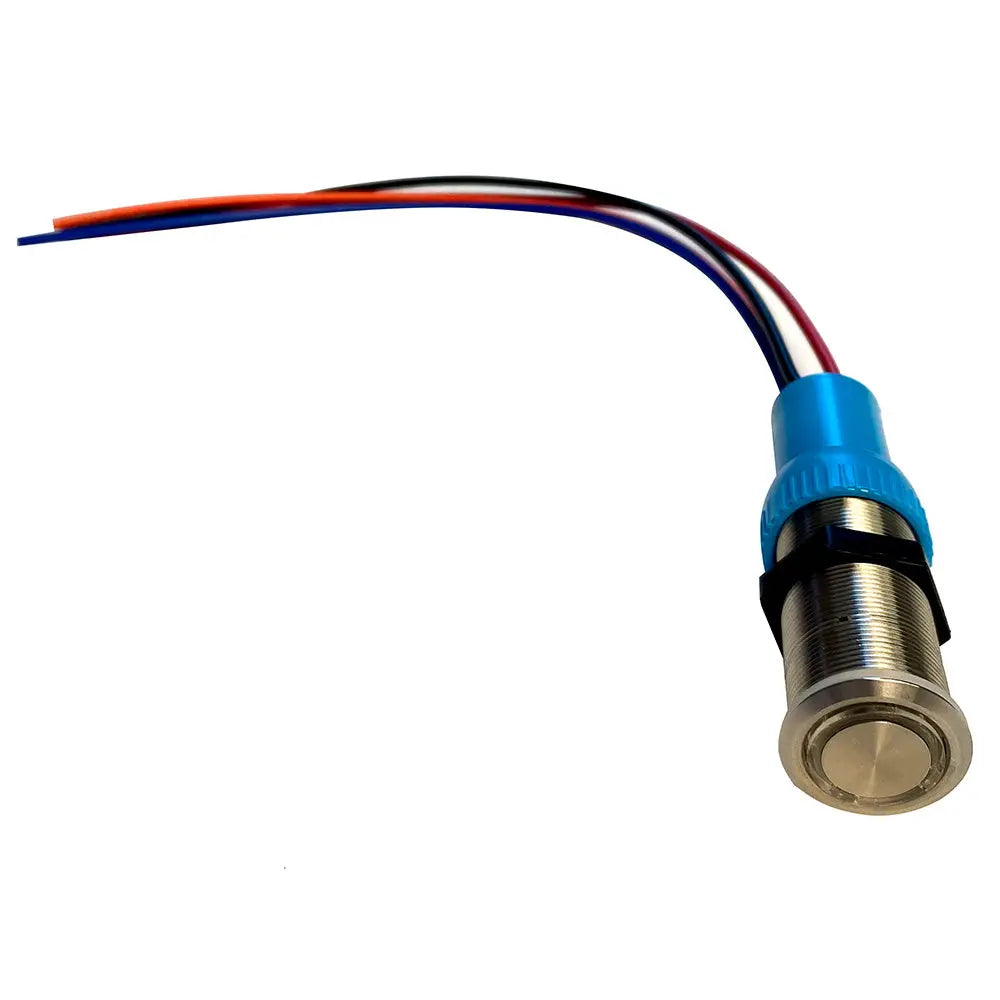

Bluewater 19mm In-Rush Push Button Switch - Nav/Anchor Off/On/On with Blue, Green, and Red LED Indicators

19mm In-Rush Push Button Switch - Nav/Anchor Off/On/On - Blue/Green/Red LED - 4' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a Nav/Anc" contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Nav/Anchor
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: White dot
• Switch Rating: 15A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

• Drill a 19mm hole into any material up to 6mm thick
• Connect the 3 contacts for the button (color-coded for safety and convenience)
• Connect the 2 contacts for the LED

Enhance your dashboard's functionality with the Bluewater 19mm In-Rush Push Button Switch, part number 9057-3114-4. Crafted from durable stainless steel, this switch delivers a sleek, modern appearance while providing reliable performance. Its waterproof IP69K rating ensures protection against dust and high-pressure water, making it ideal for demanding marine or industrial environments. The switch features a 19mm diameter and can be easily installed by drilling a single hole into materials up to ¼ inch thick. The included gasket guarantees a secure, water-tight fit, maintaining the integrity of your control panel.
The switch's unique Nav/Anchor contact configuration allows for versatile functionality, with distinct LED indicators that provide clear visual cues. When in the off position, the switch illuminates with a blue LED, changing to green when first turned on, and red when activated for the second function. These backlit LEDs ensure excellent visibility in low-light conditions, facilitating safe and efficient operation at night. The switch's rated capacity of 15A at 12 or 24VDC makes it suitable for controlling various electrical loads, from lighting to auxiliary equipment.
Installation involves connecting the three color-coded contacts for the switch operation and the two contacts designated for the LED lighting. The 4-foot lead provides flexibility for wiring, reducing installation time and complexity. With a mechanical lifespan of approximately 50,000 cycles and an electrical lifespan of 10,000 cycles, this switch is built for long-lasting, repetitive use. Whether upgrading a vessel, vehicle, or industrial machine, the Bluewater 19mm In-Rush Push Button Switch offers a reliable, stylish control solution that seamlessly integrates into your existing setup.

Features:

• Waterproof IP69K rating ensures protection against dust and high-pressure water

• Stainless steel body provides durability and modern appearance

• Backlit LEDs in blue, green, and red for clear night visibility

• Easy installation with a simple 19mm hole and included gasket

• Rated for 15A at 12 or 24VDC to handle various electrical loads

• Mechanical life of approximately 50,000 cycles for durability

• Electrical life of around 10,000 cycles for reliable performance

• 3 color-coded contacts for versatile switching functions

• 4-foot wiring lead for flexible installation
