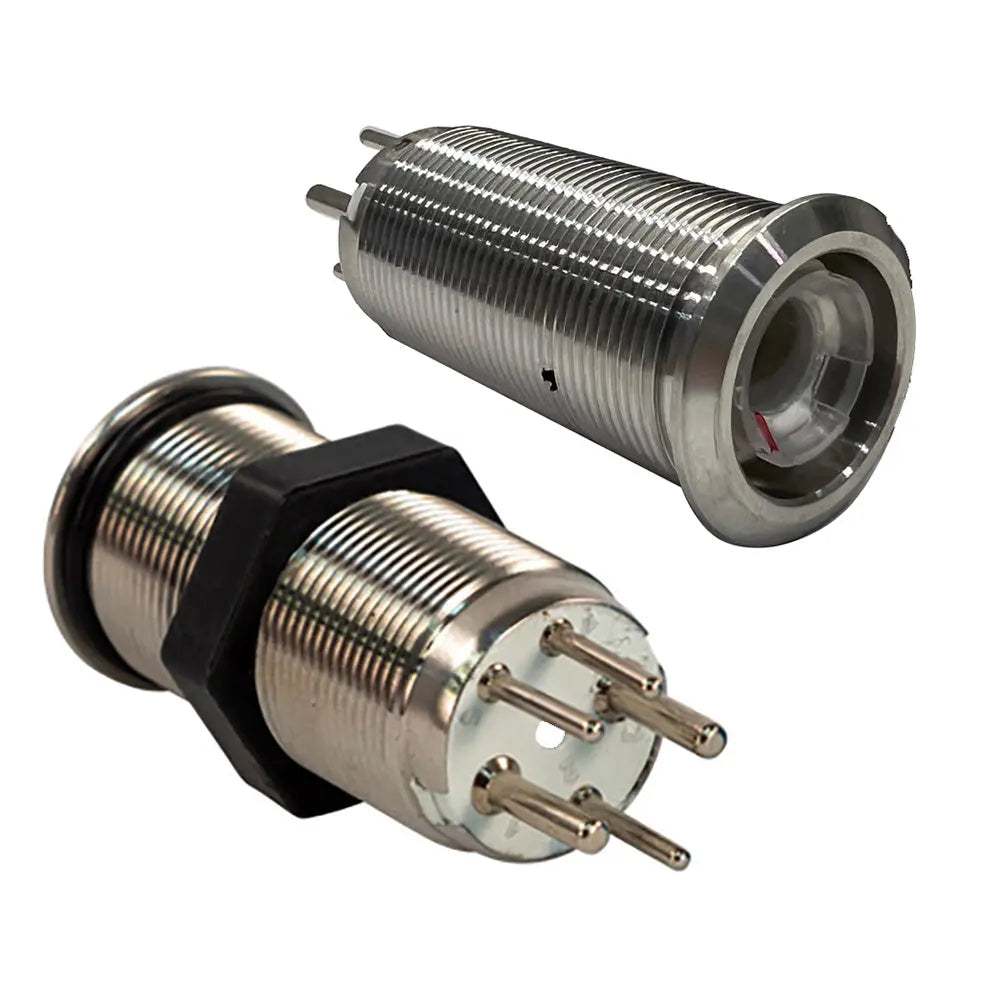

Bluewater 19mm Inrush Push Button Switch Nav/Anchor Off/On/On with Blue/Green/Red LEDs

19mm Inrush Push Button Switch Nav/Anchor Off/On/On - Blue/Green/Red LED - Switch Body Only

The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.

This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.

This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.

Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.

Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.

Specifications:

• Switch Rating: 15A/12-24VDC
• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
• Mechanical Life: 50,000 Cycles
• Electrical Life: 10,000 Cycles
• Dimensions: View Dimensional Drawings
• Material: Nickel Plated Brass/ Stainless Steel
• LED Color: Blue/Green/Red

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.

The Bluewater 9057-3114 19mm Inrush Push Button Switch is a robust marine-grade control switch designed for demanding environments and limited panel space. Crafted from corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating, this switch is ideal for marine applications exposed to salt spray, washdowns, and harsh weather conditions. Its compact design allows for easy installation in tight spaces, making it a practical choice for boat builders and marine technicians seeking durability and reliable performance.
Featuring intuitive LED indicators, the switch provides clear visual feedback with a soft blue backlight and a bright red active state indicator. This ensures quick and easy status recognition even in low-light conditions. Rated for 15 amps in single channel or 7.5 amps per channel in dual configuration, the switch handles high current loads while maintaining consistent operation. The fully detachable actuator can be customized to suit different styles and preferences, offering versatility for various control panel designs.
Installation is straightforward: drill a 19mm hole into any material up to ¼ inch thick, connect the three contacts for the button—color-coded for safety—and connect the two contacts for the LED. The switch's durable nickel-plated brass and stainless steel construction ensure longevity and resistance to corrosion. Compact yet powerful, this switch is well-suited for marine, outdoor, and rugged industrial applications where durability and clear feedback are essential.

Features:

• Corrosion-resistant SS316 stainless steel housing for durability

• IP69K waterproof rating suitable for harsh marine environments

• LED indicators with blue backlight and red active indicator for clear status

• Rated for 15 amps in single-channel operation or 7.5 amps per channel in dual configuration

• Detachable, customizable actuator for style preferences

• Simple installation with a 19mm hole and color-coded connections

• Mechanical life of 50,000 cycles and electrical life of 10,000 cycles

• Marine-grade design ideal for saltwater exposure and outdoor use
