SKU:101923

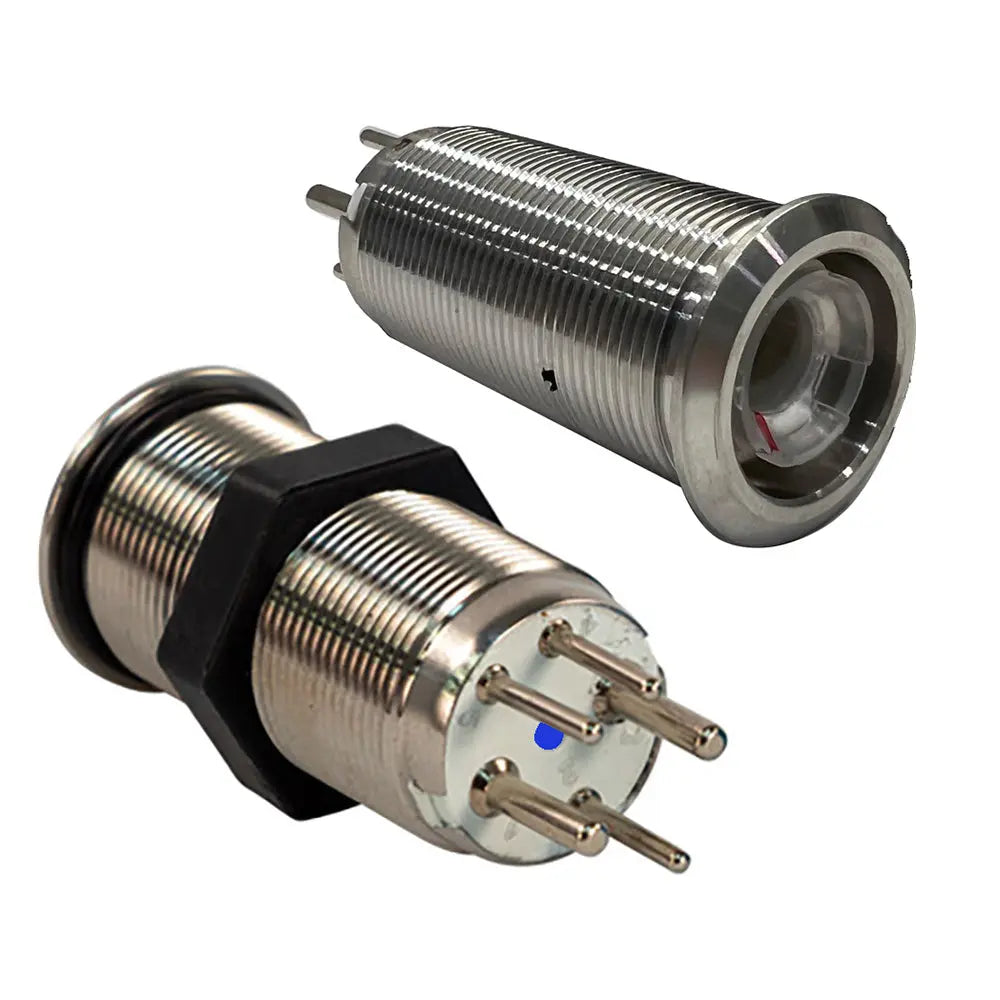

19mm Inrush Push Button Switch Off/On/On - Blue/Green/Red LED - Switch Body Only
The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.
This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.
This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.
Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.
Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.
Specifications:
Installation:
Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
The Bluewater 9057-3113 19mm Inrush Push Button Switch offers a reliable and durable control solution designed for demanding marine and outdoor environments. Encased in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating, this switch is built to withstand harsh conditions such as salt spray, high-pressure washdowns, and exposure to the elements. Its compact size makes it ideal for tight panel spaces where durability and precision control are essential. The switch features a fully detachable actuator that can be customized to match your aesthetic preferences, providing both functionality and flexibility in installation and operation. Equipped with smart LED indicators, the switch supplies clear visual feedback — glowing softly in blue for backlighting and illuminating bright red when active — ensuring quick and intuitive status recognition in any lighting condition. Rated for 15 amps at 12-24VDC, it comfortably handles high current loads required in marine electrical systems, with a mechanical life expectancy of 50,000 cycles and an electrical life of 10,000 cycles, ensuring long-term reliability. The switch's contacts include options for single or dual channels, with configurations supporting 1 NO and 1 NC or 2 NO and 2 NC contacts, making it versatile for various control setups. Easy to install, it requires drilling a 19mm hole into panels up to 6mm thick, connecting the contacts with color-coded wiring for safety and convenience, and sealing the connections securely. Its robust nickel-plated brass and stainless steel construction guarantees resistance against corrosion and mechanical wear, making it suitable for marine, RV, and outdoor applications where dependable operation is critical.
Features:
