SKU:101922

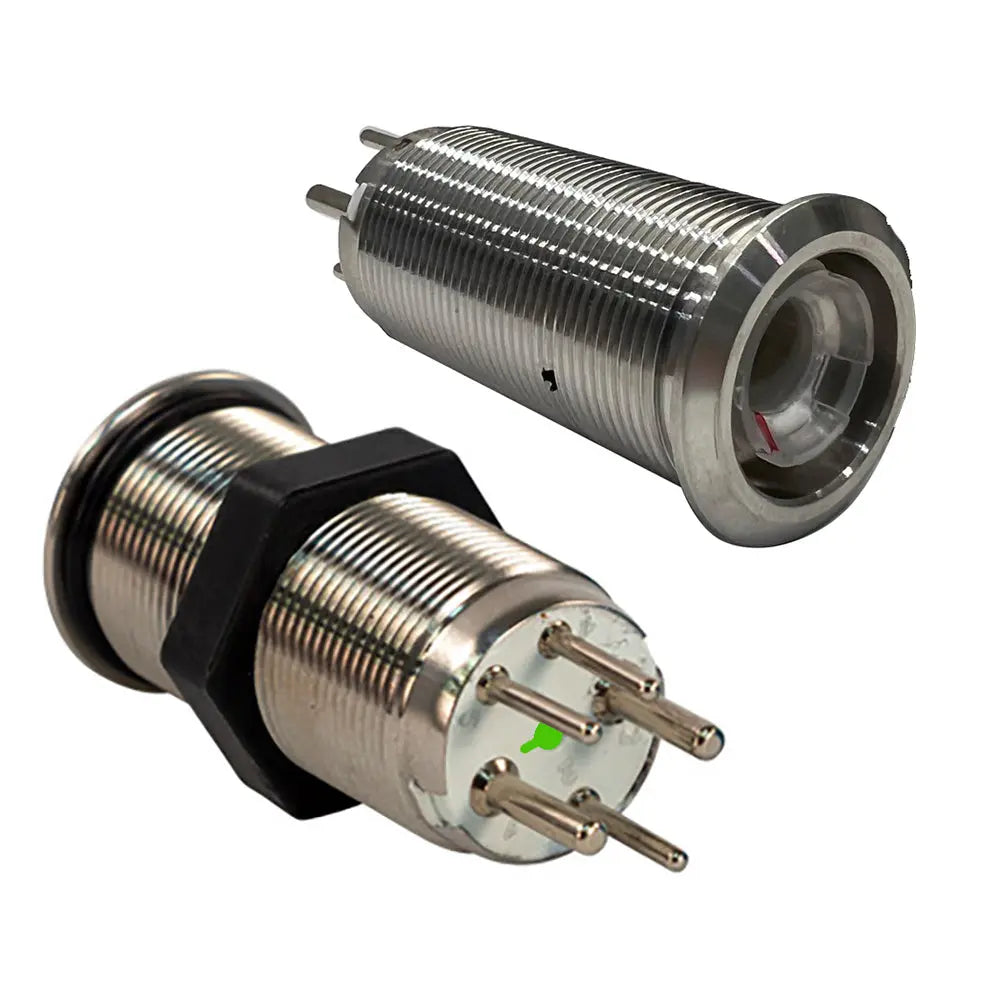

19mm Inrush Push Button Switch Momentary Off(On)(On) - Blue/Red/Green LED - Switch Body Only
The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.
This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.
This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.
Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.
Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.
Specifications:
Installation:
Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
The Bluewater 9057-2123 is a durable, marine-grade 19mm push button switch designed for demanding environments. Encased in corrosion-resistant SS316 stainless steel and sealed to an IP69K rating, this switch offers exceptional resistance against salt spray, washdowns, and harsh outdoor conditions. Its compact size makes it an ideal choice for tight panel layouts where space efficiency and reliability are essential. The switch is suitable for both recreational and commercial marine applications, providing a sturdy control solution that withstands continuous environmental stress and frequent use.
This switch features smart LED indicators with blue backlighting for ease of visibility and red illumination to confirm active status. The LED colors can be customized, offering clear visual feedback in any lighting condition. Rated for 15 amps at 12-24VDC, it handles high current loads with confidence, making it ideal for controlling power in navigation equipment, lighting, or other critical systems onboard boats and outdoor installations. The switch includes a fully detachable actuator that can be customized to match your specific control style or operational needs, ensuring versatility and ease of installation.
Installation is straightforward—simply drill a 19mm hole into a panel up to 6mm thick, connect the three contacts for the switch (color-coded for safety and ease), and connect the two contacts for the LED indicator. Its robust mechanical design ensures a lifespan of up to 50,000 cycles, while electrical durability guarantees around 10,000 operational cycles under frequent use. Constructed from nickel-plated brass and stainless steel, the switch offers long-term performance, even in challenging marine environments. Whether you're a boat builder, marine technician, or involved in outdoor electrical projects, this switch provides a reliable and visually intuitive control option that combines durability, functionality, and safety.
Features:
